Model #:
ZDP486NDTSS
Color:
Stainless Steel

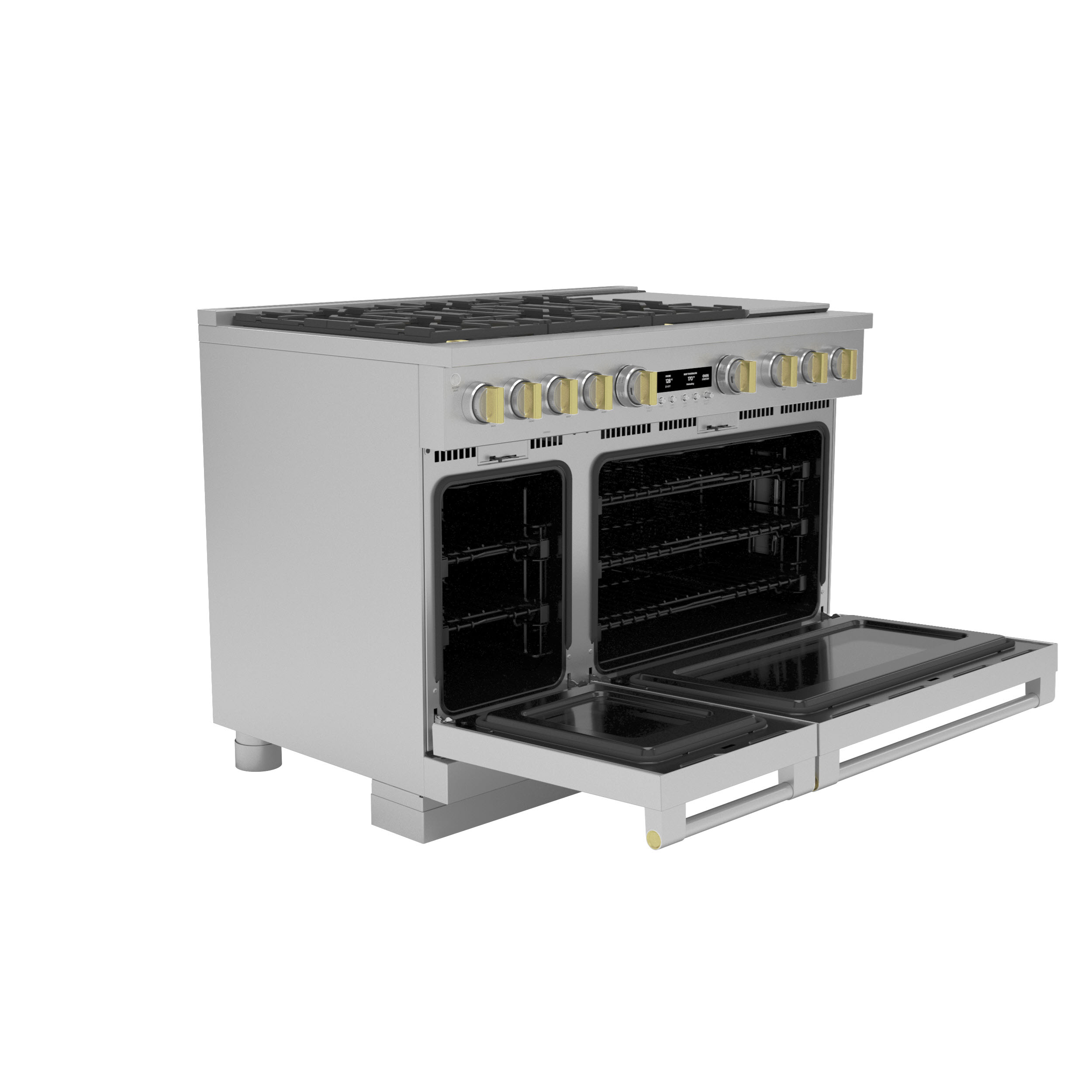

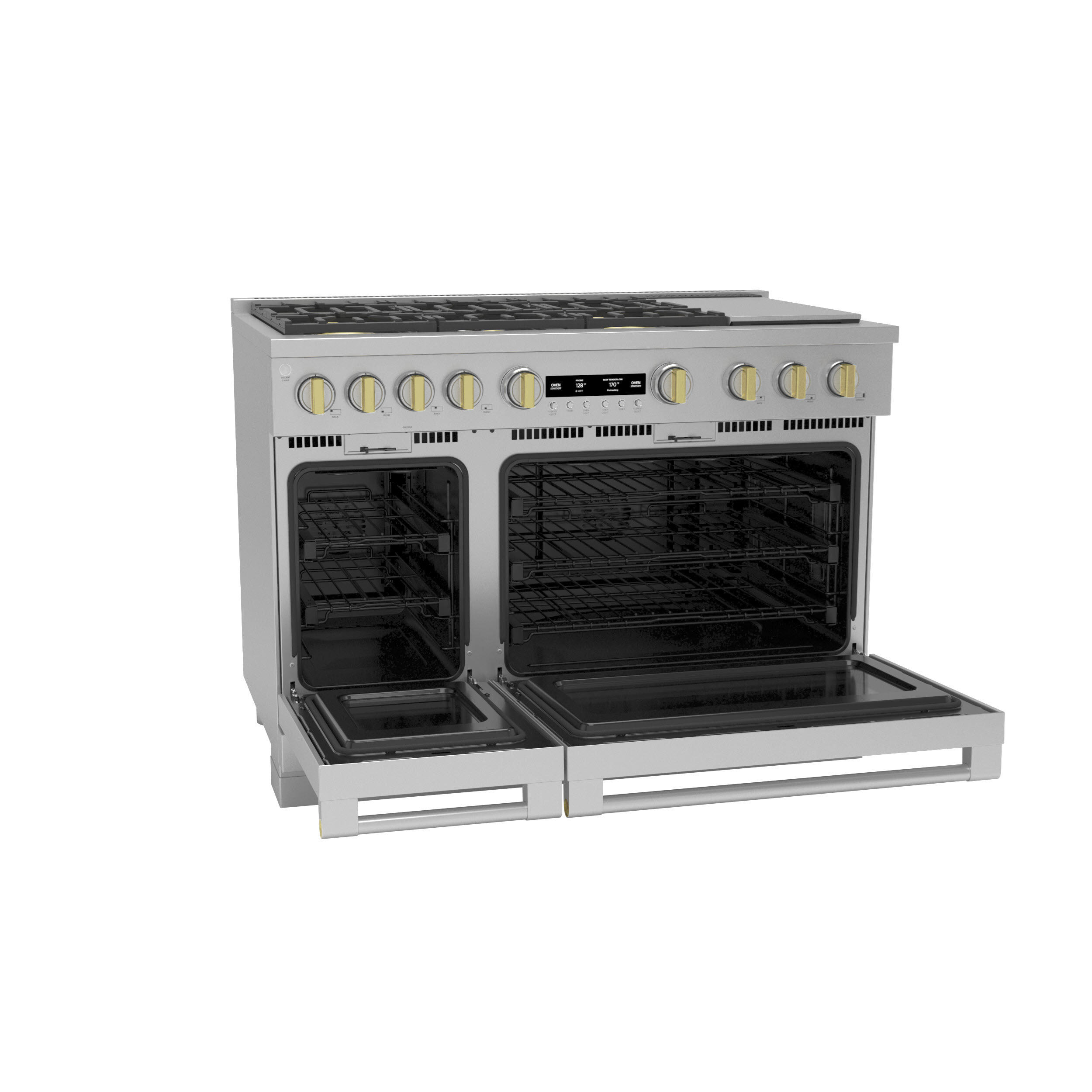

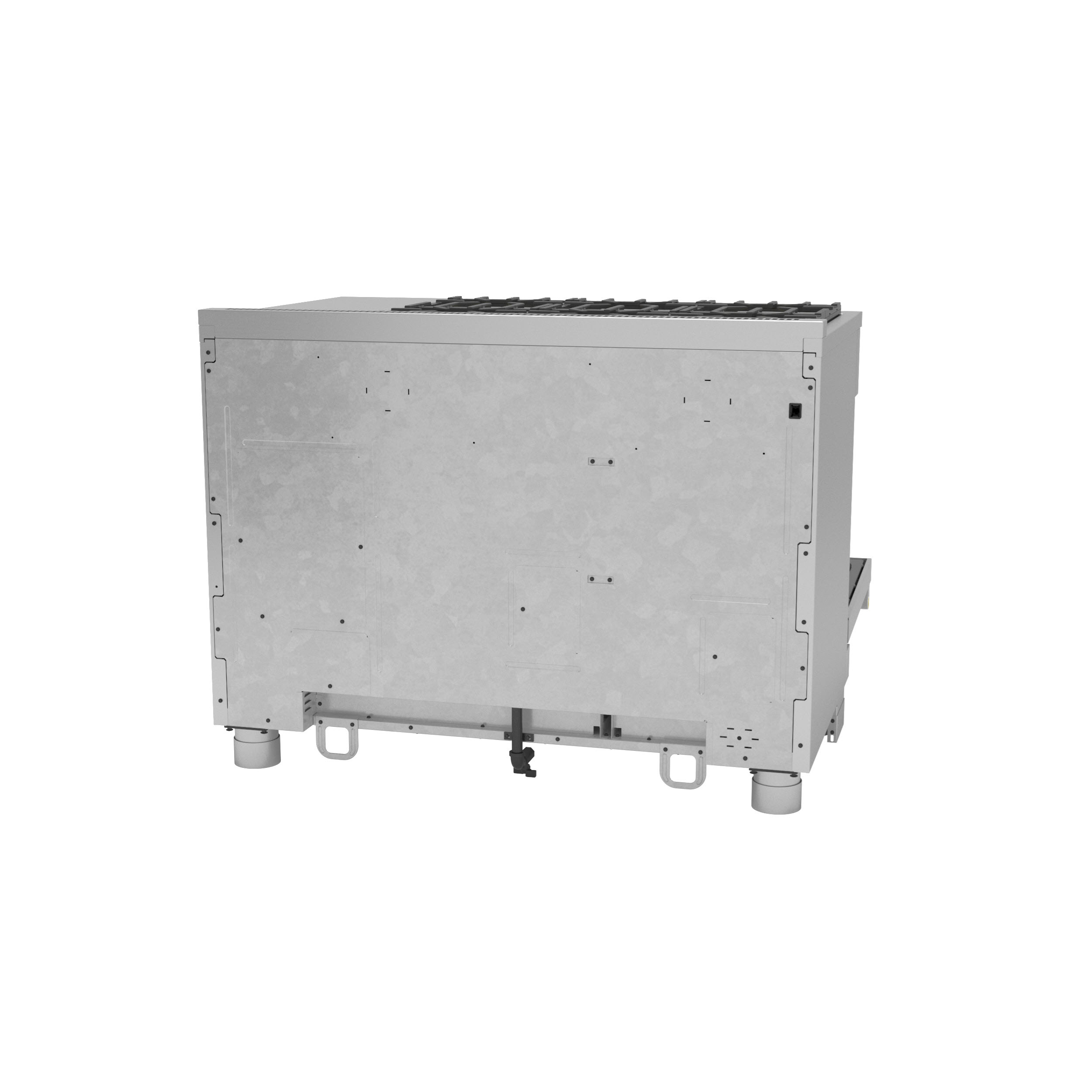

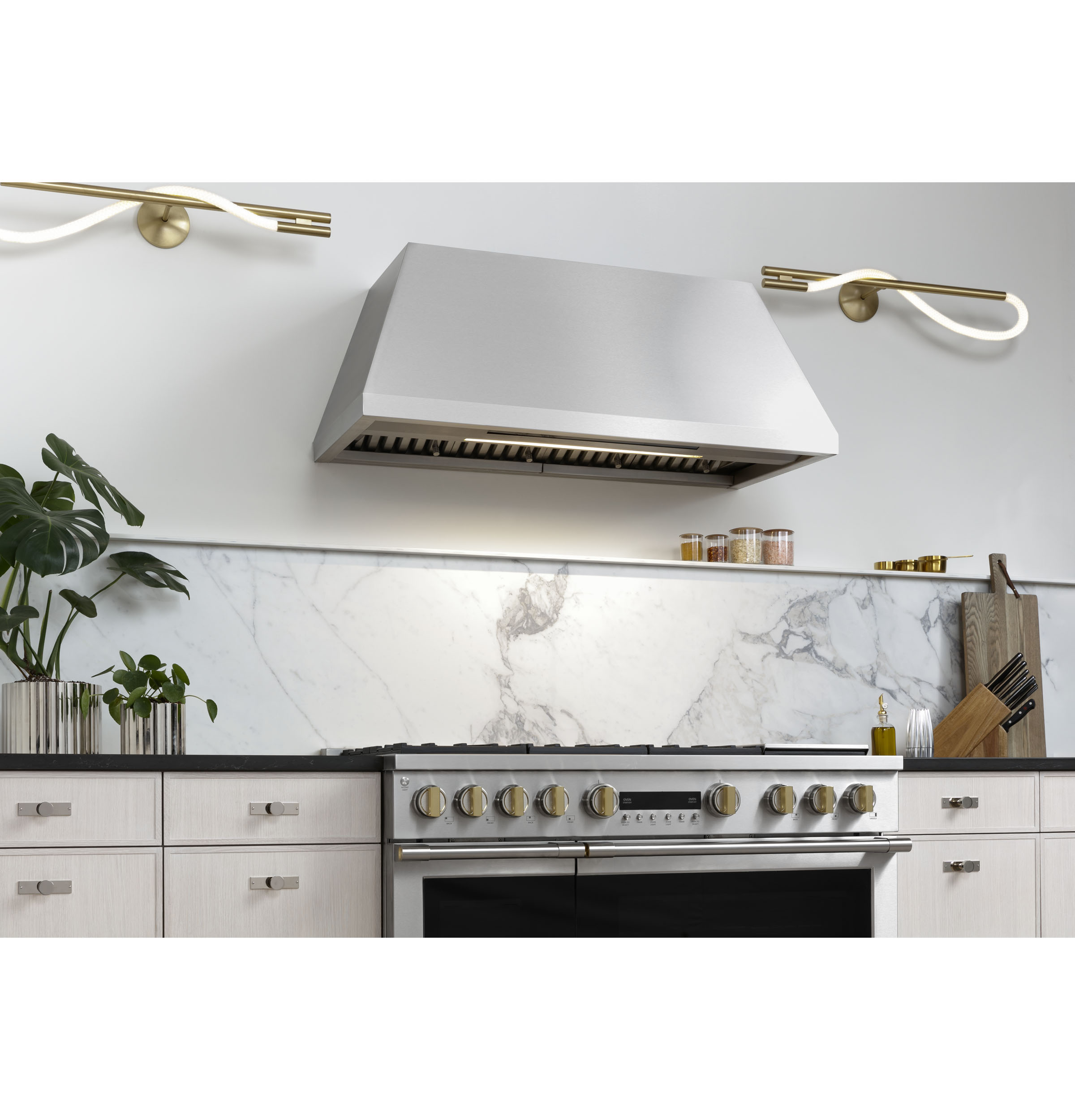

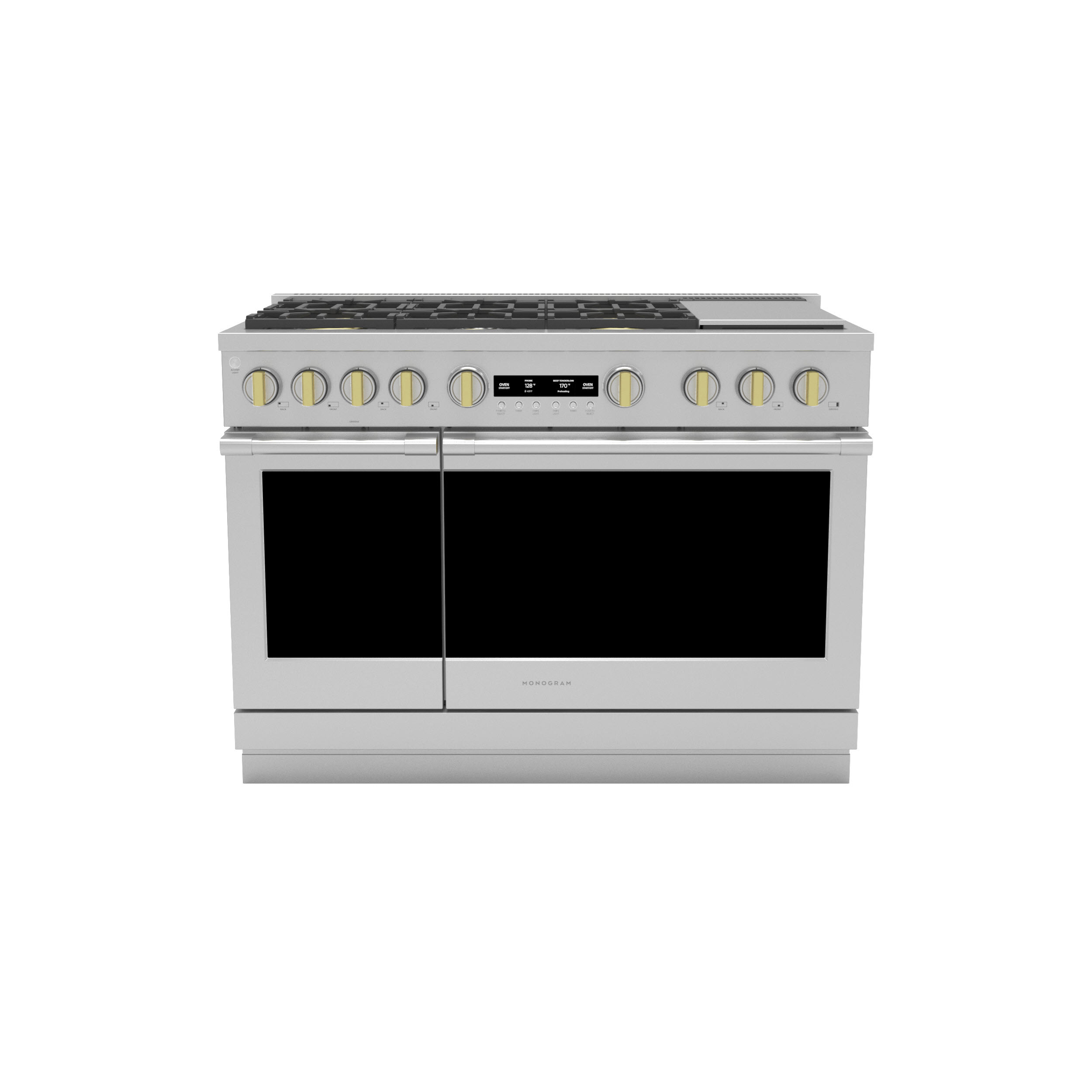

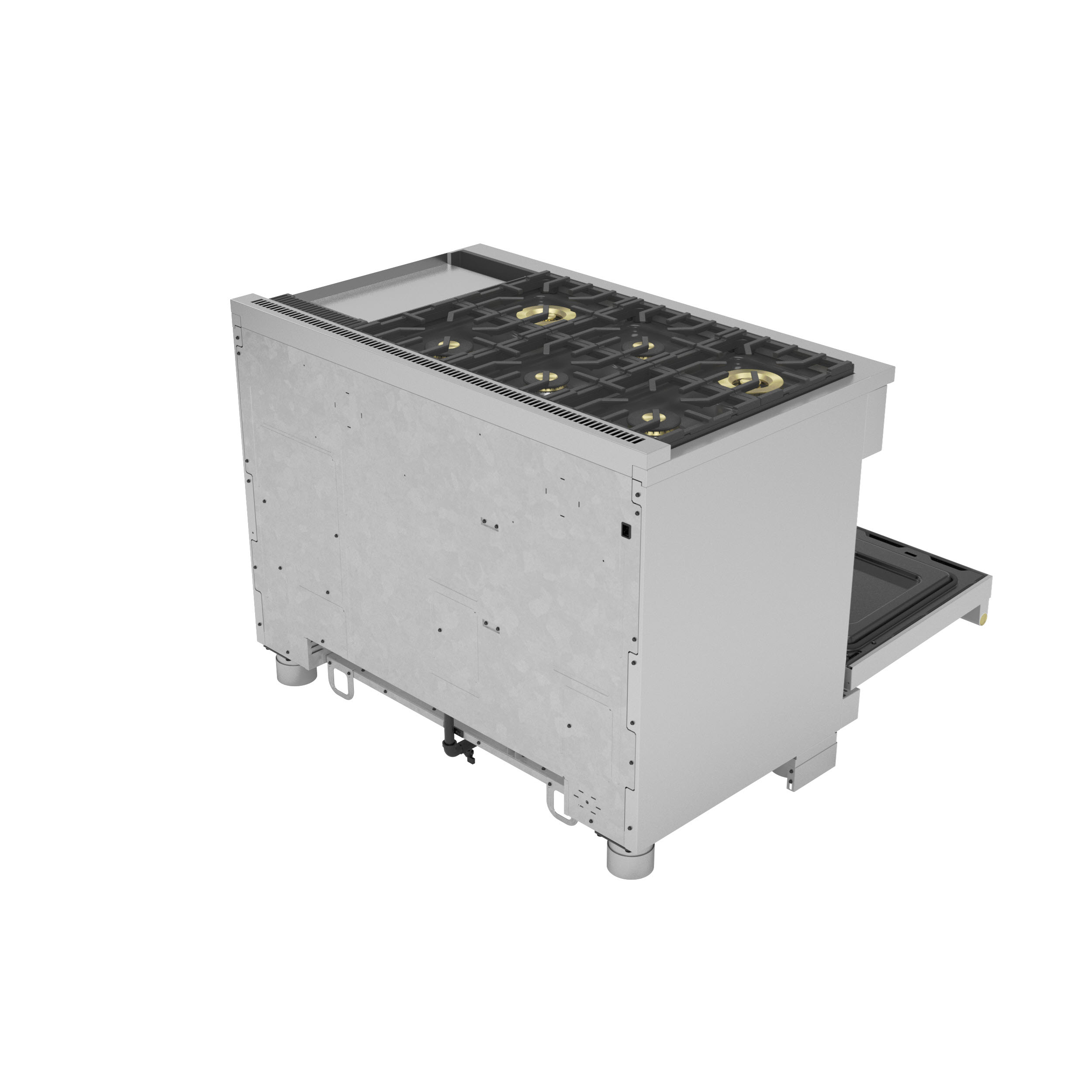

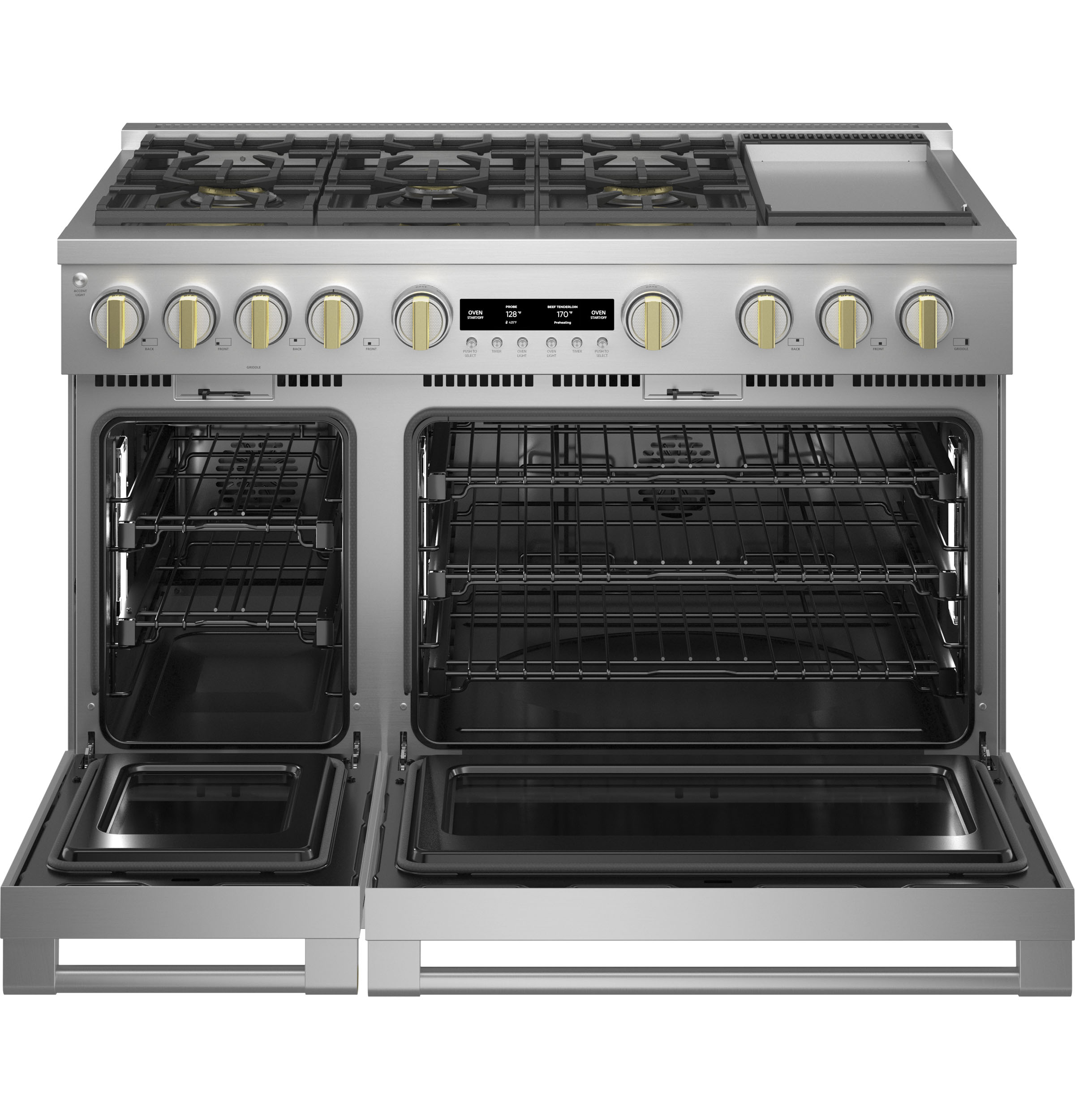

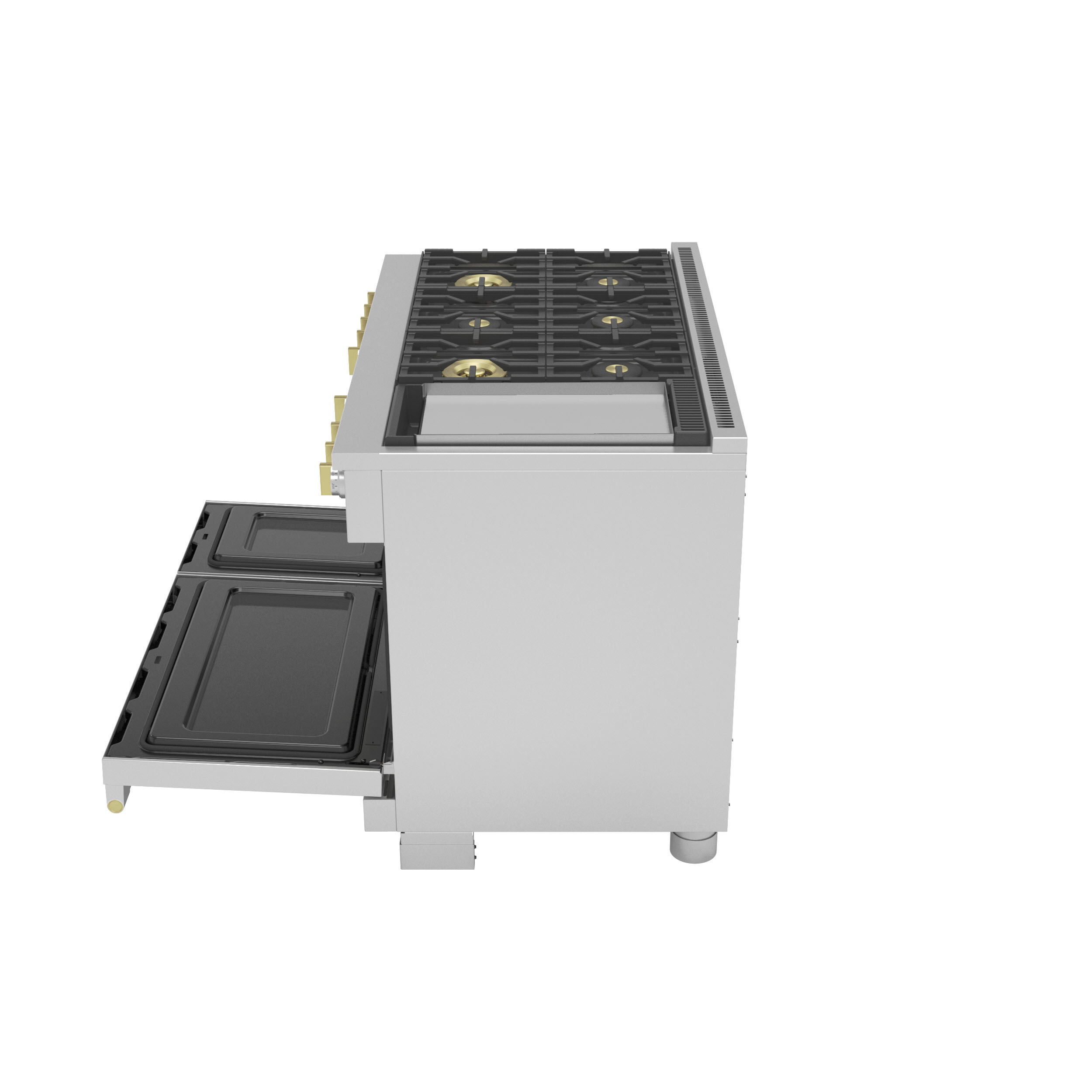

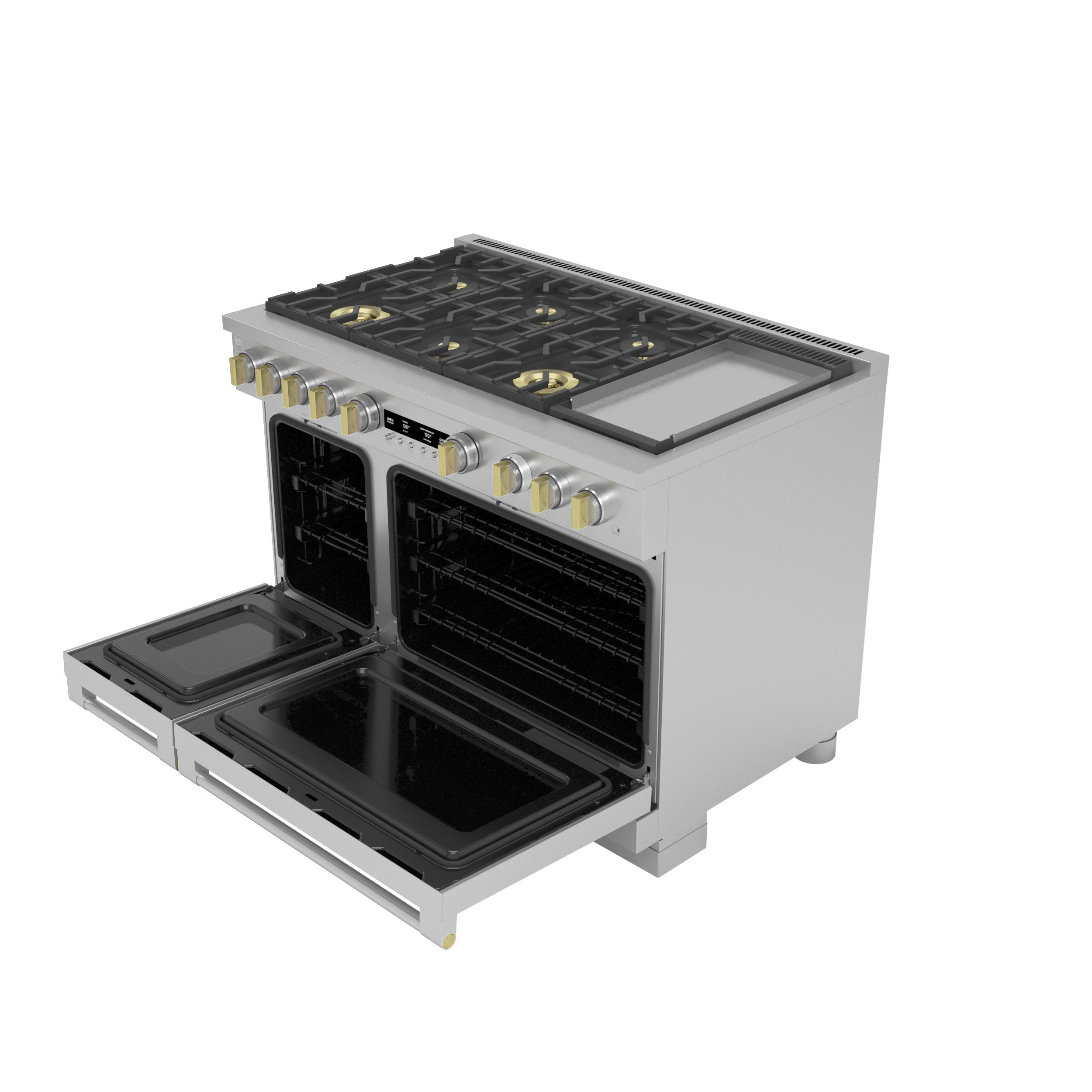

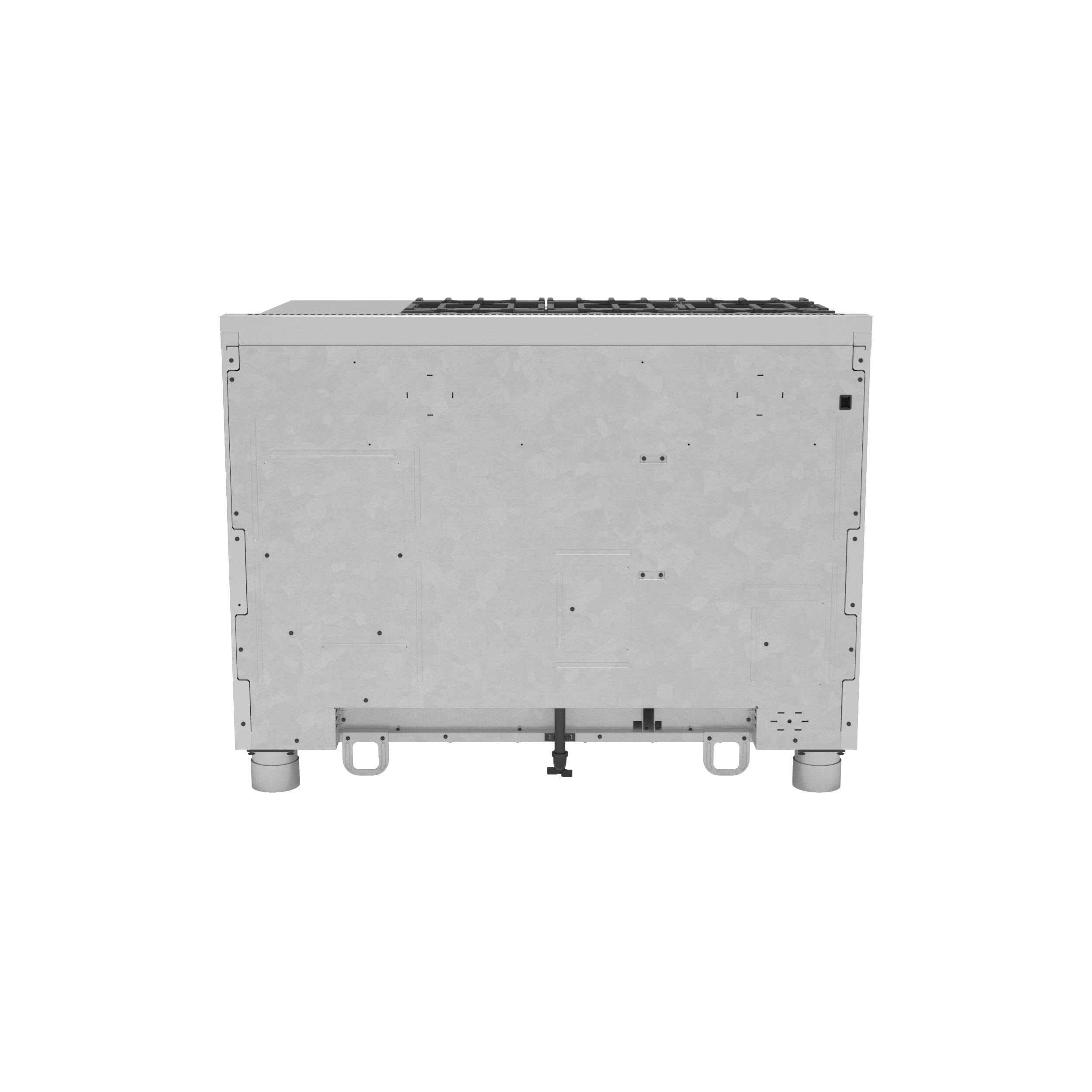

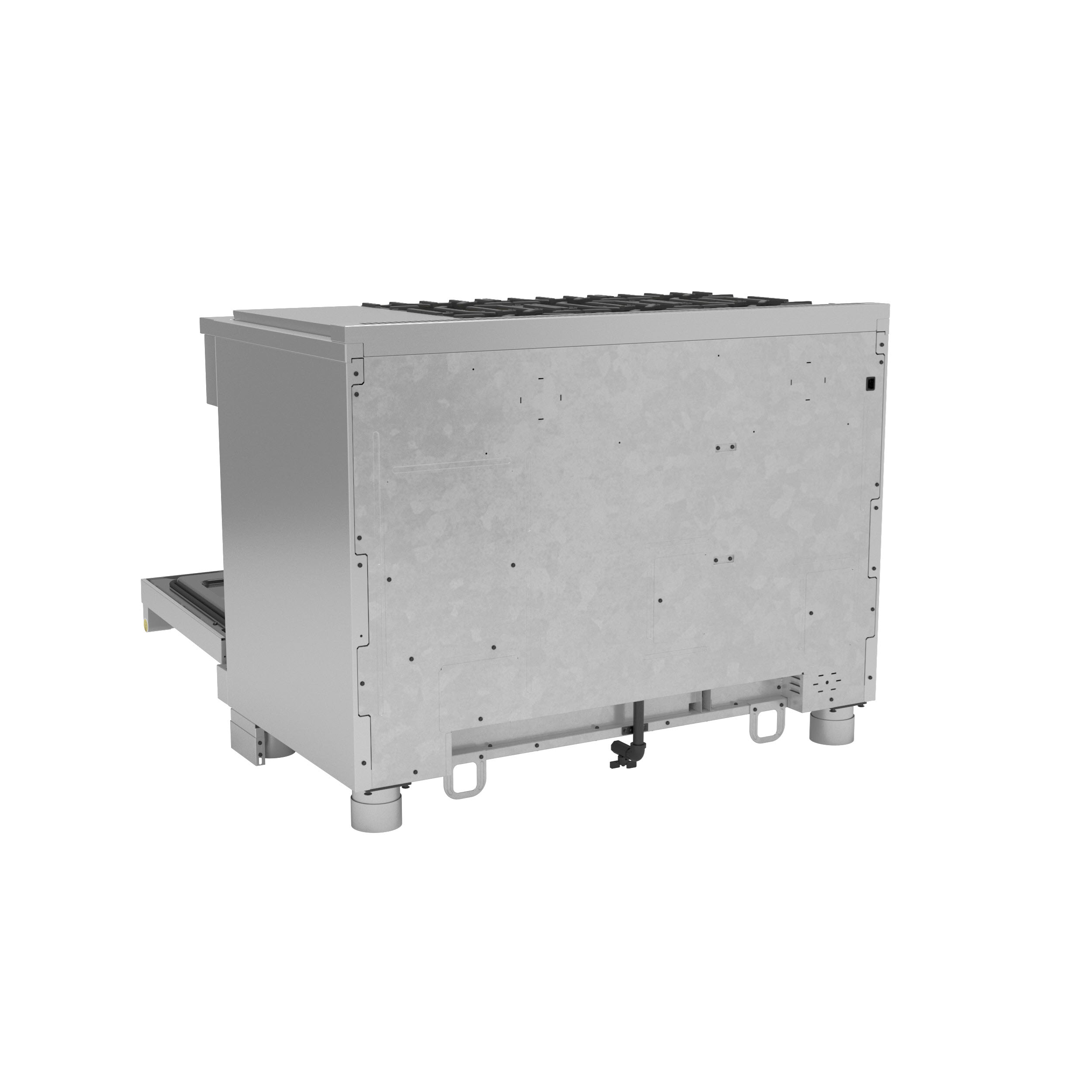

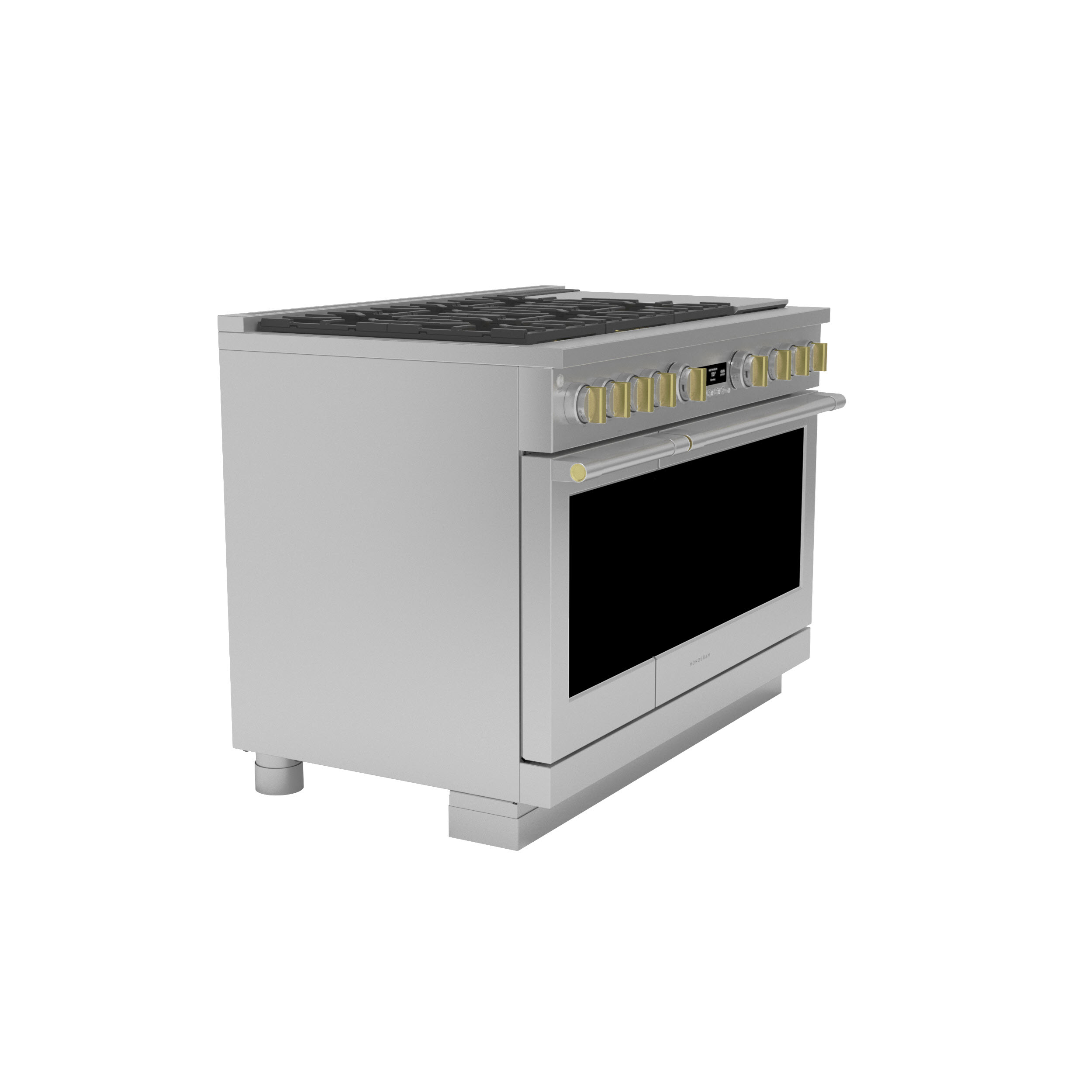

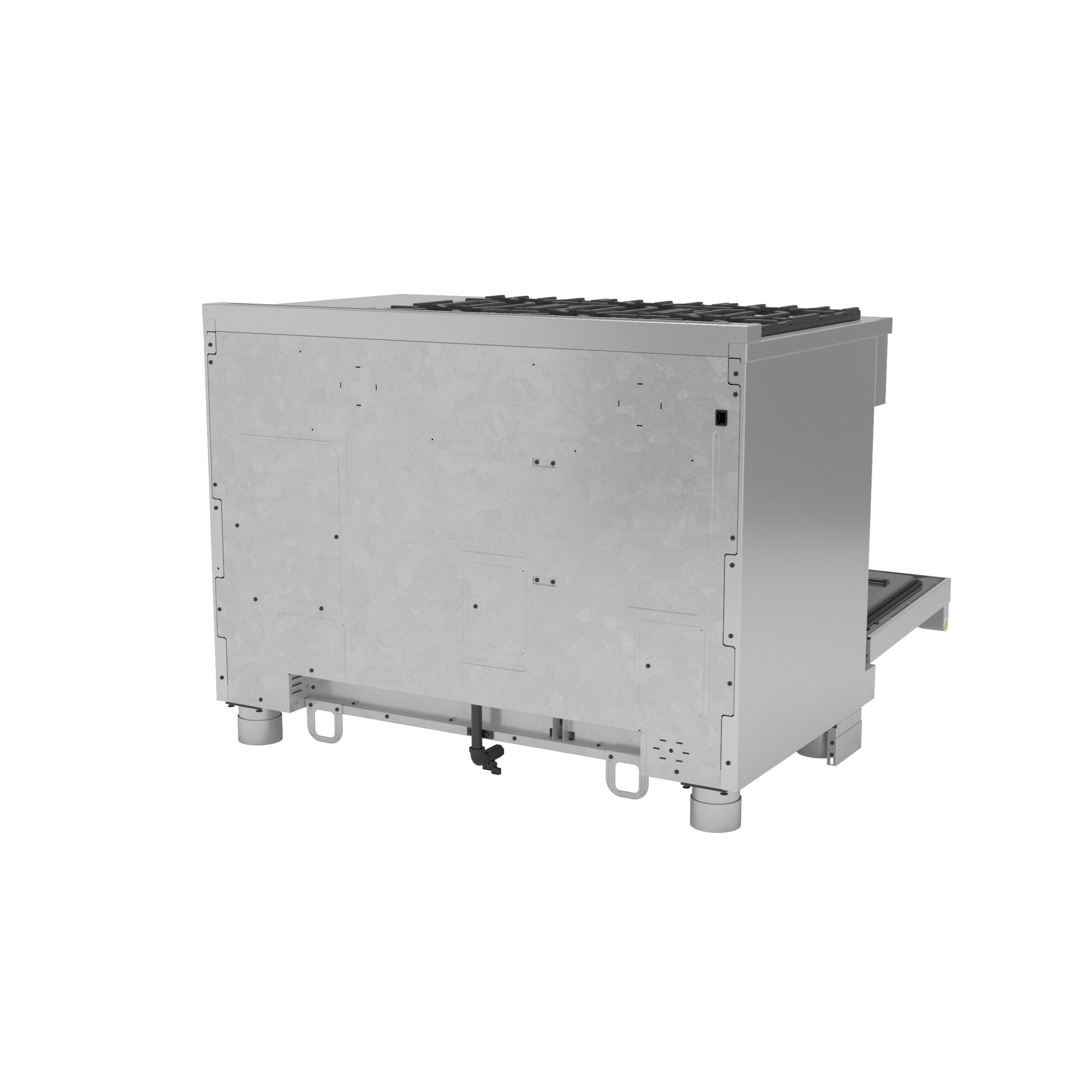

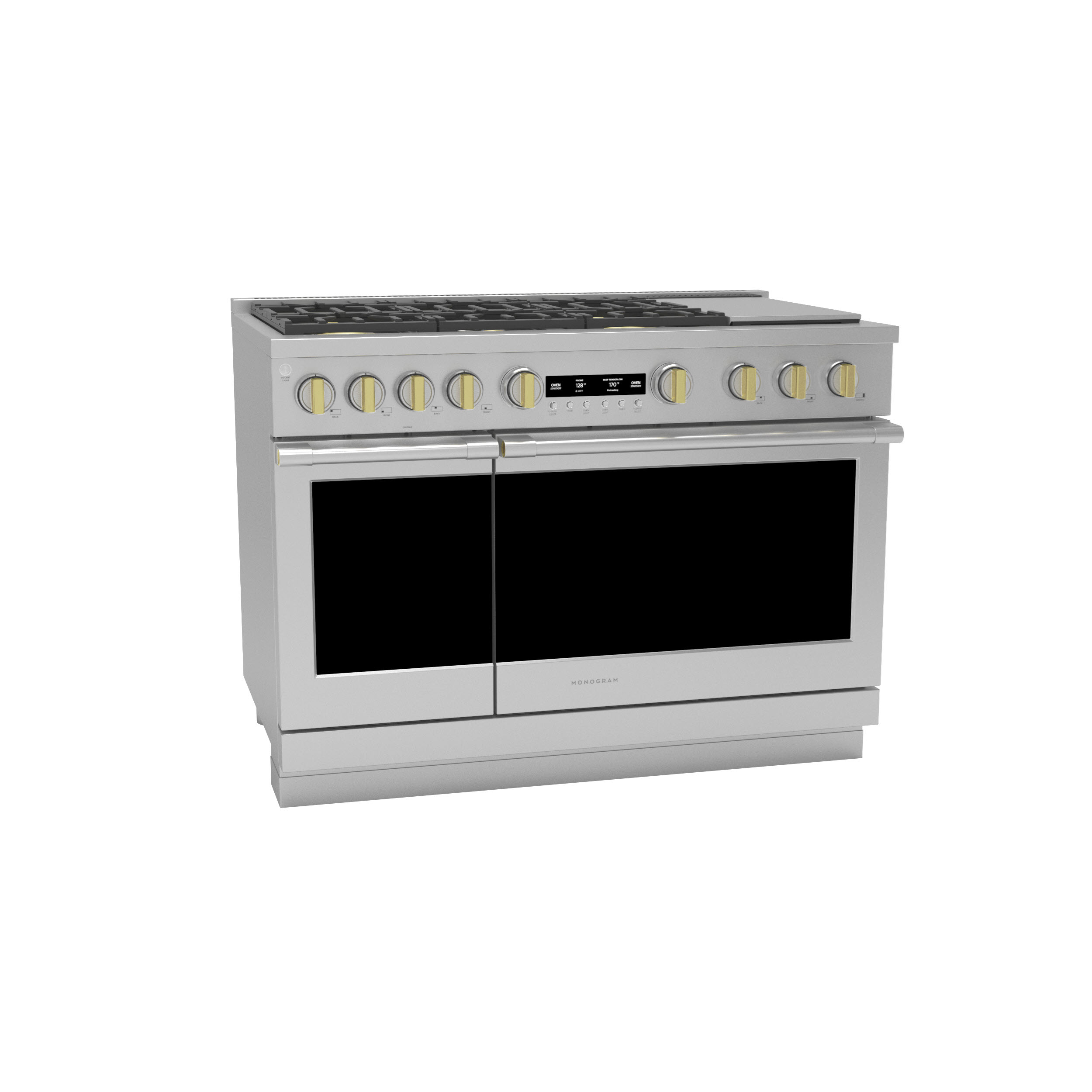

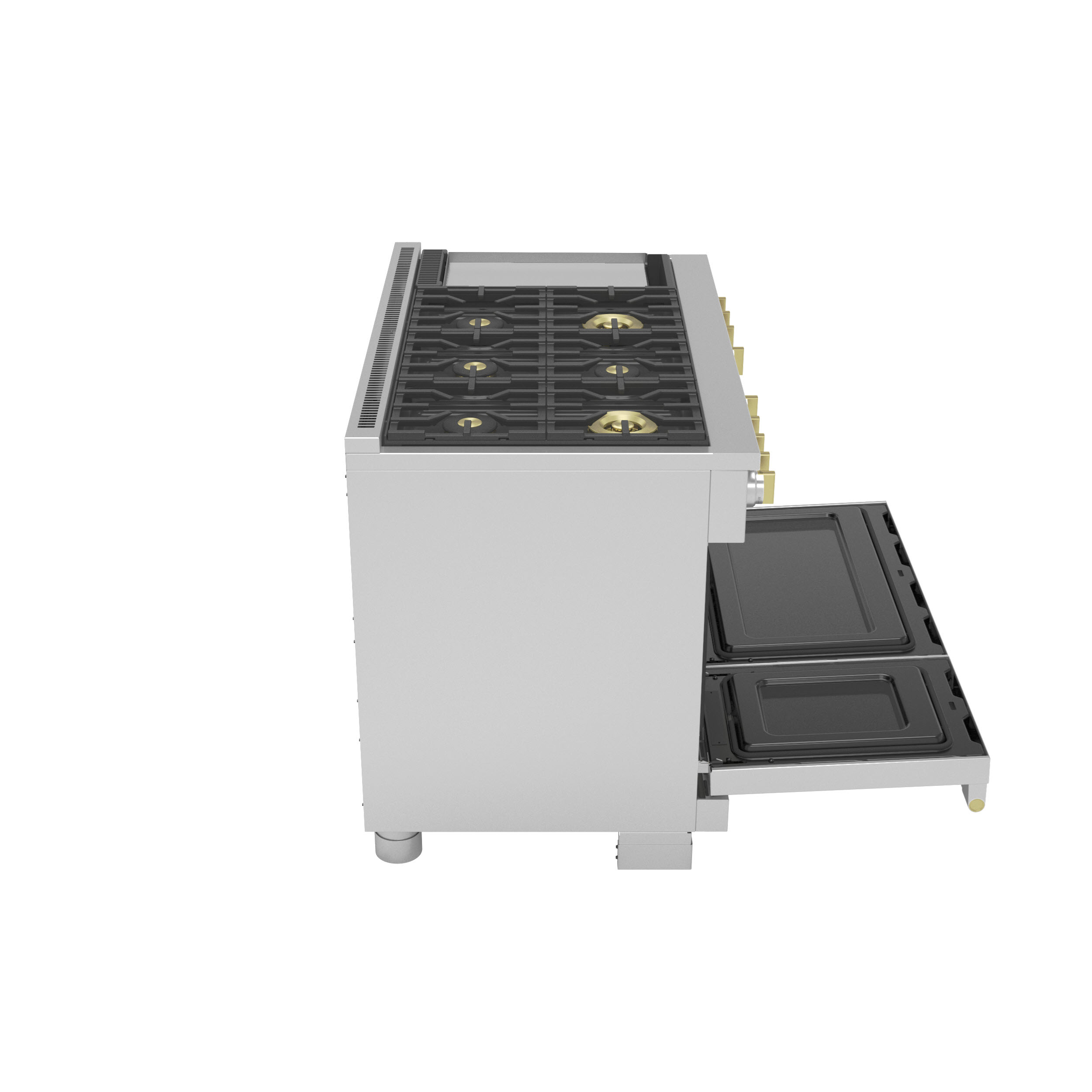

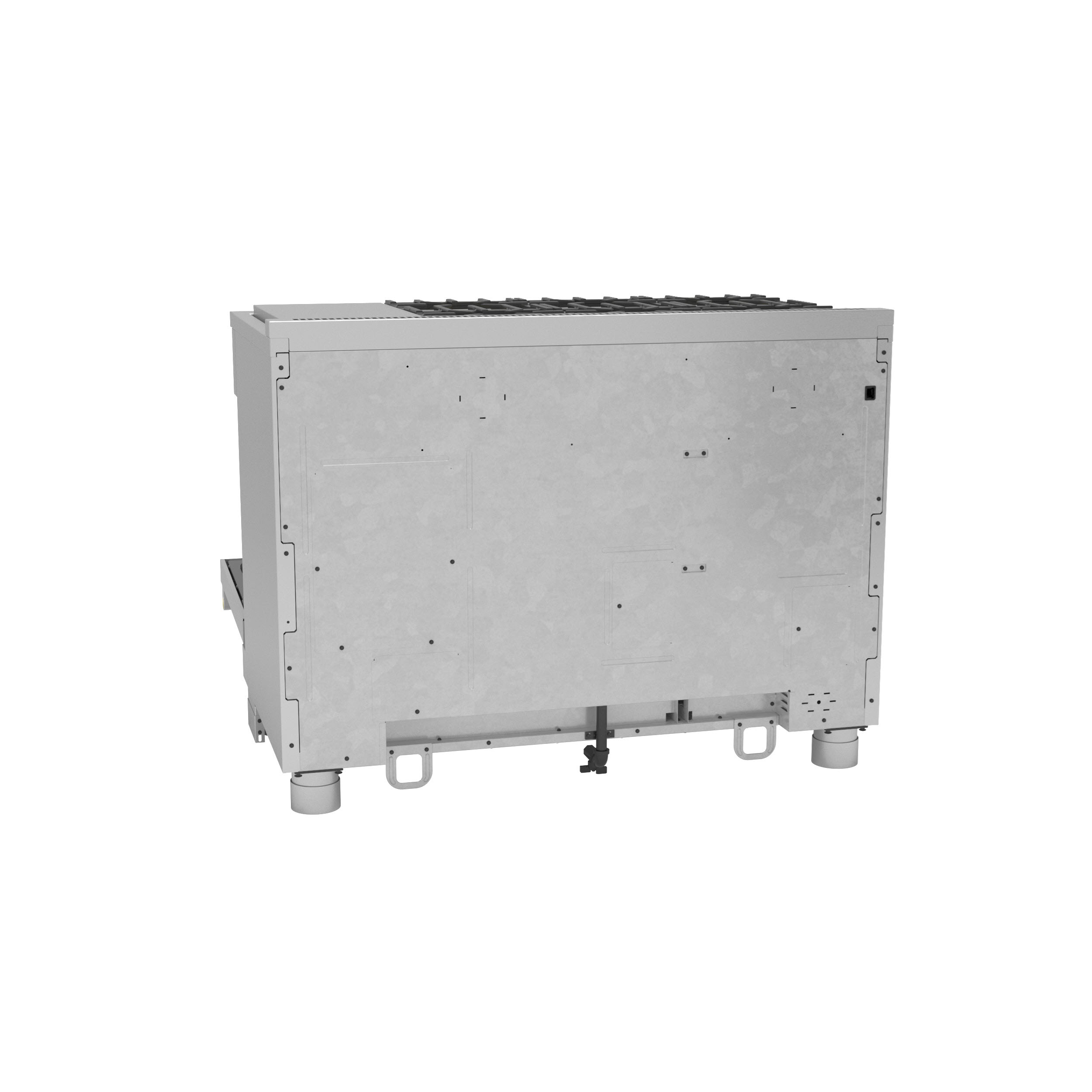

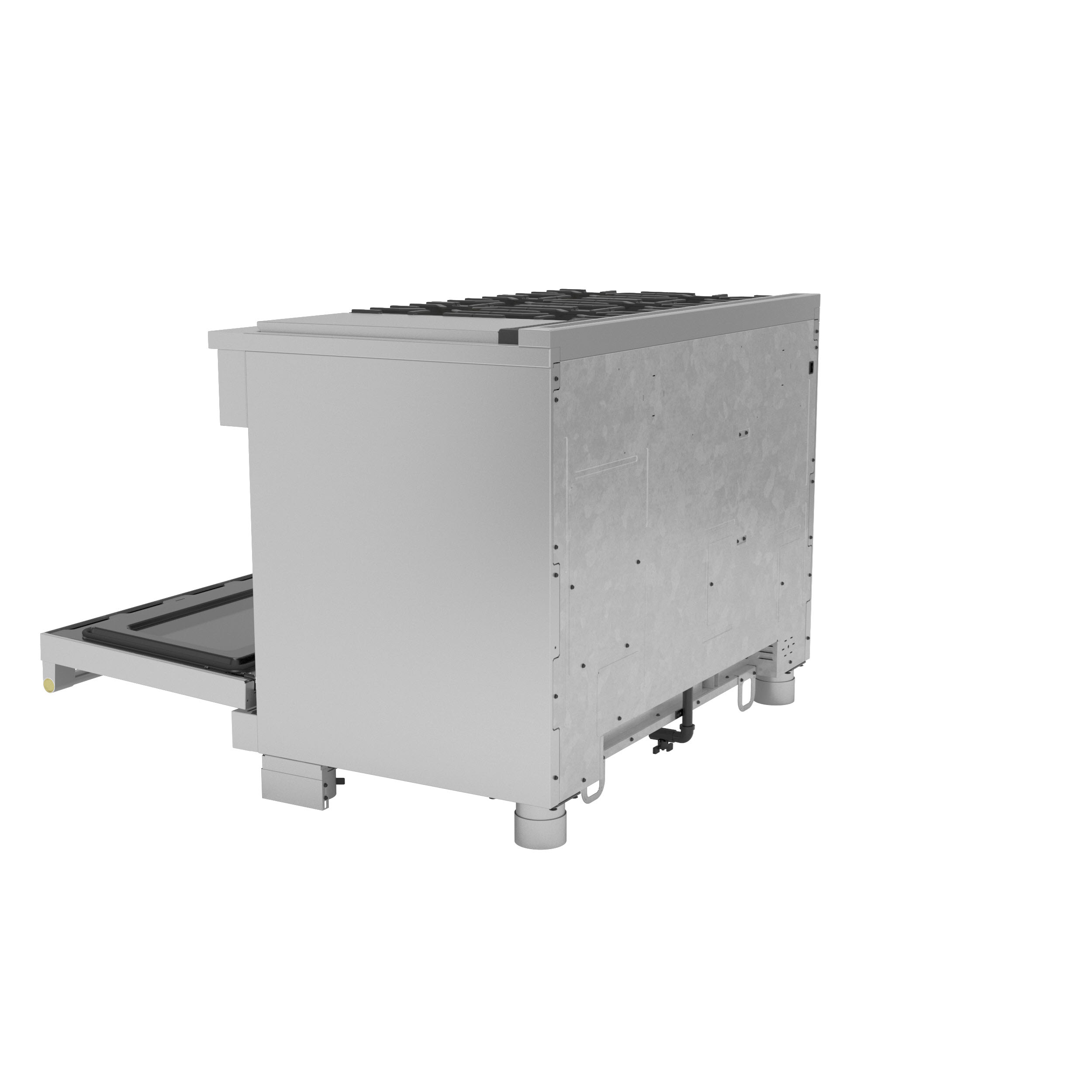

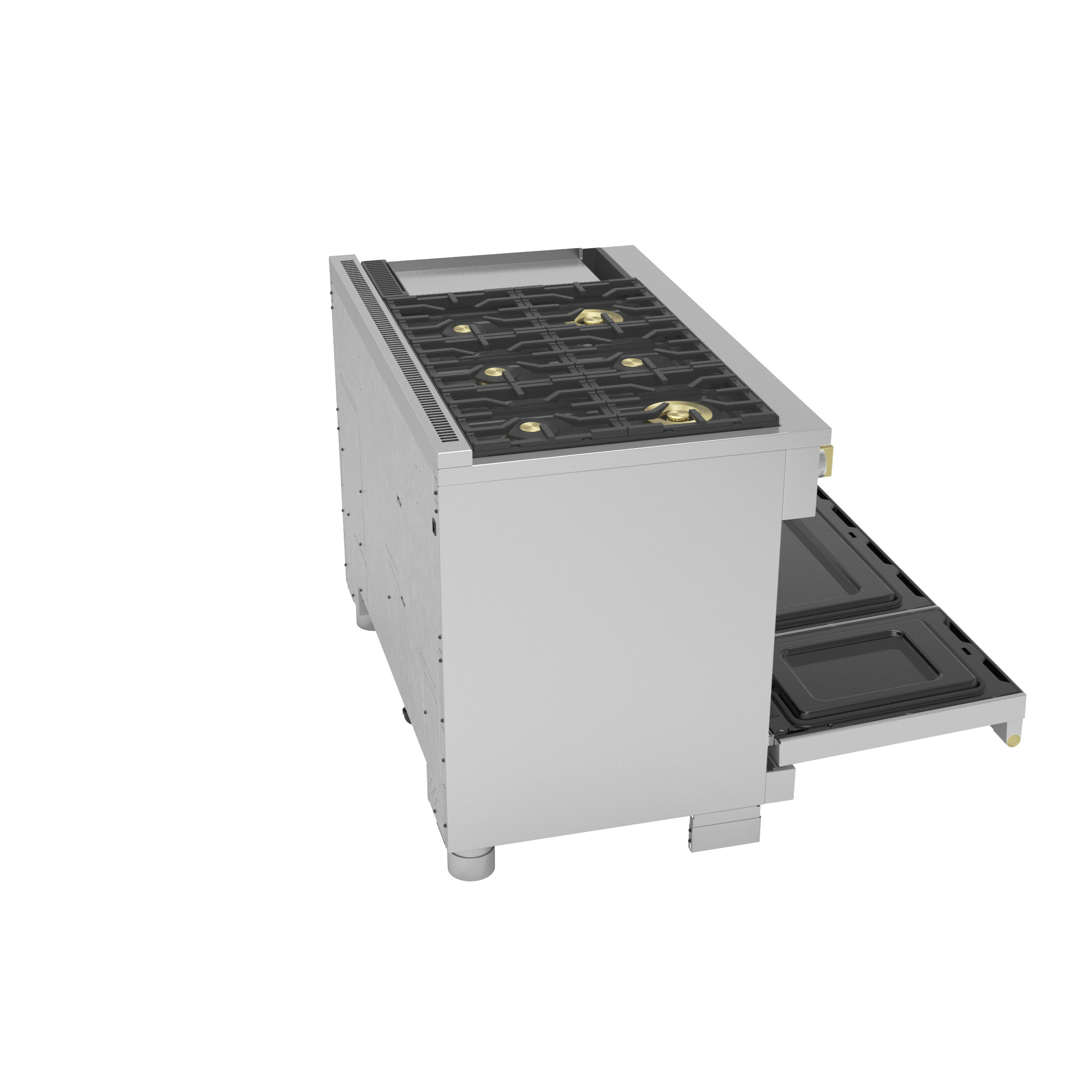

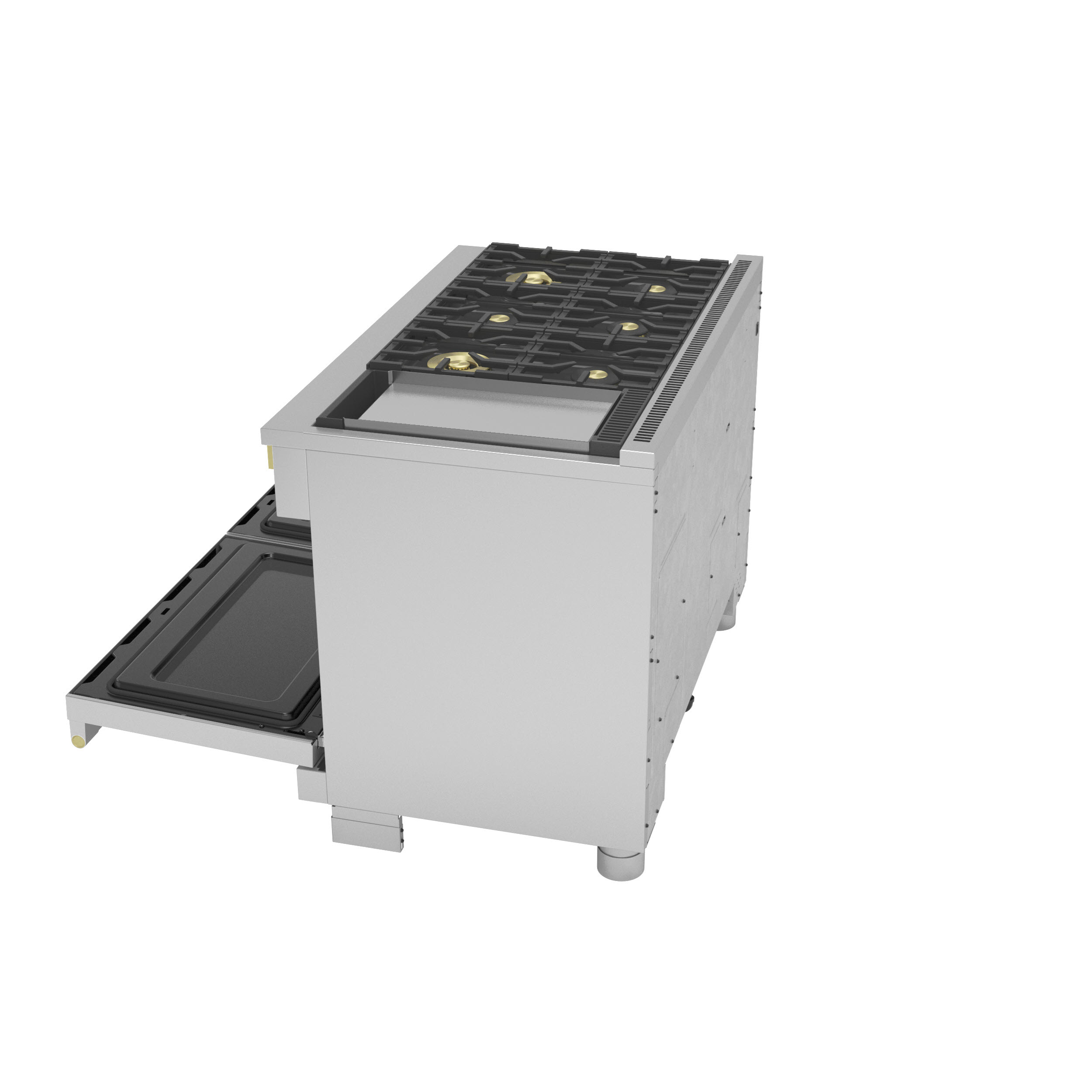

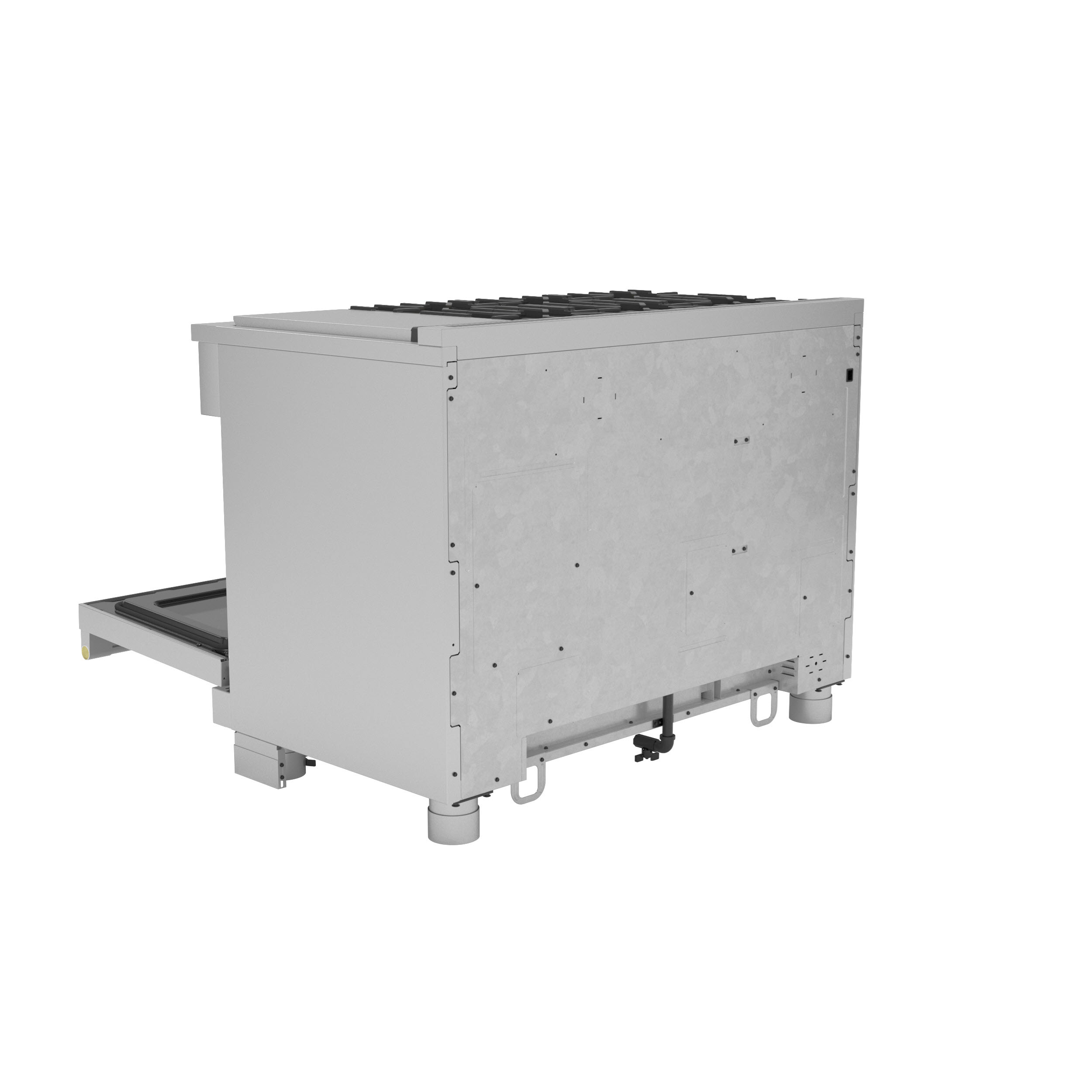

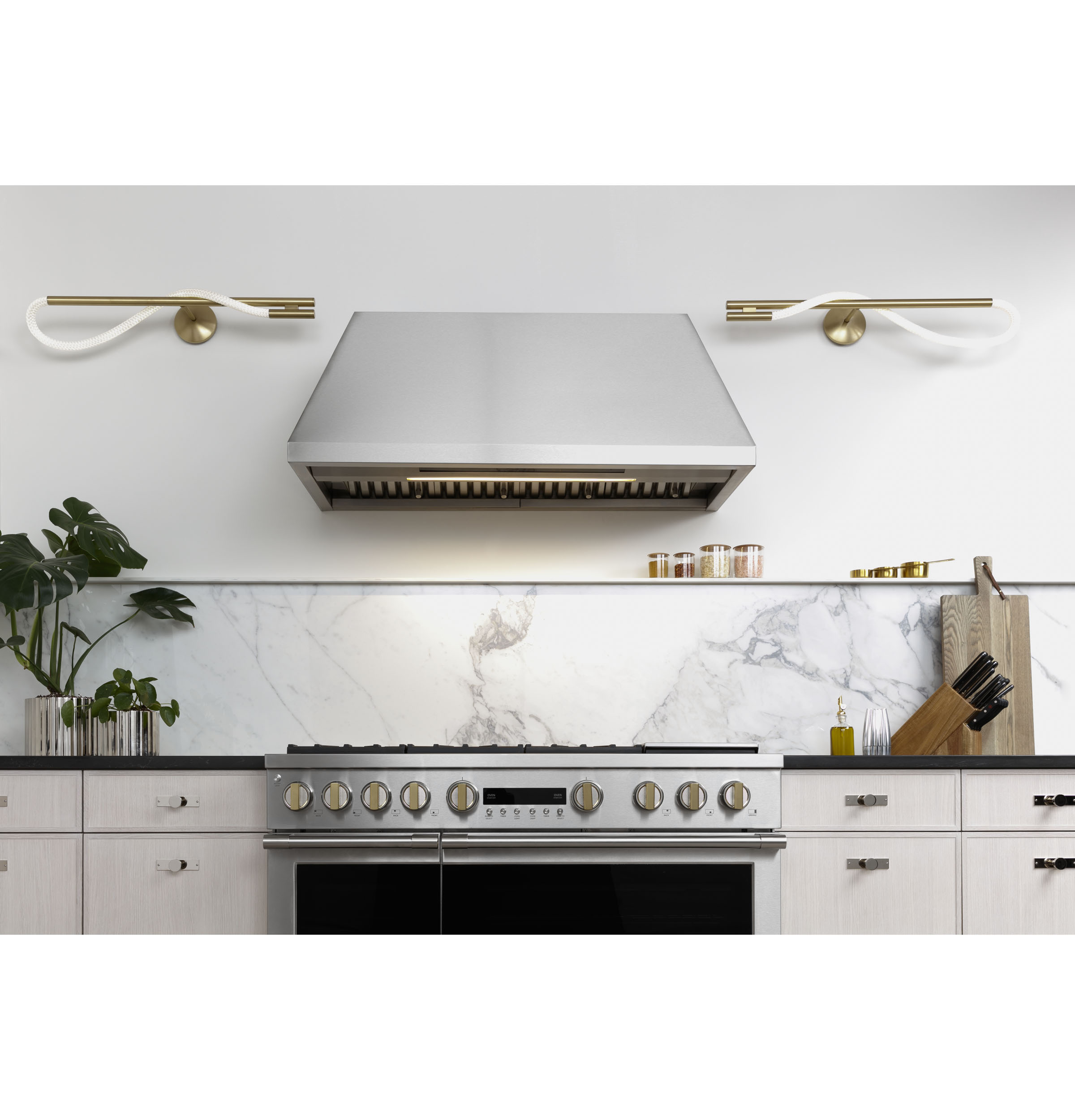

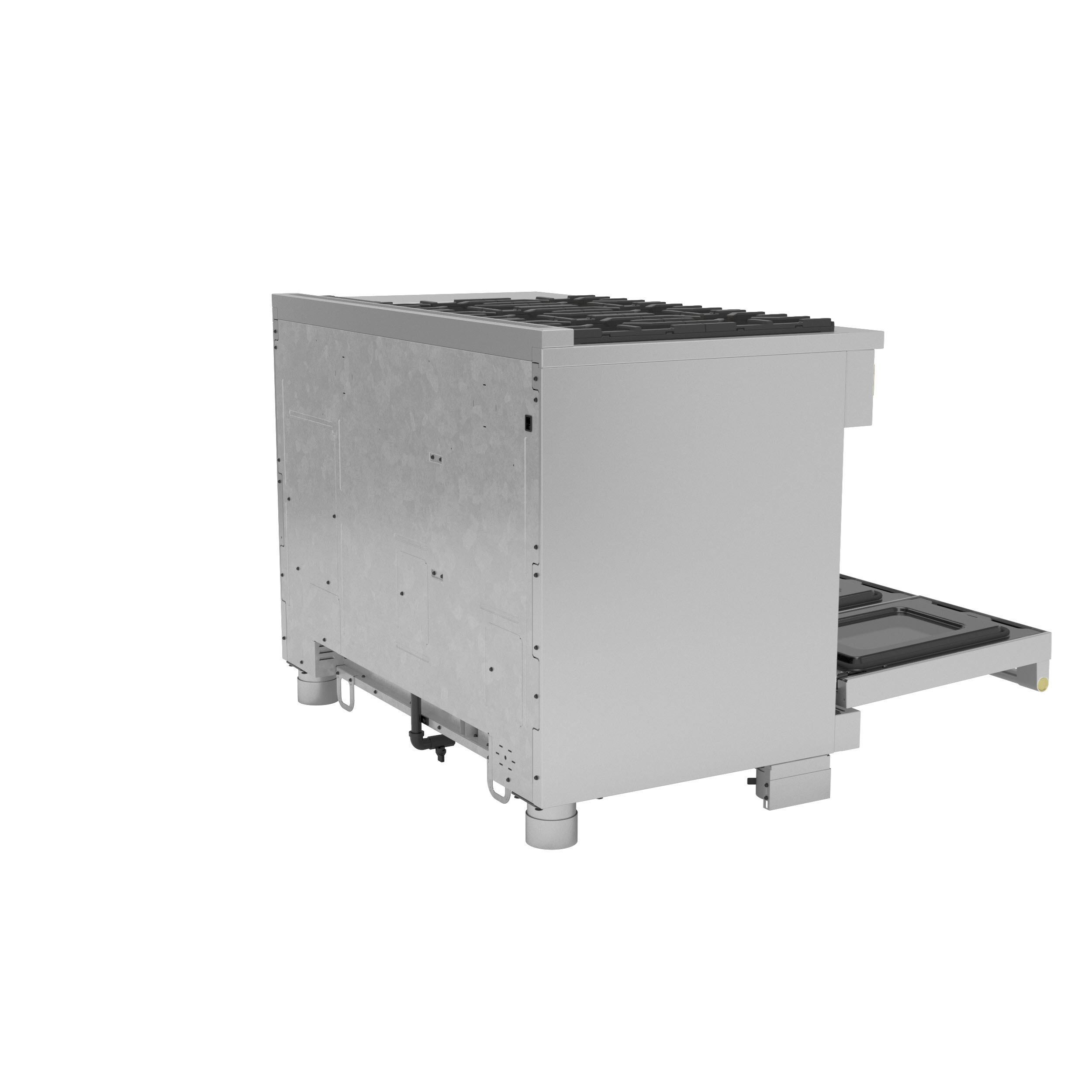

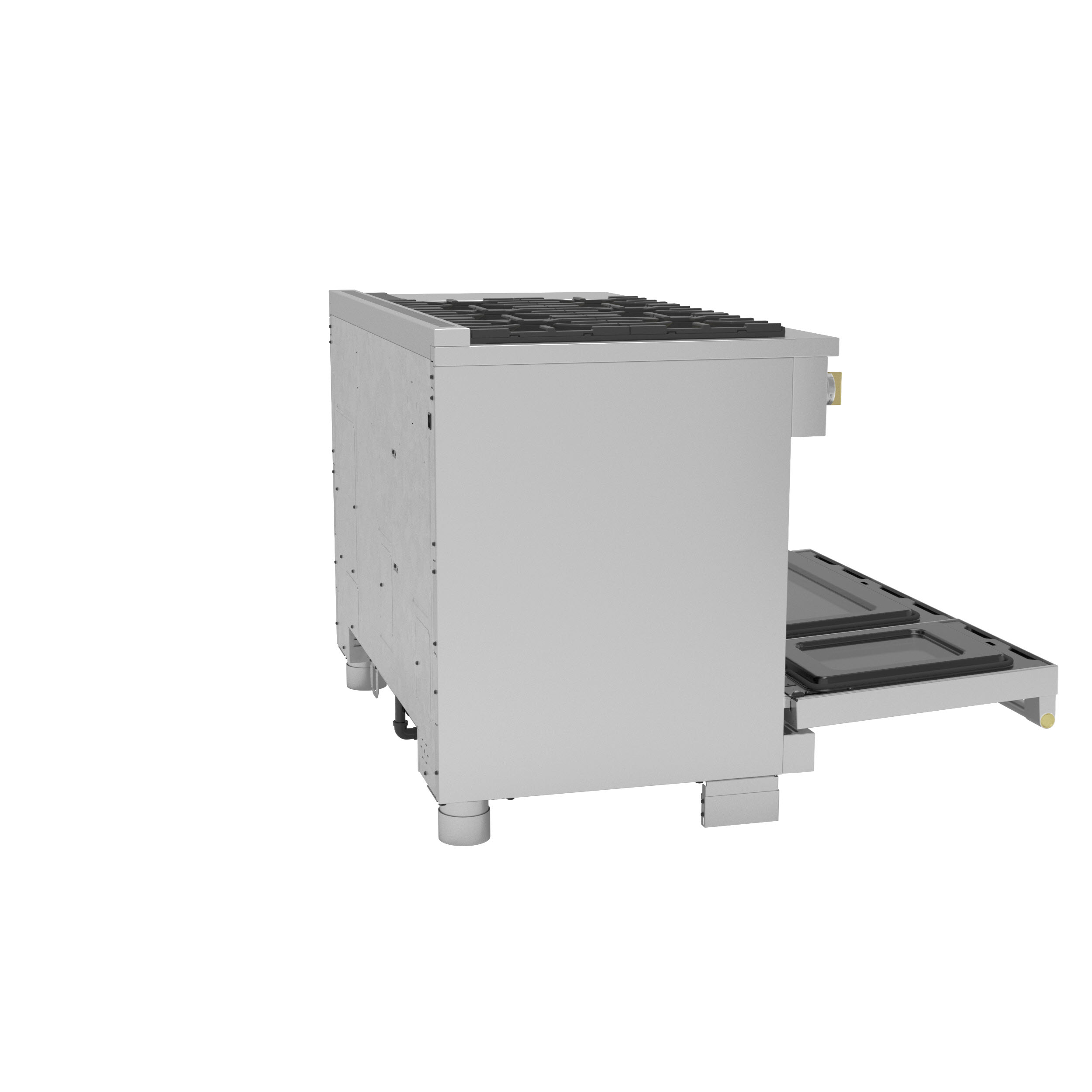

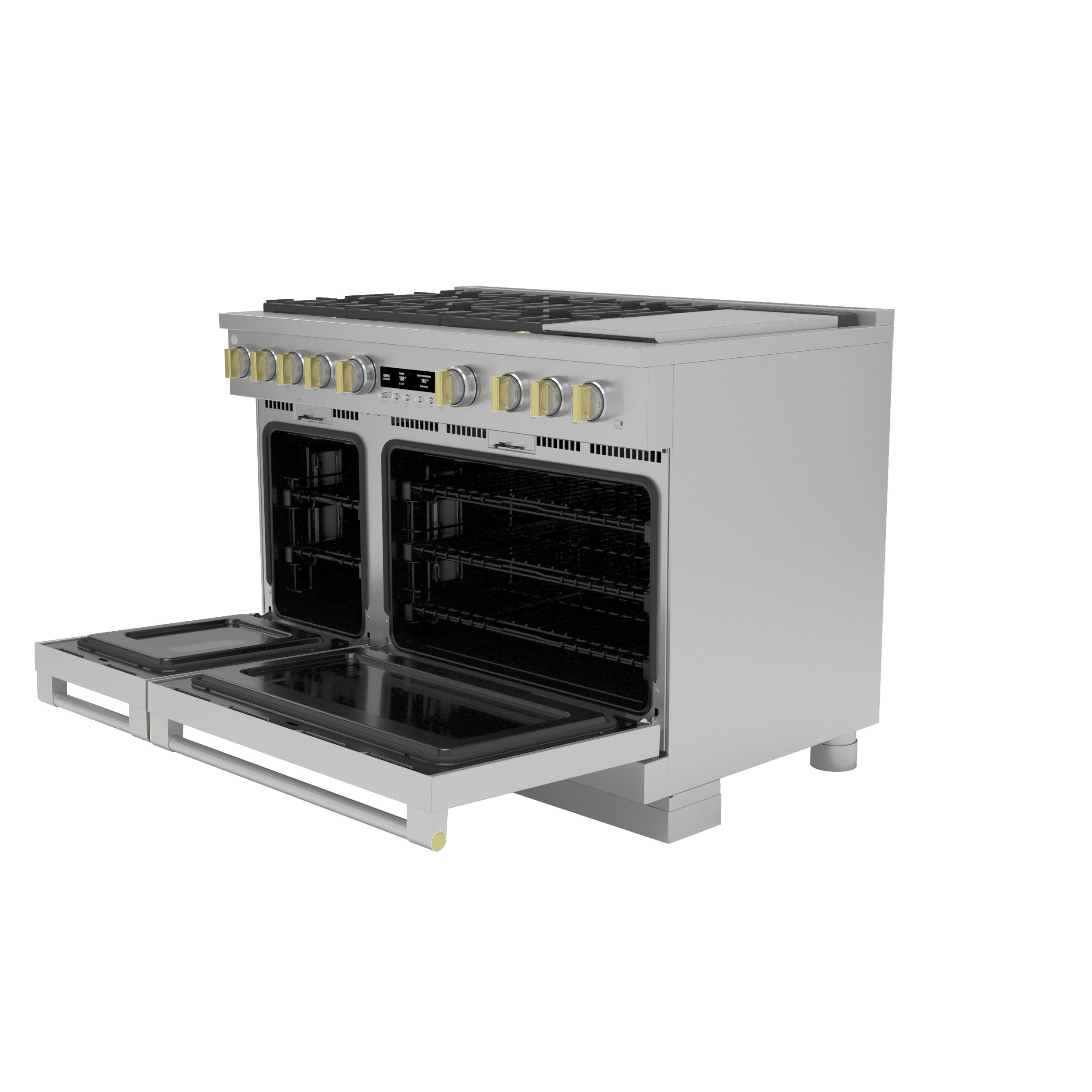

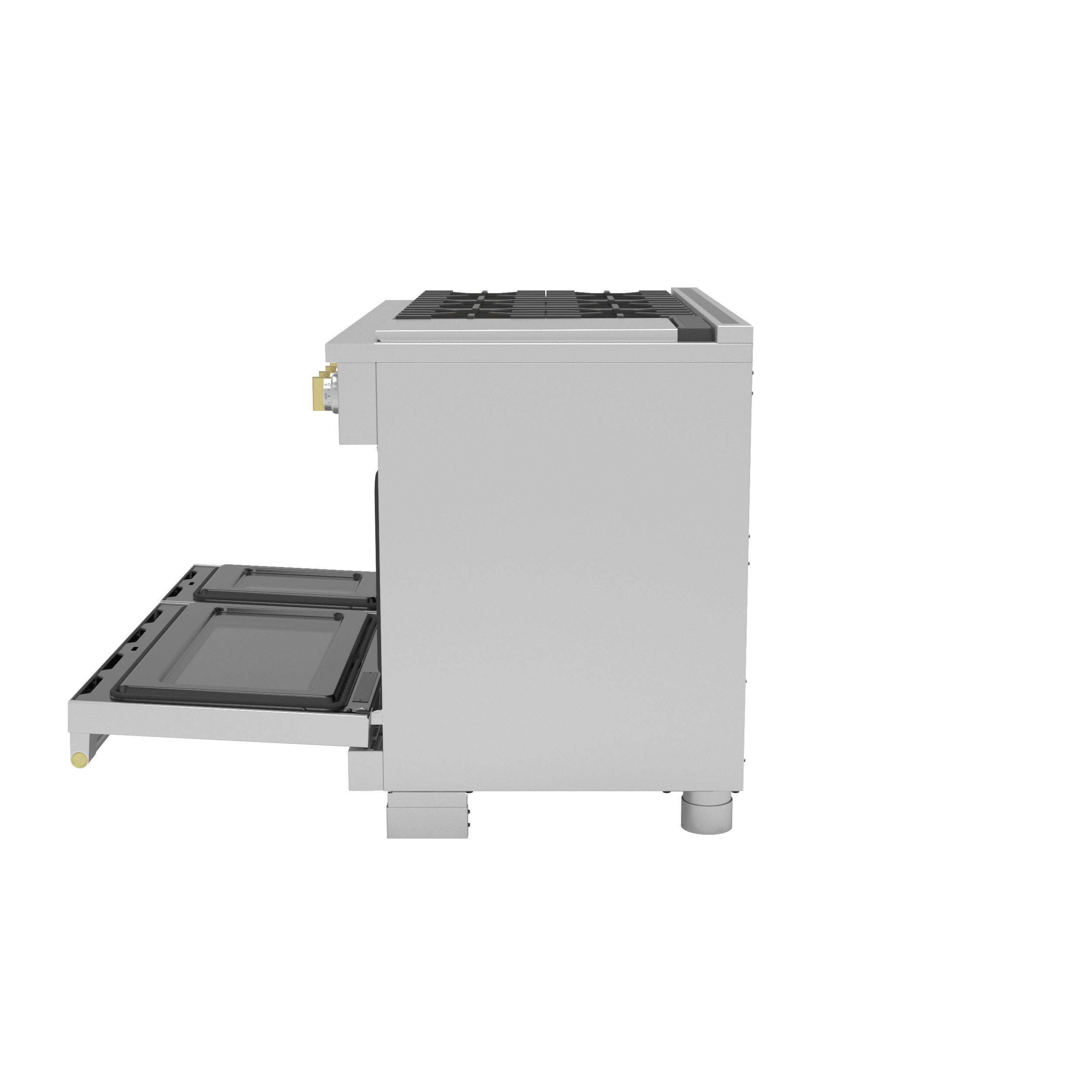

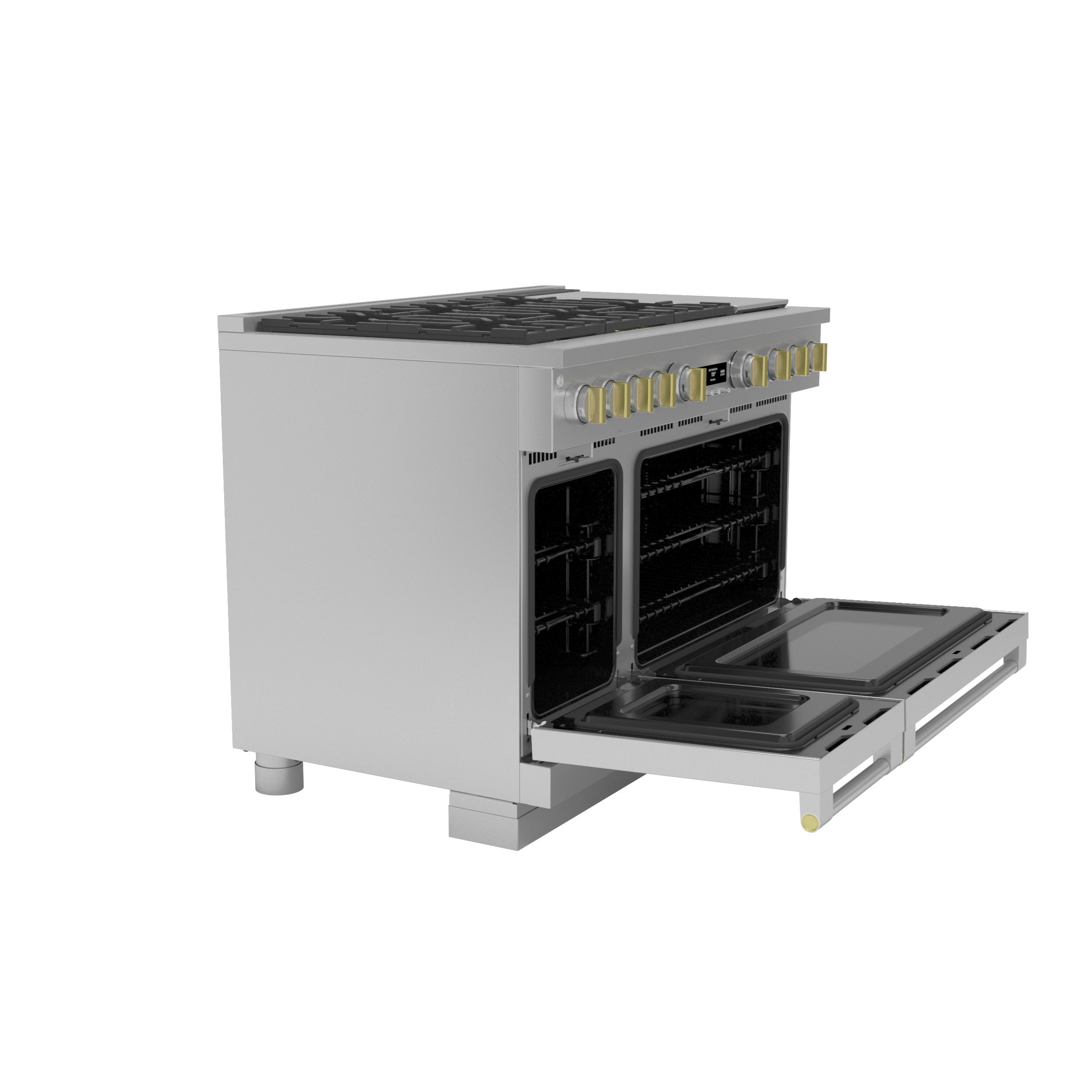

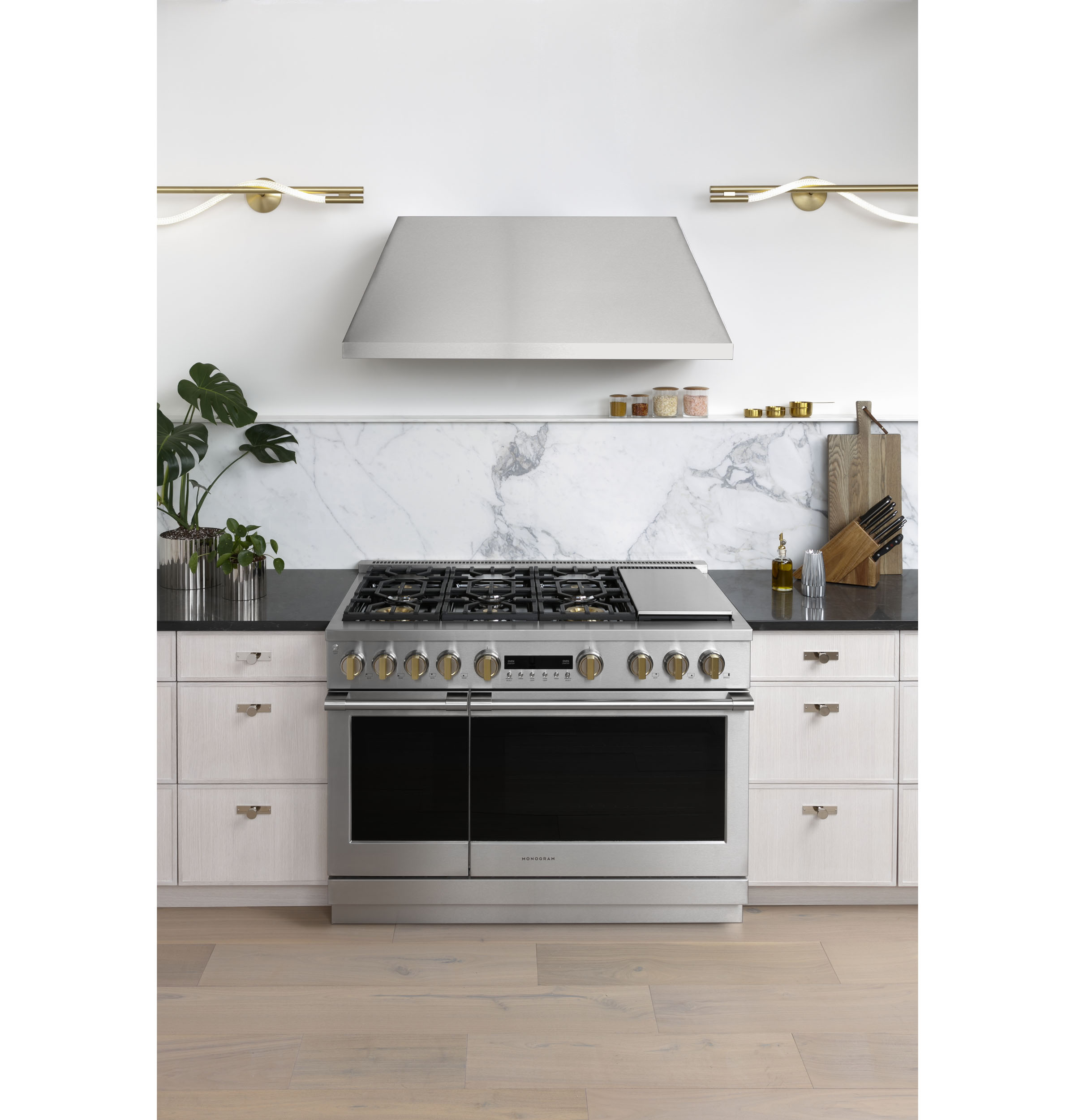

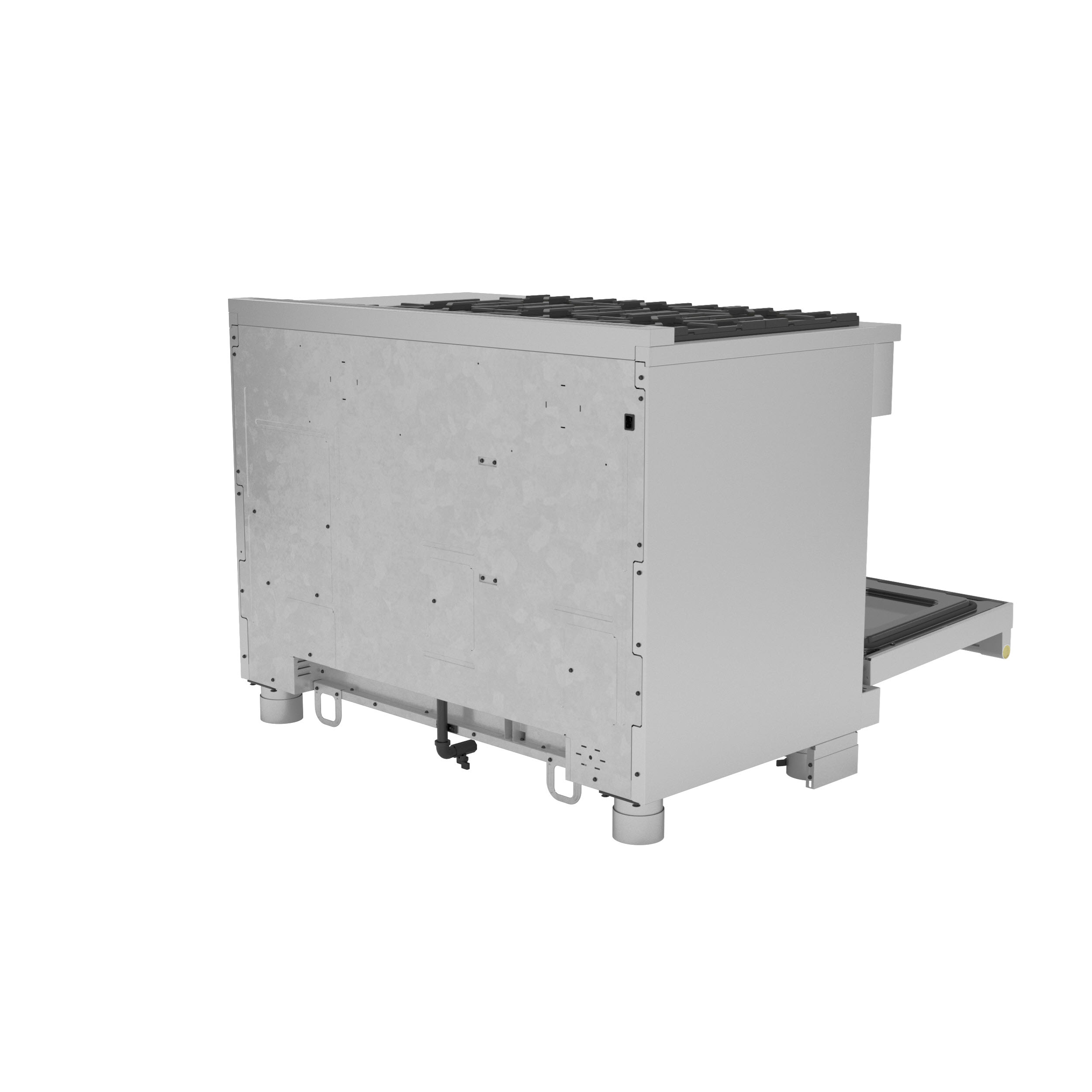

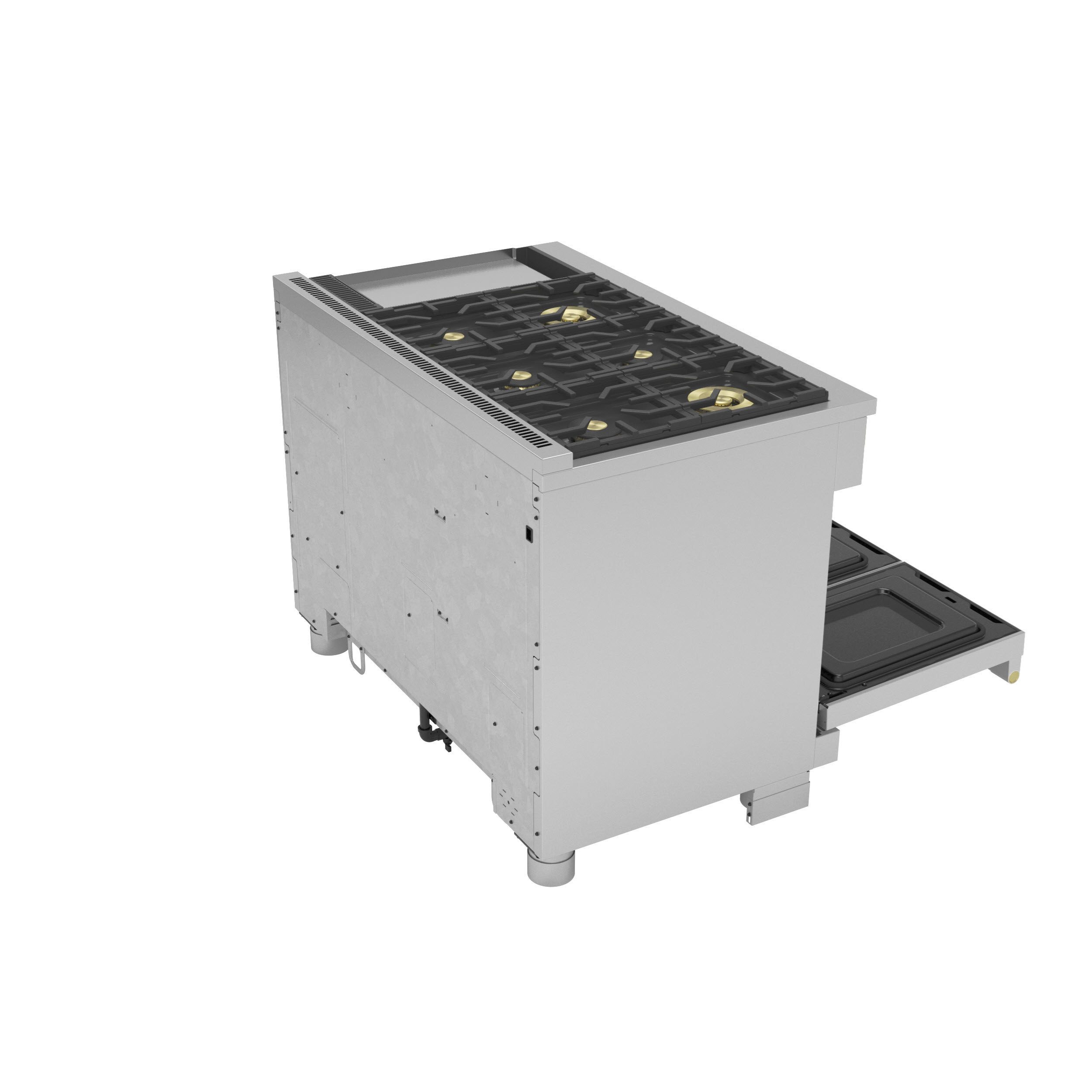

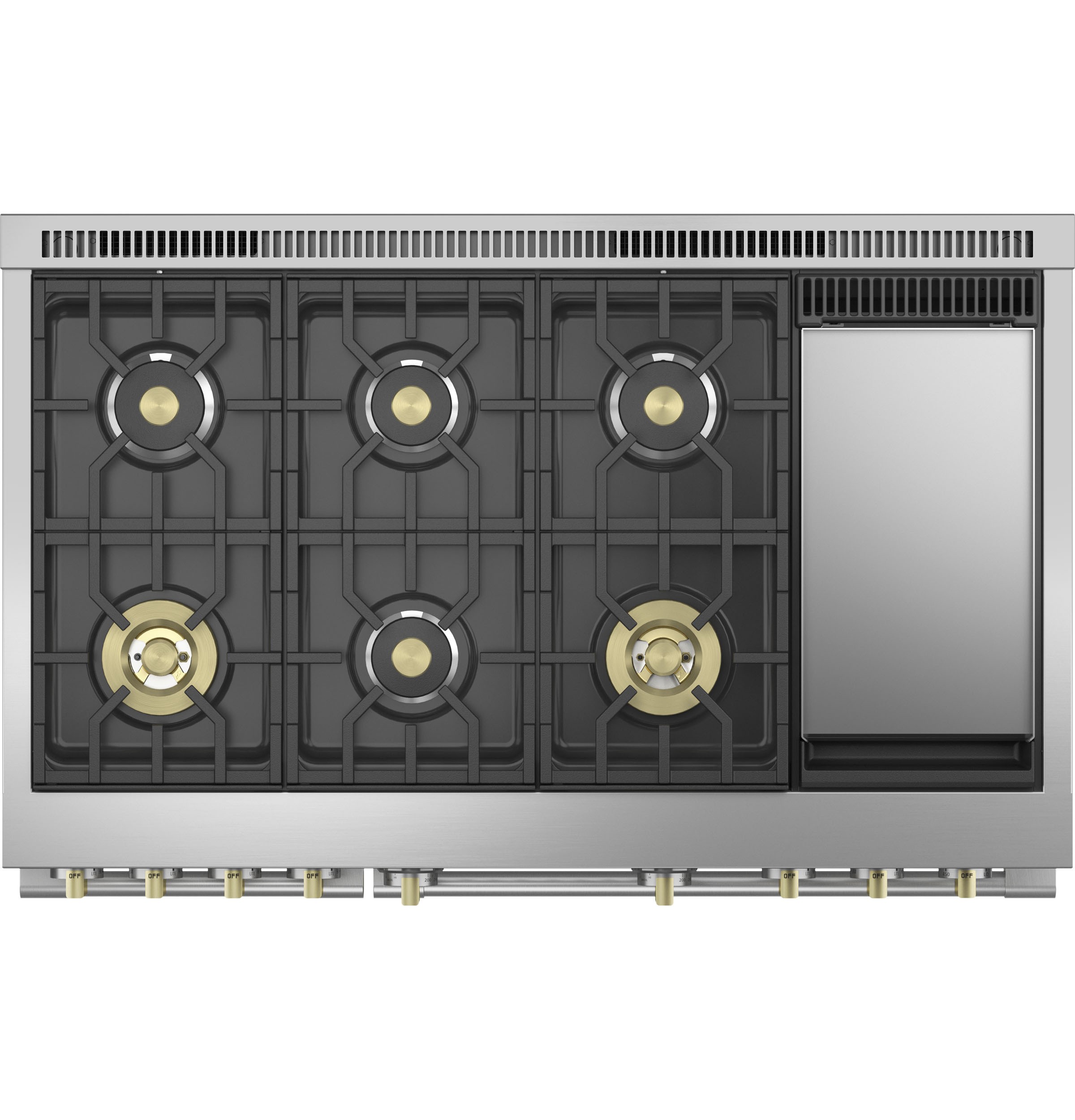

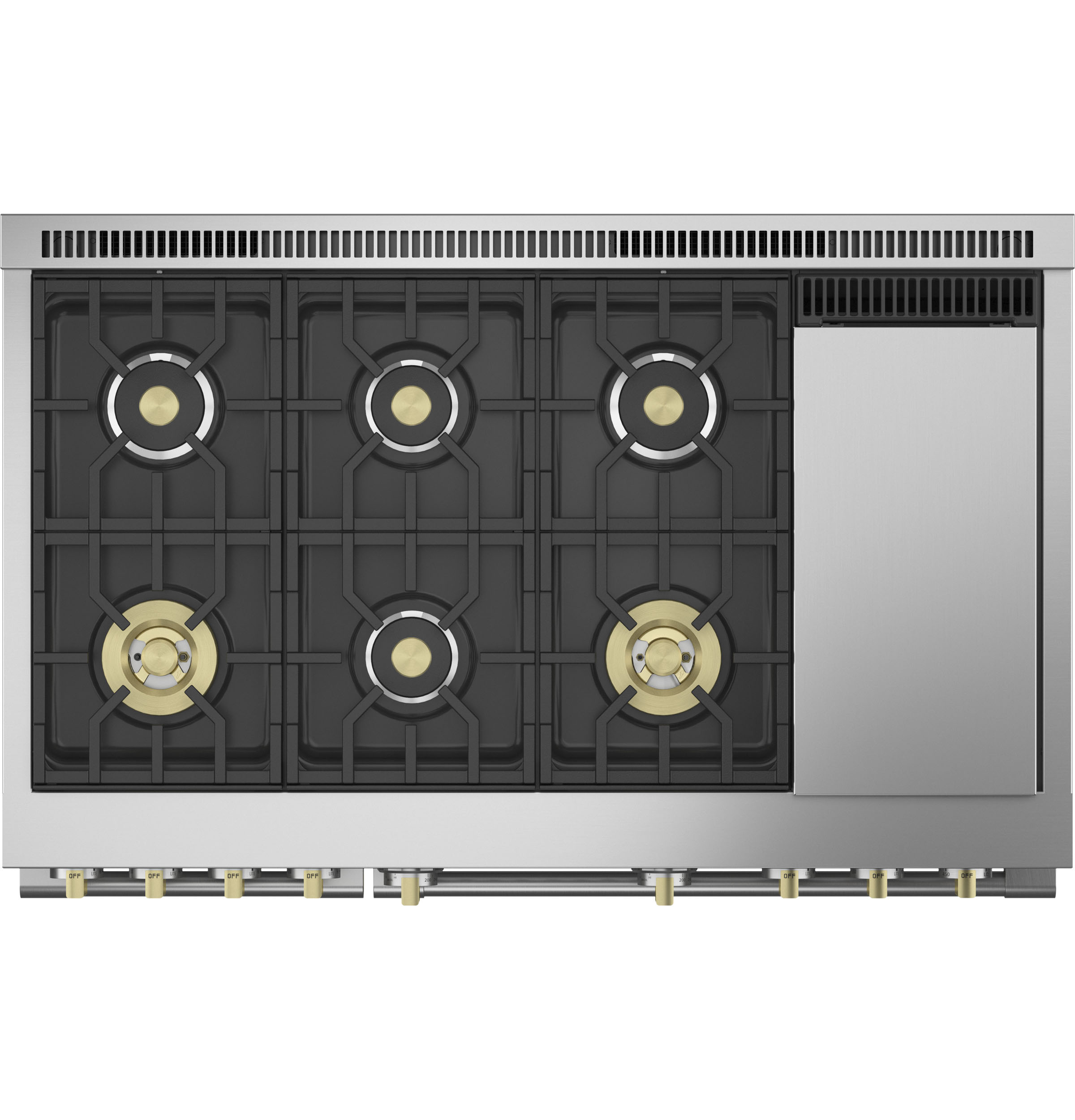

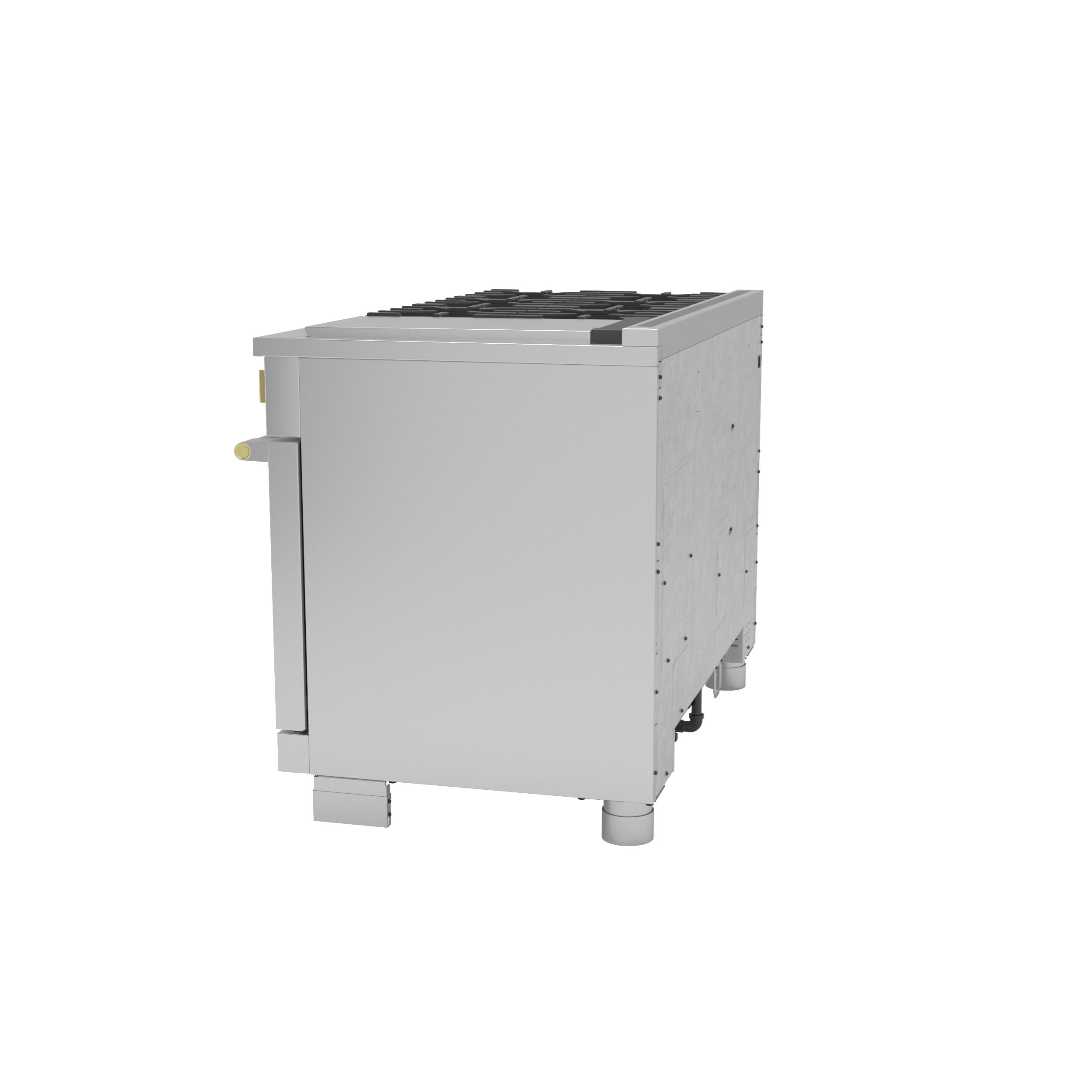

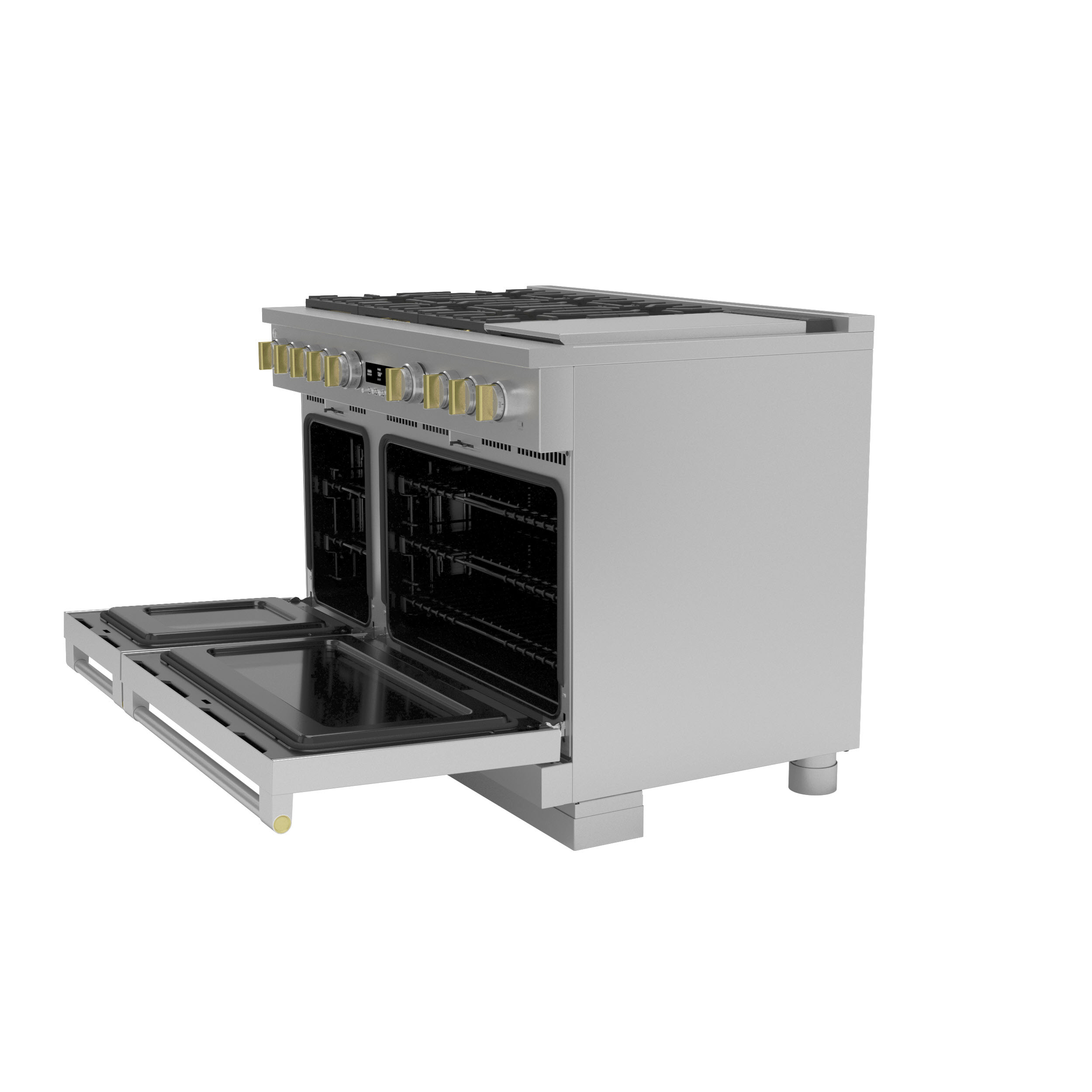

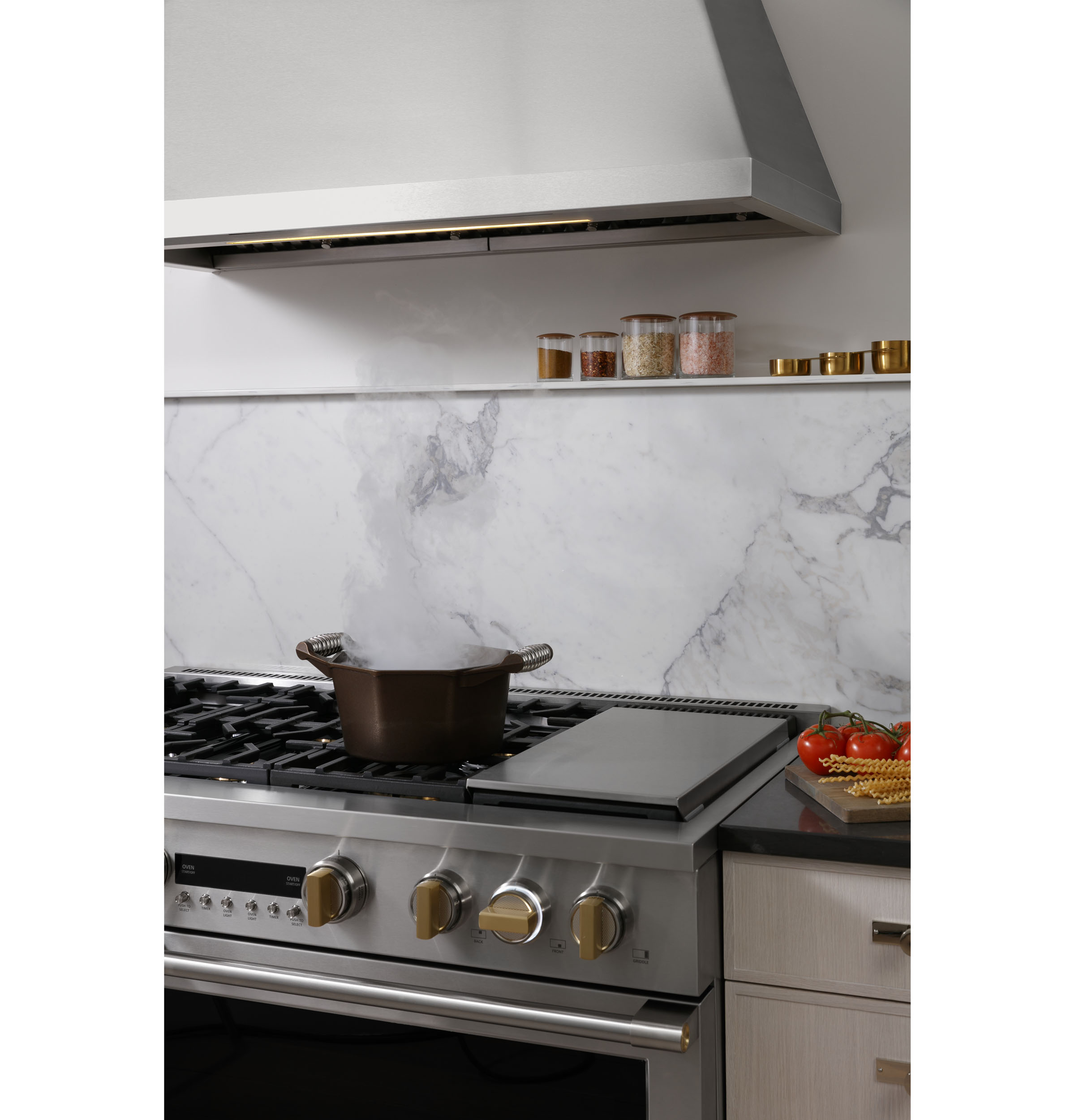

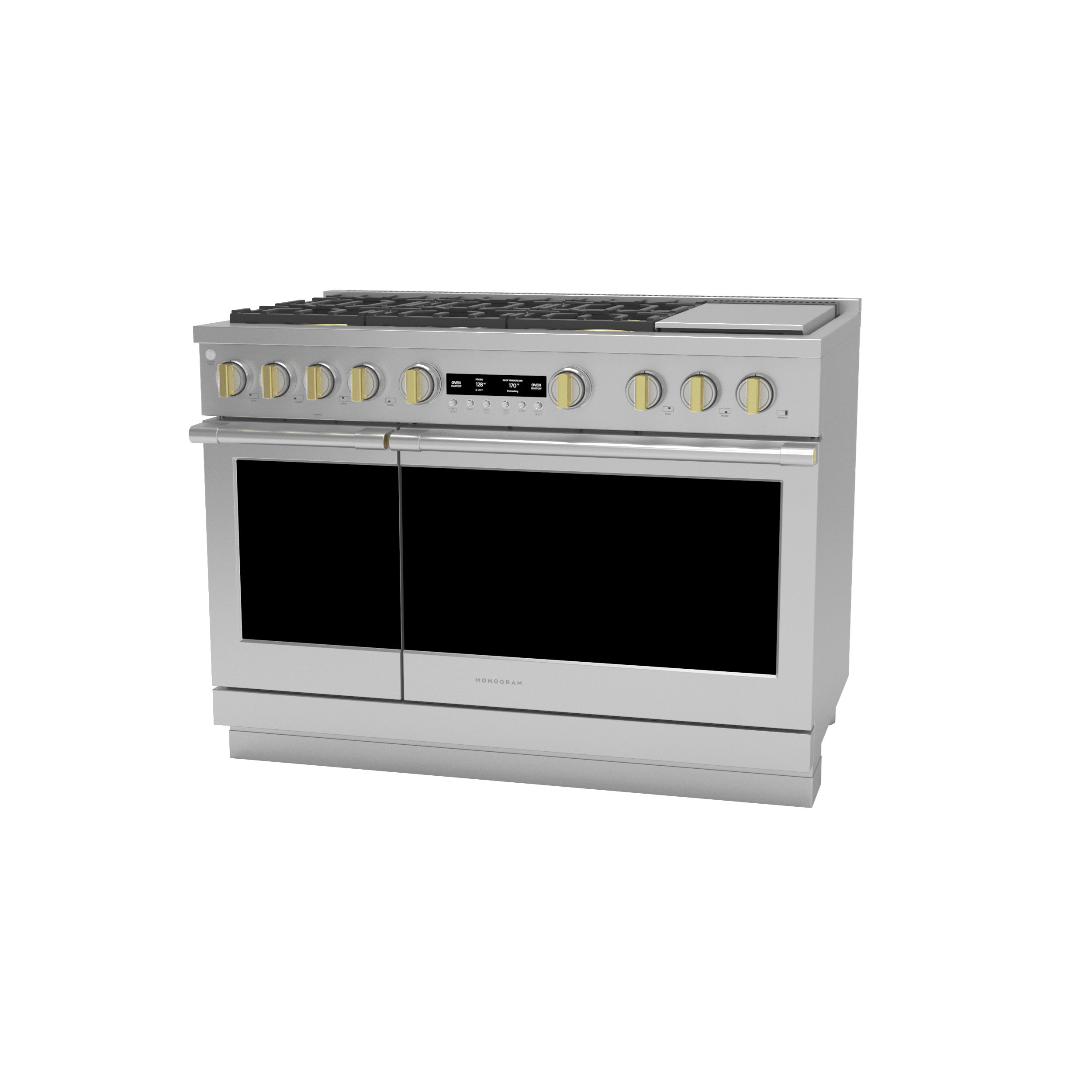

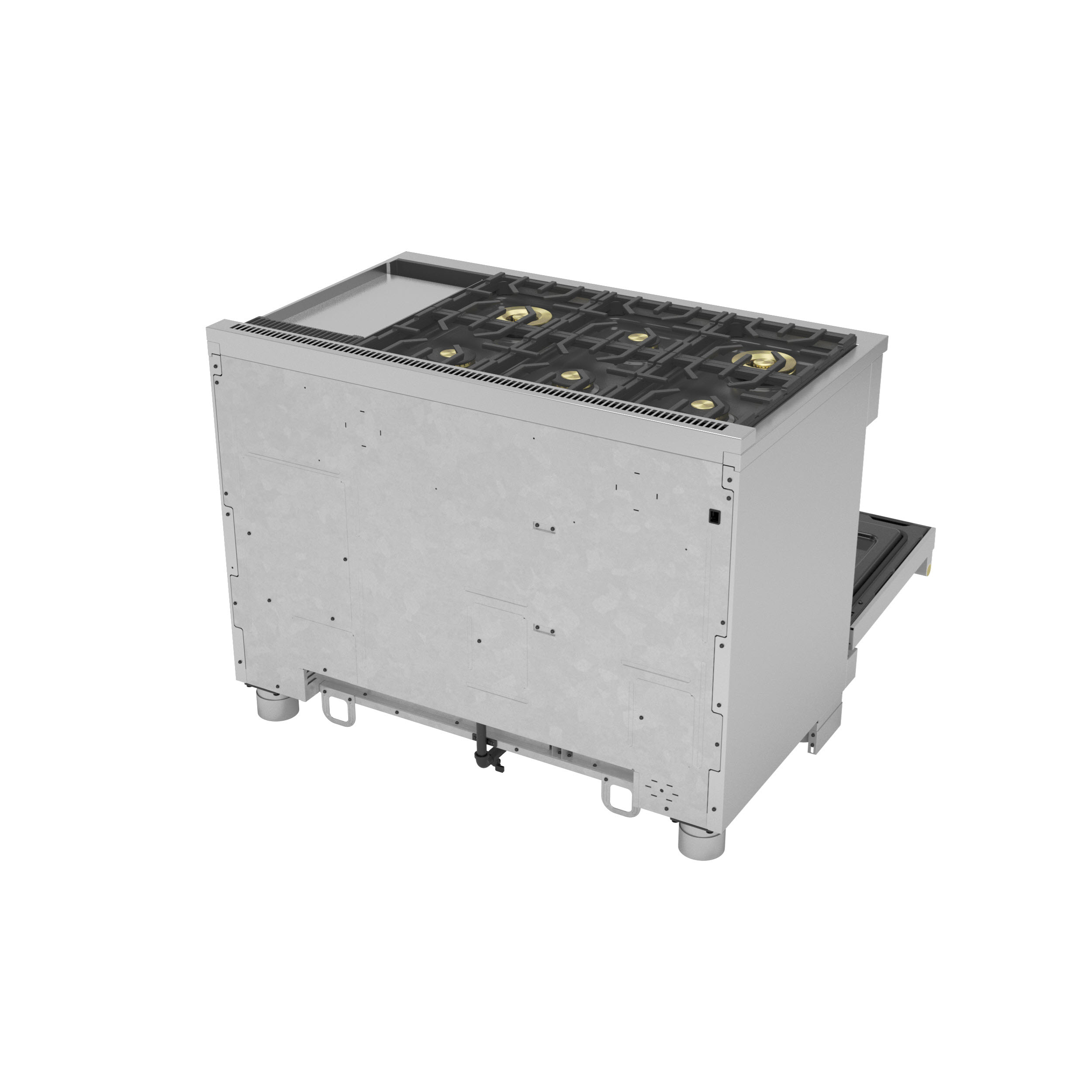

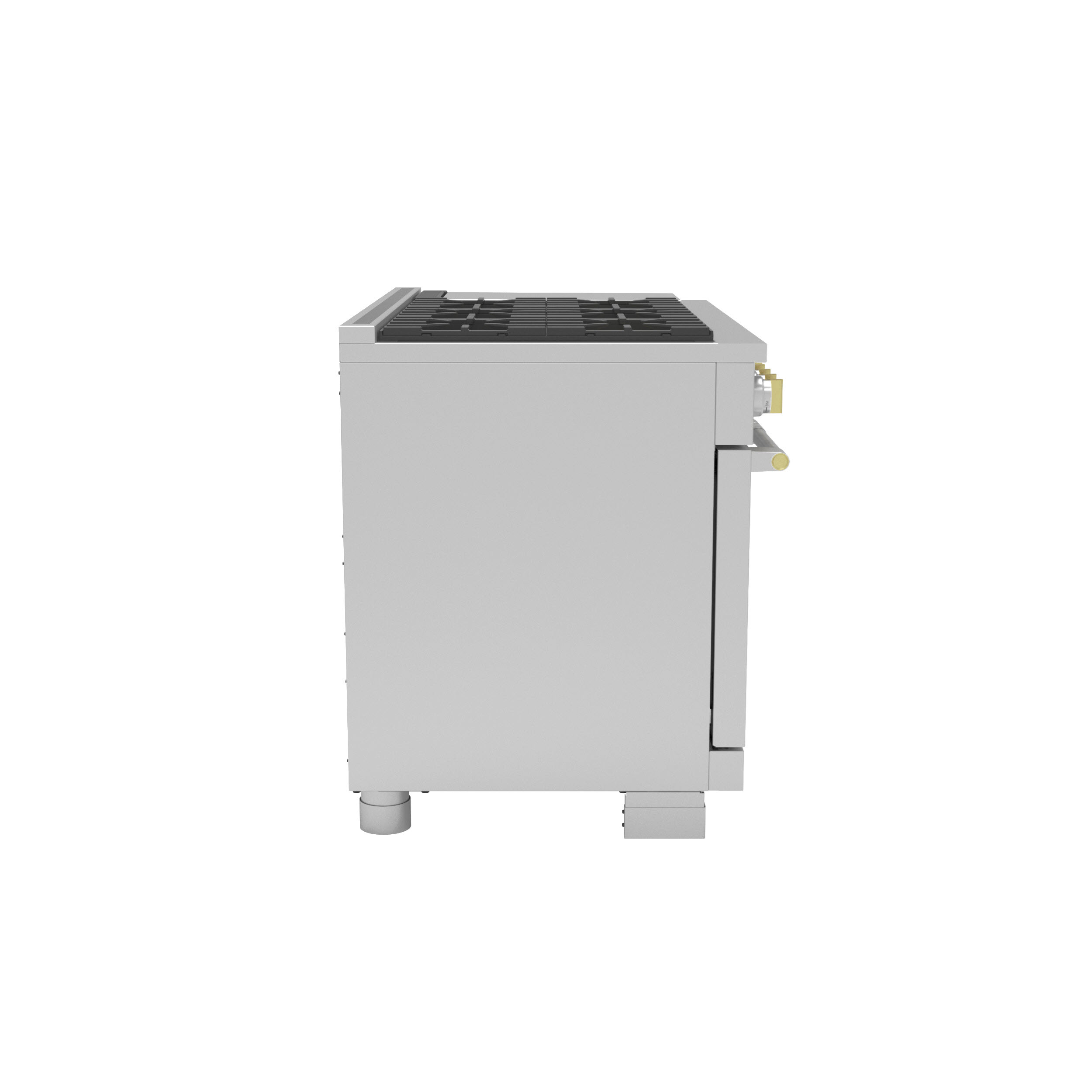

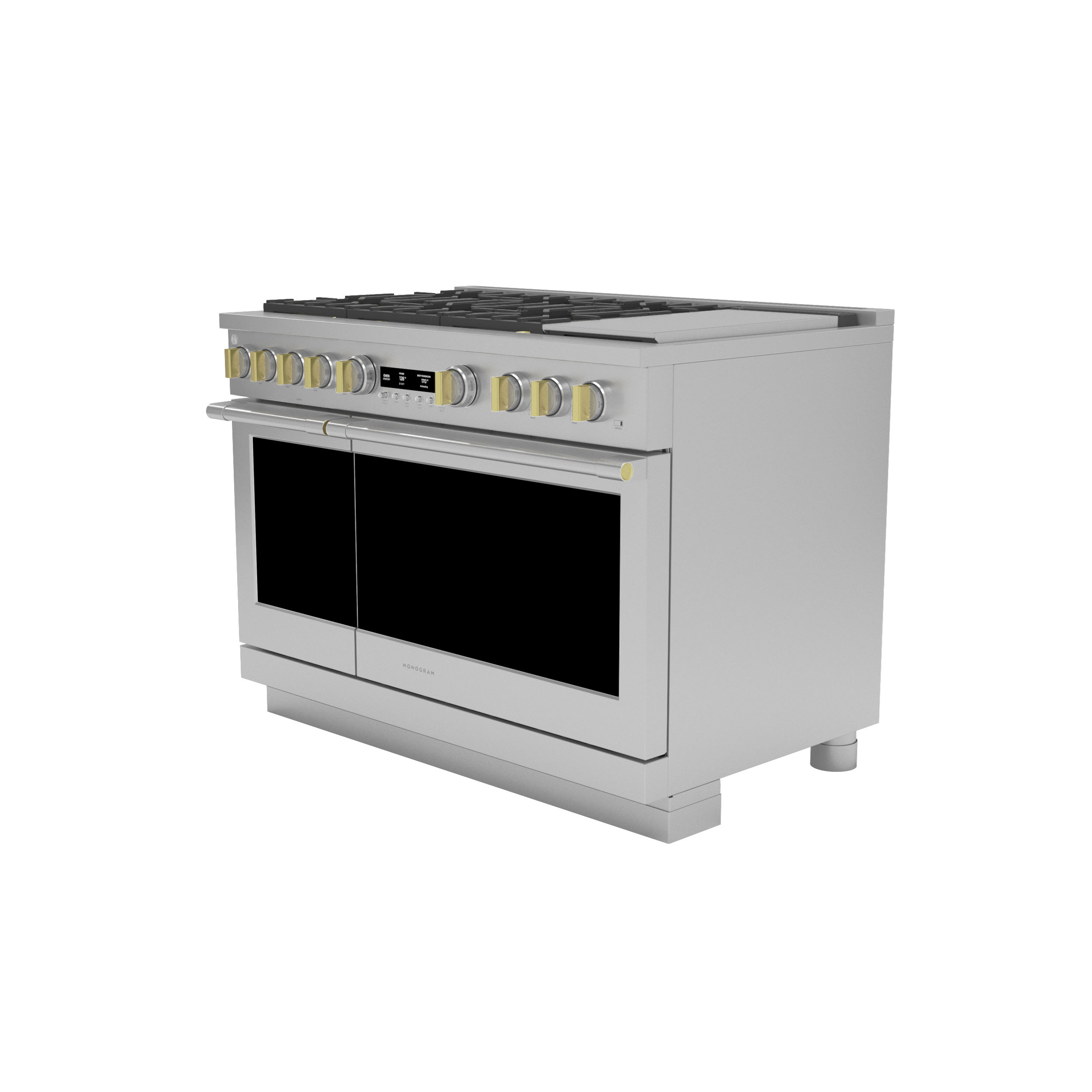

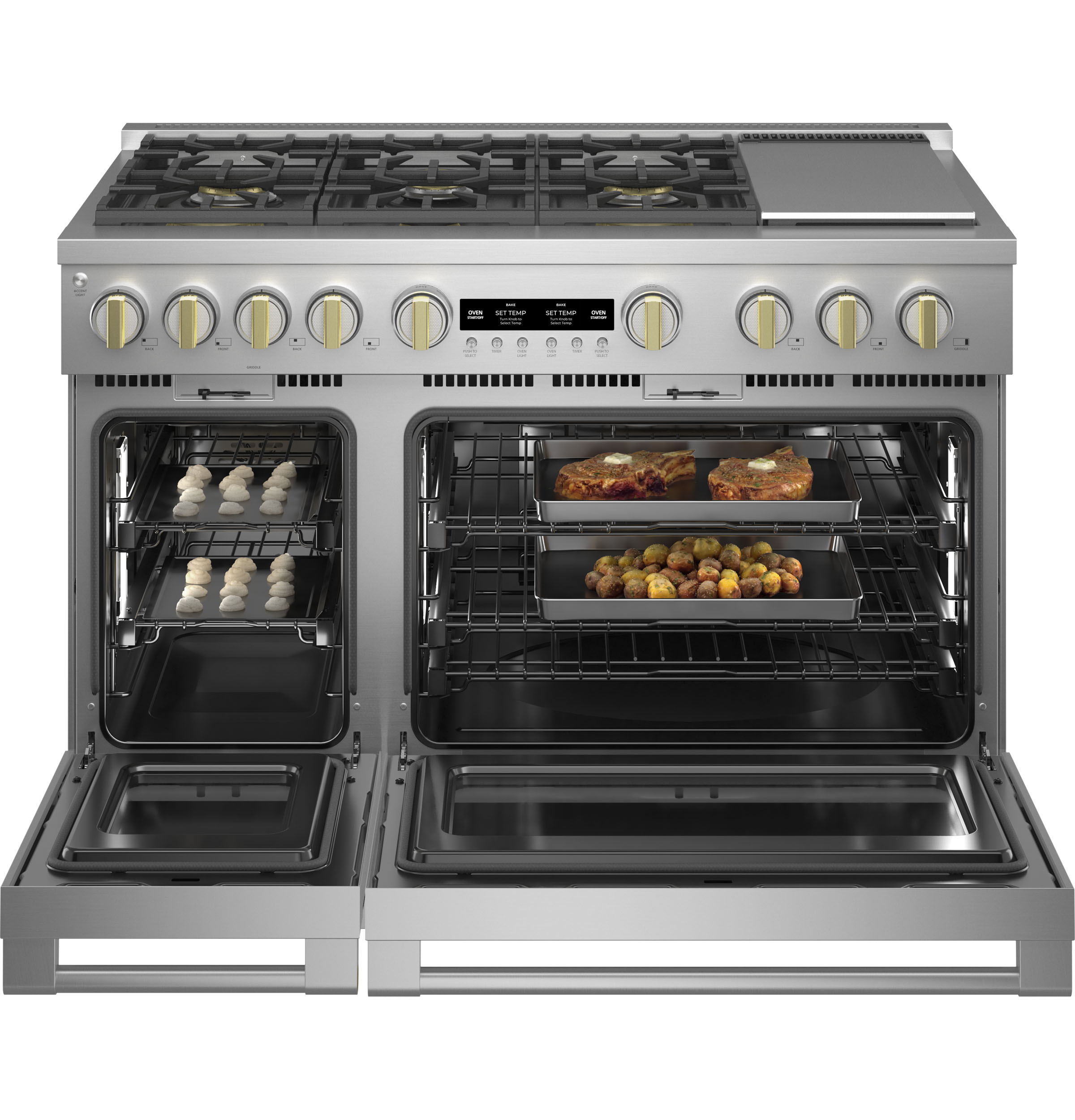

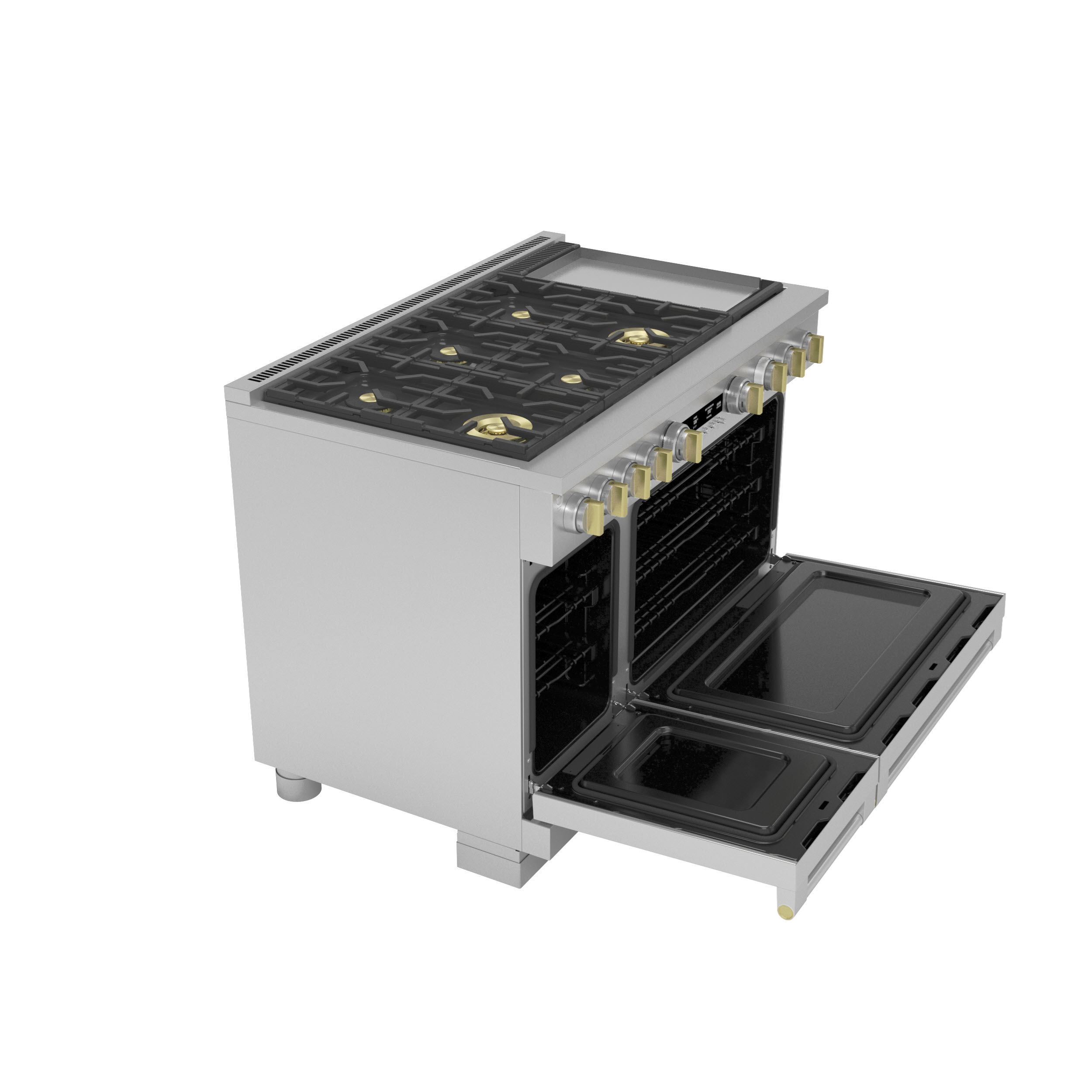

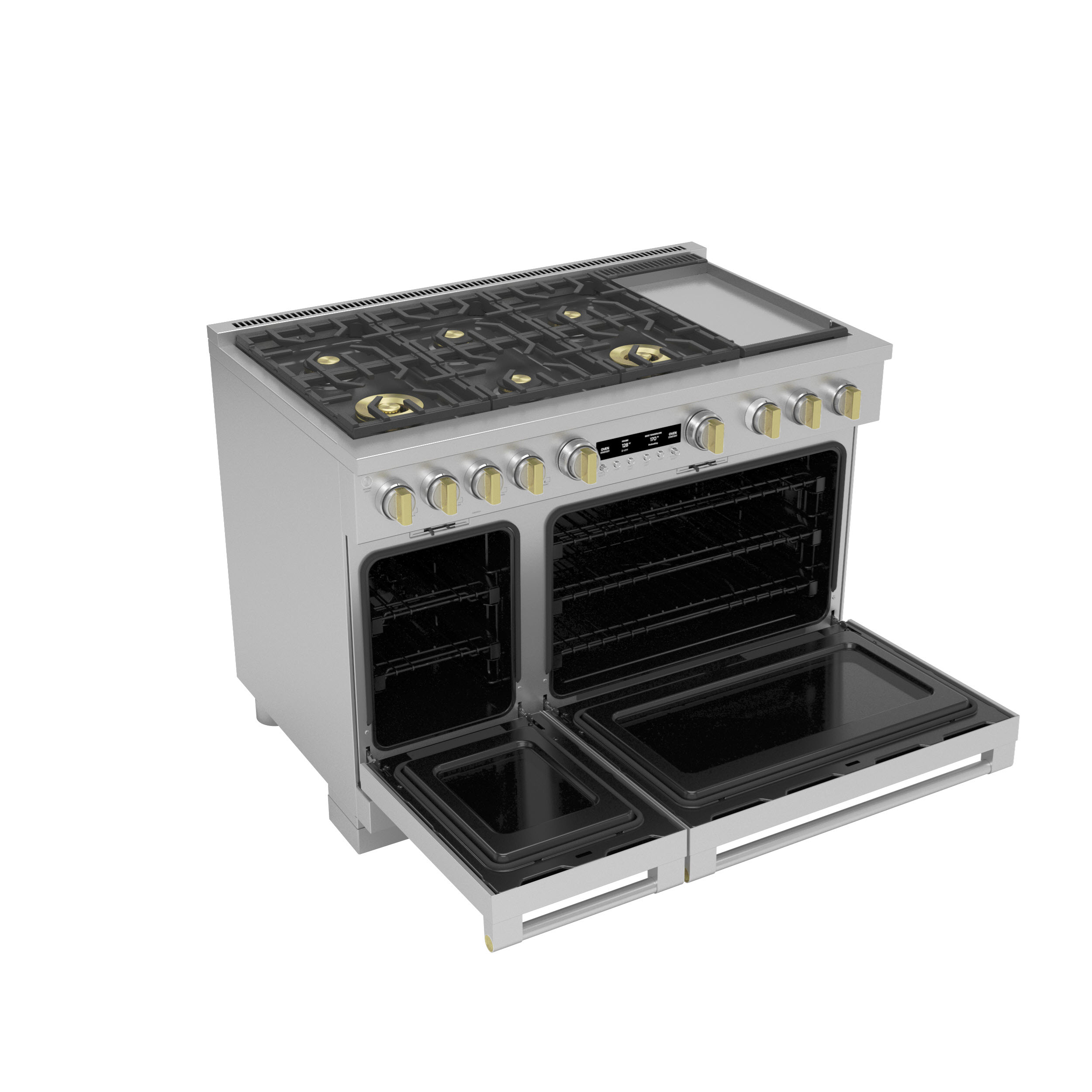

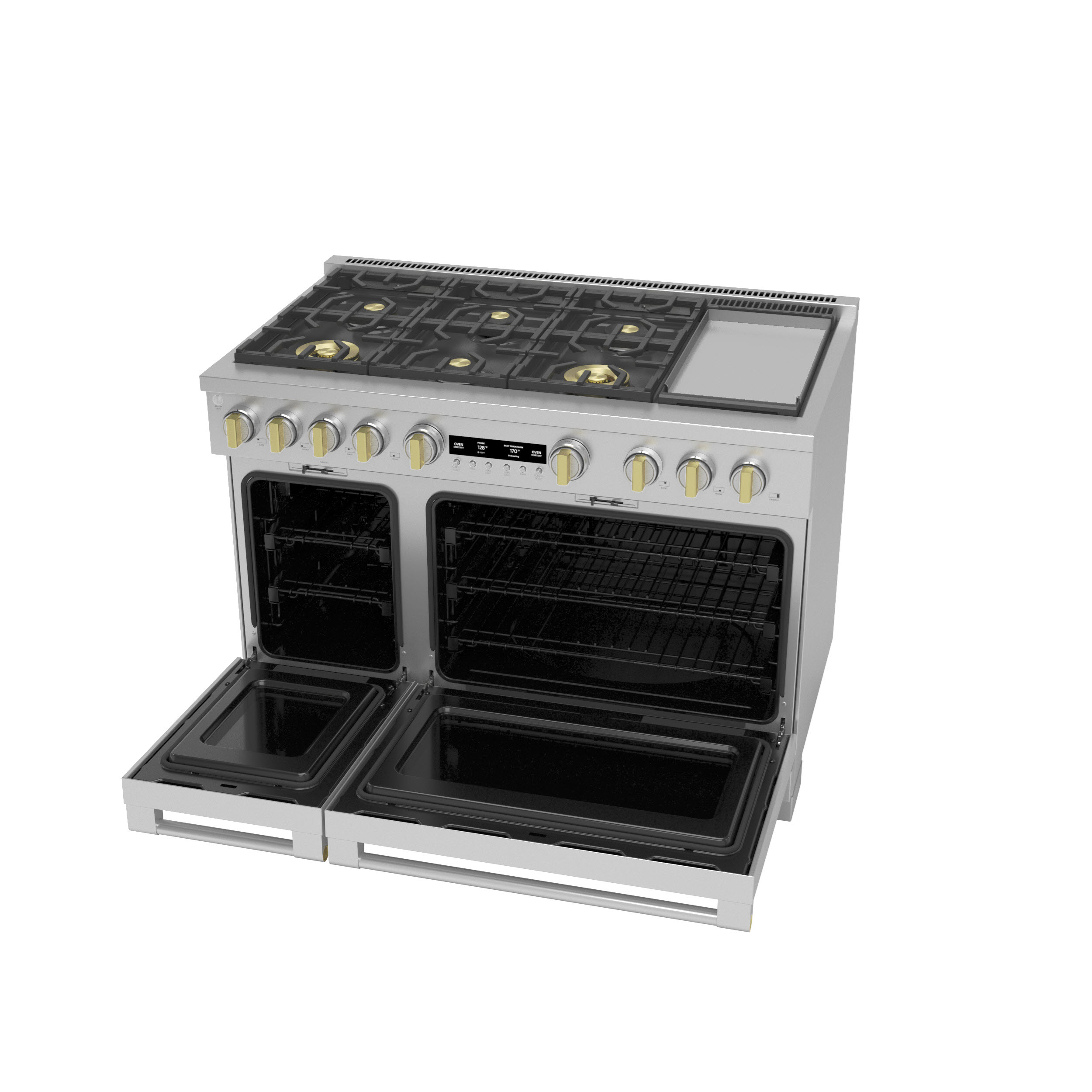

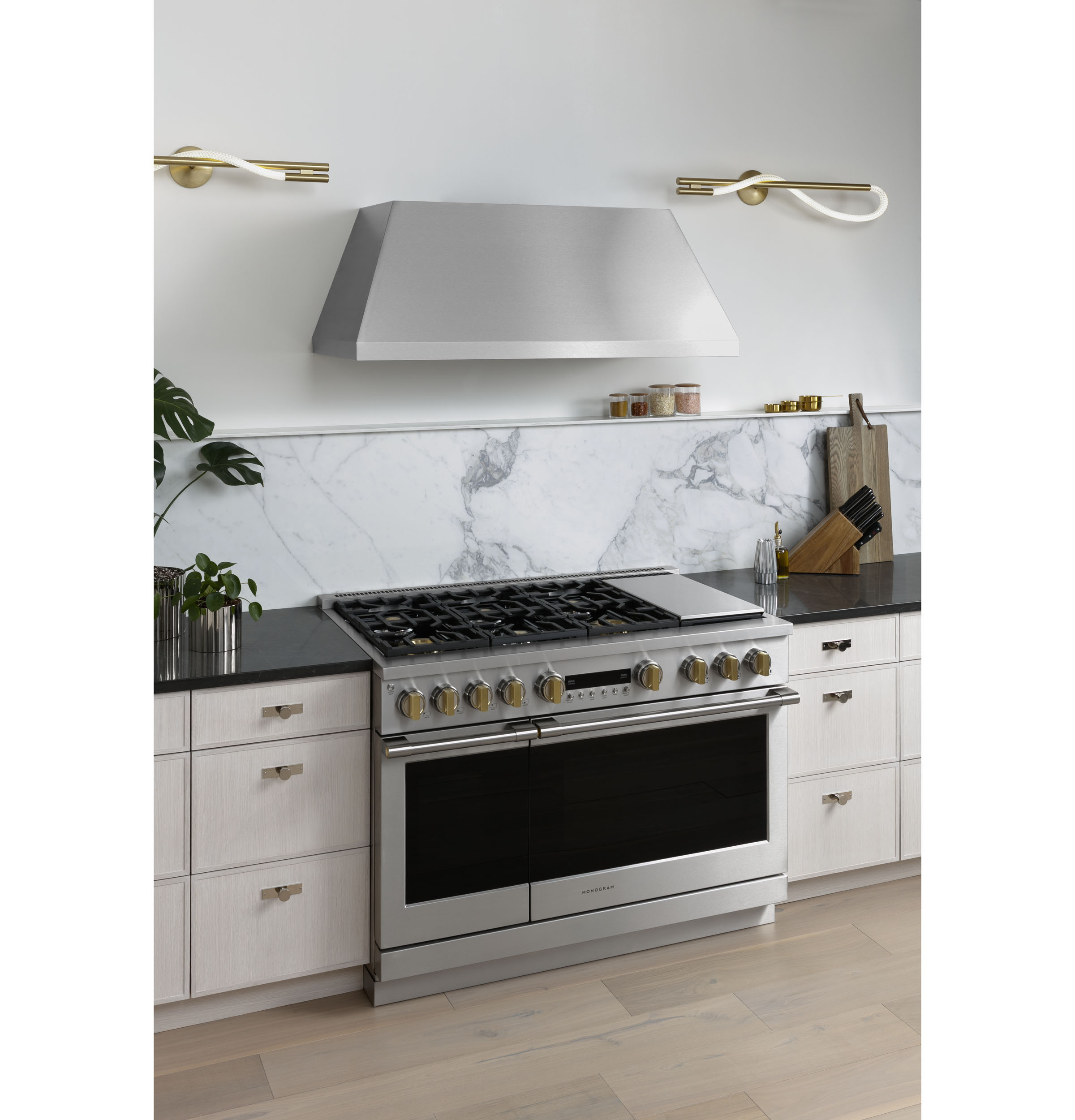

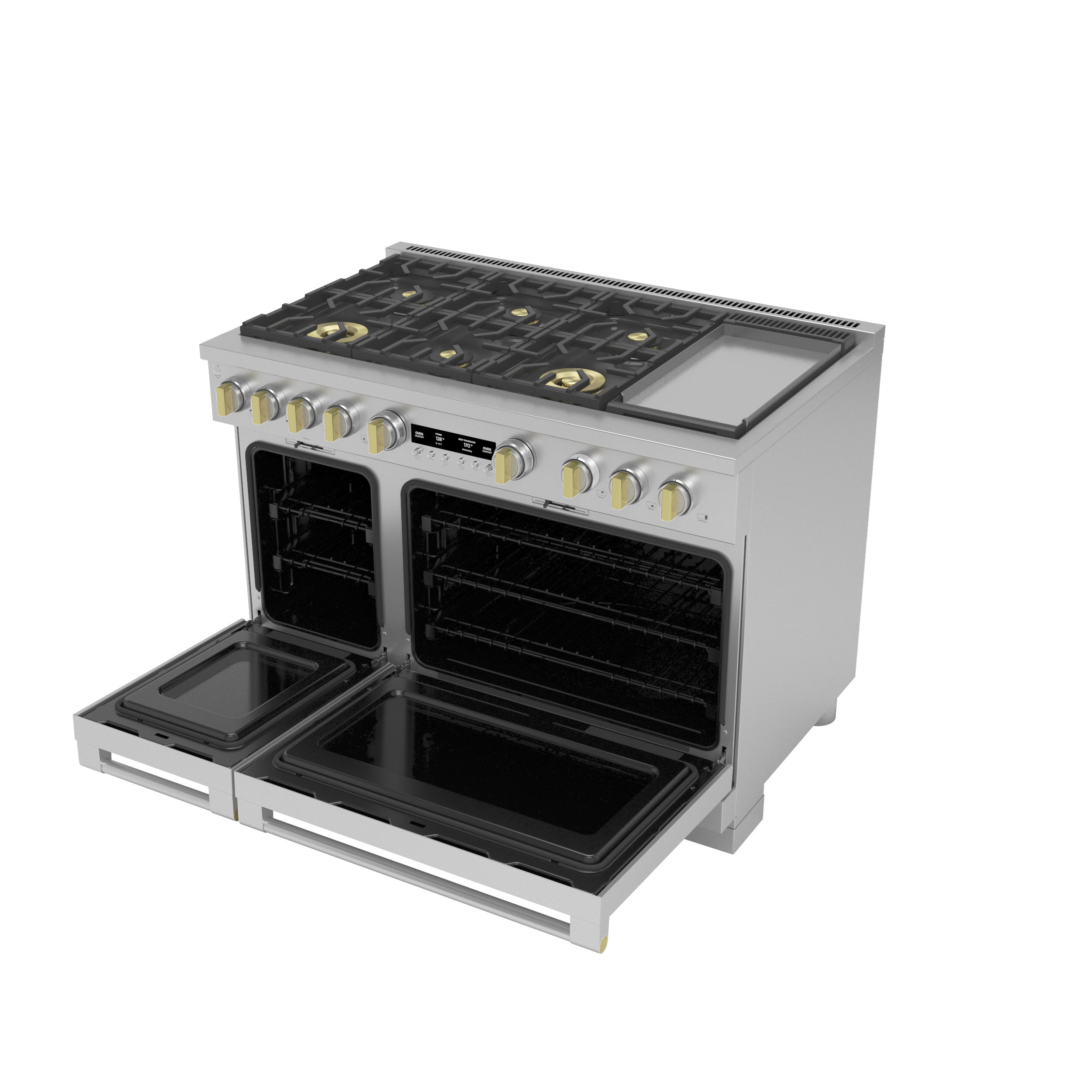

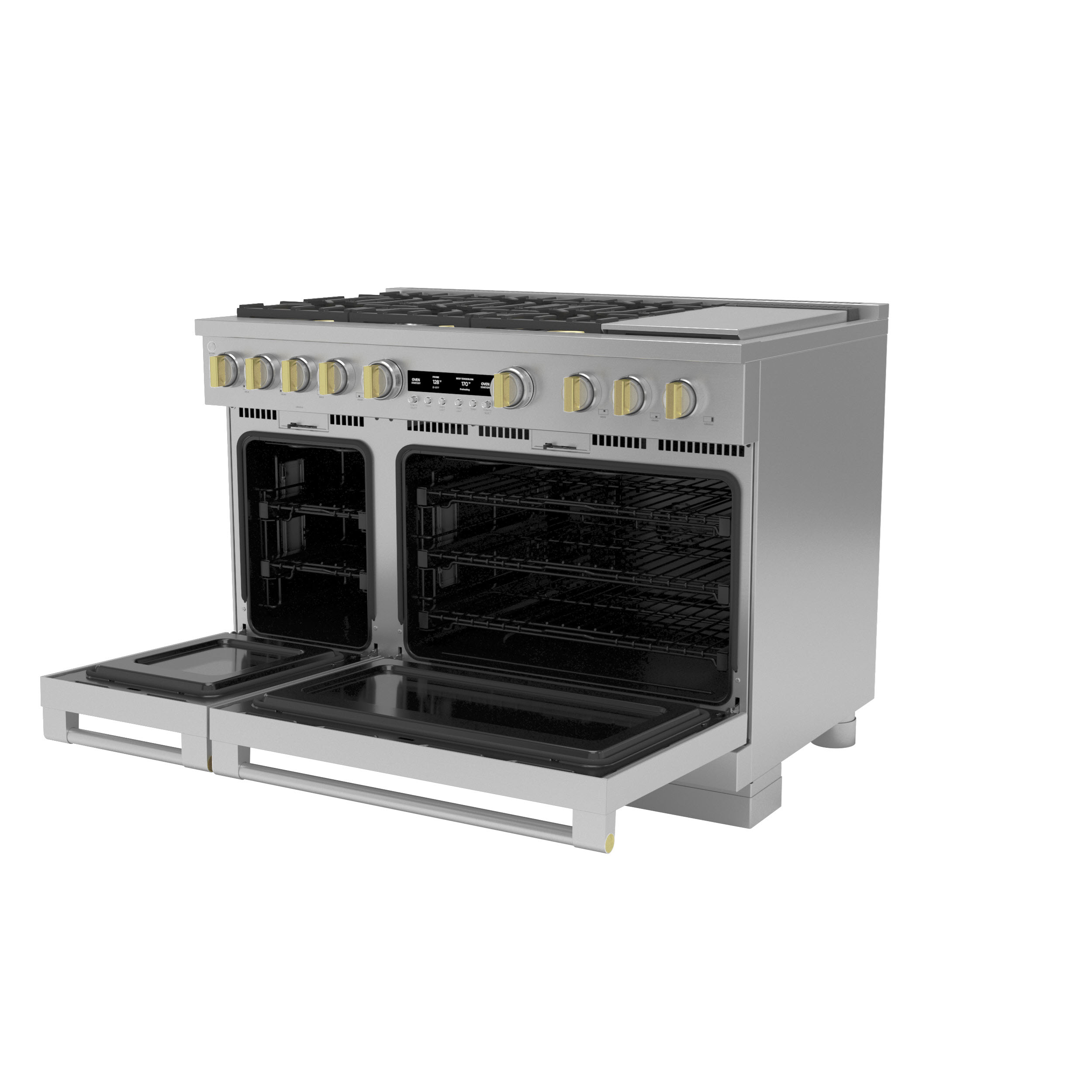

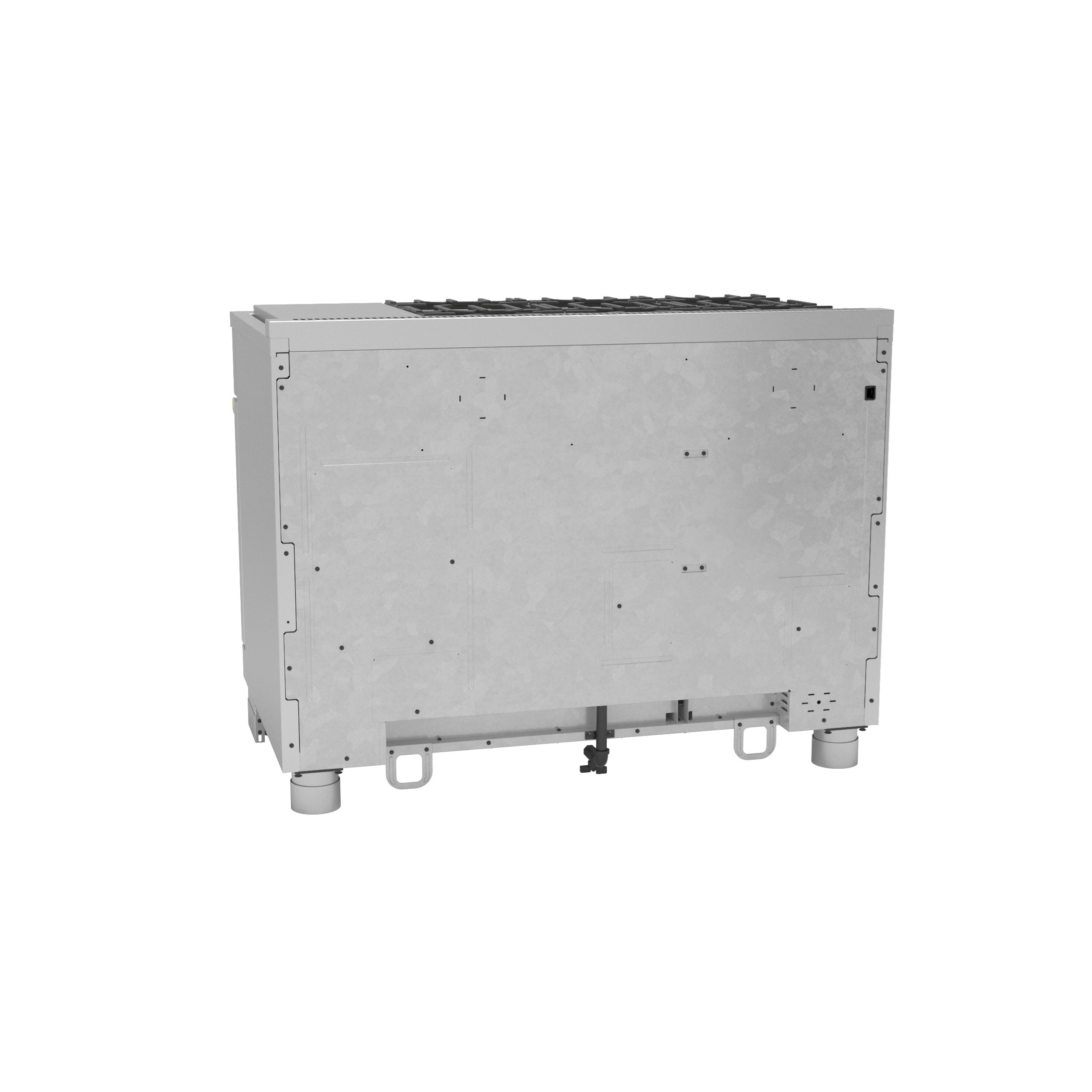

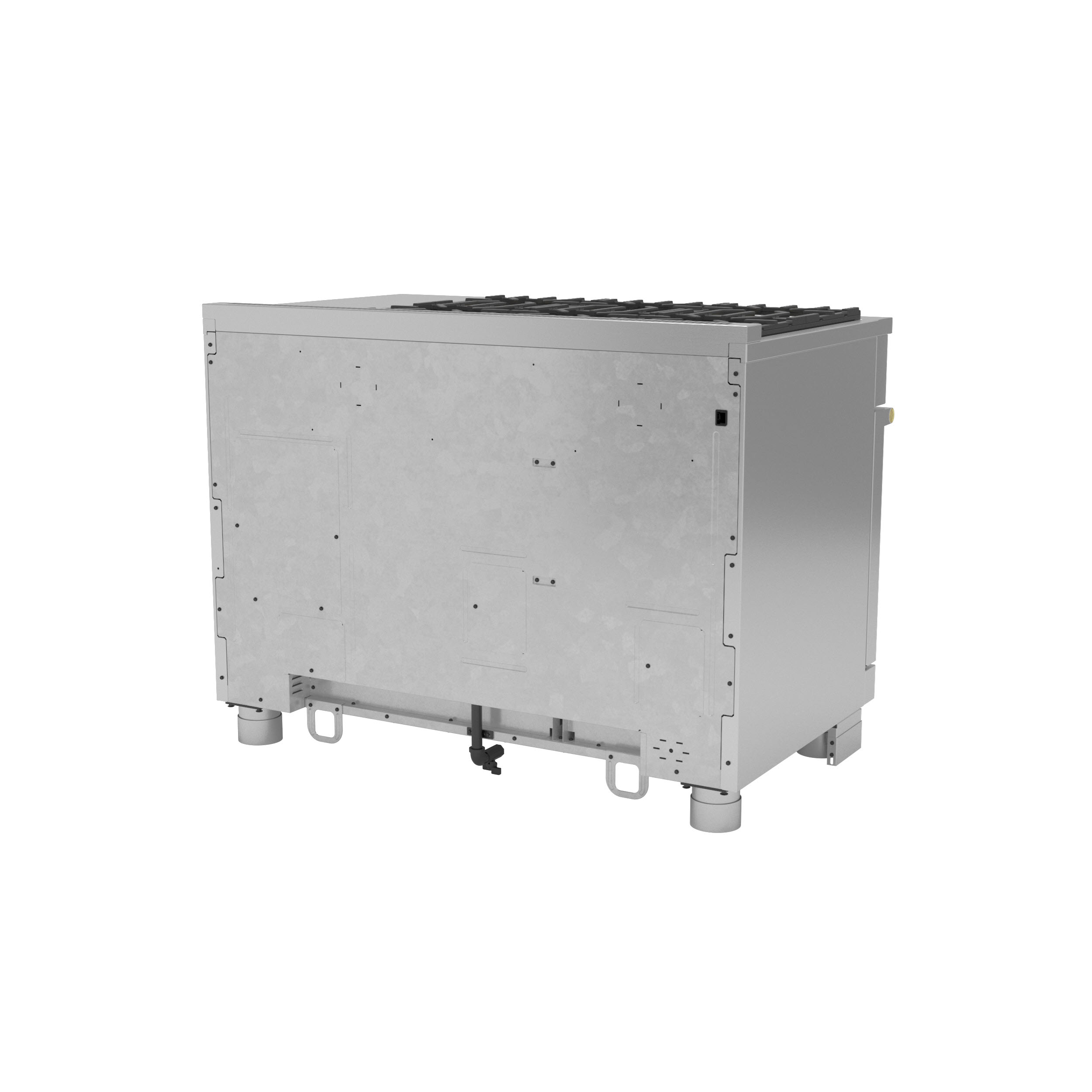

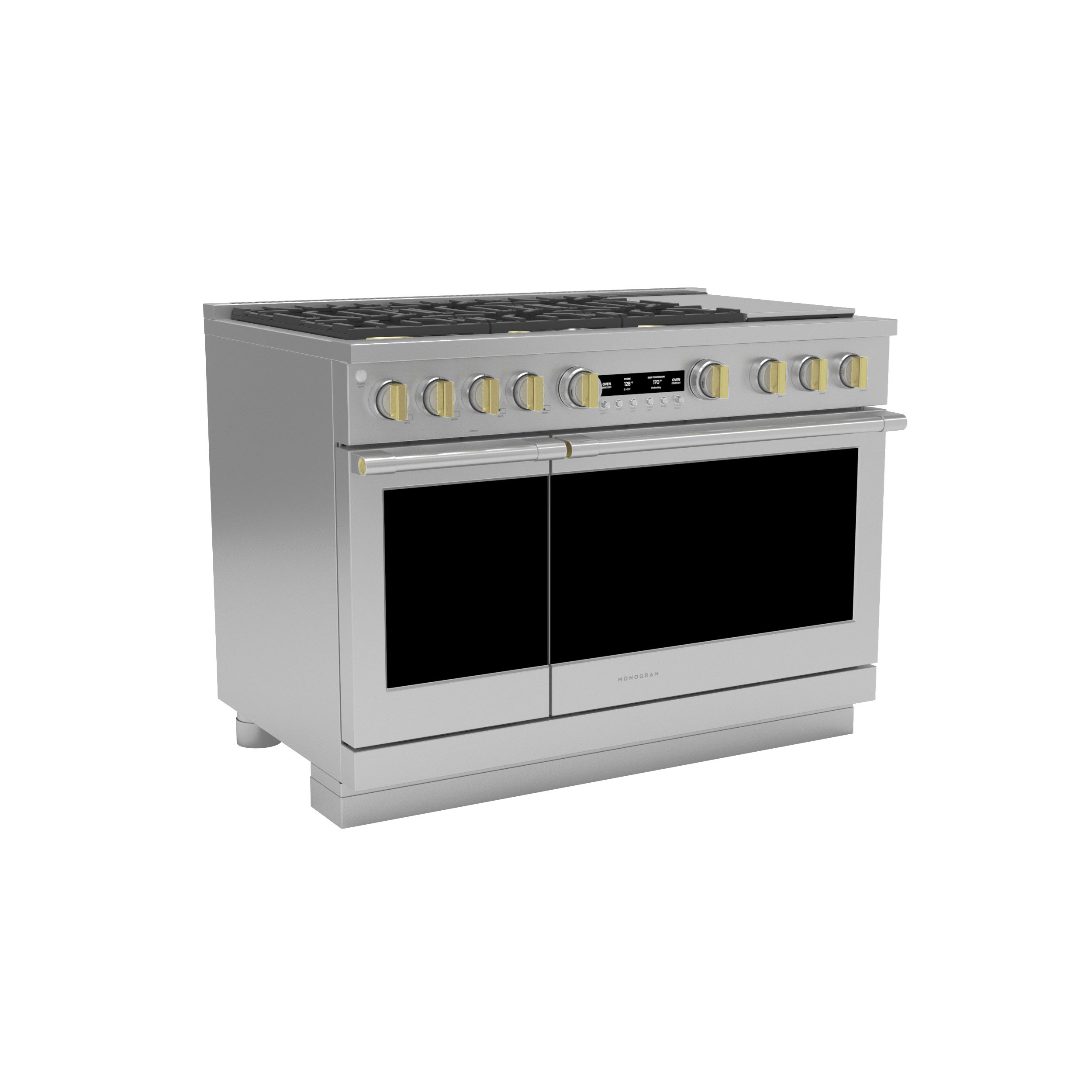

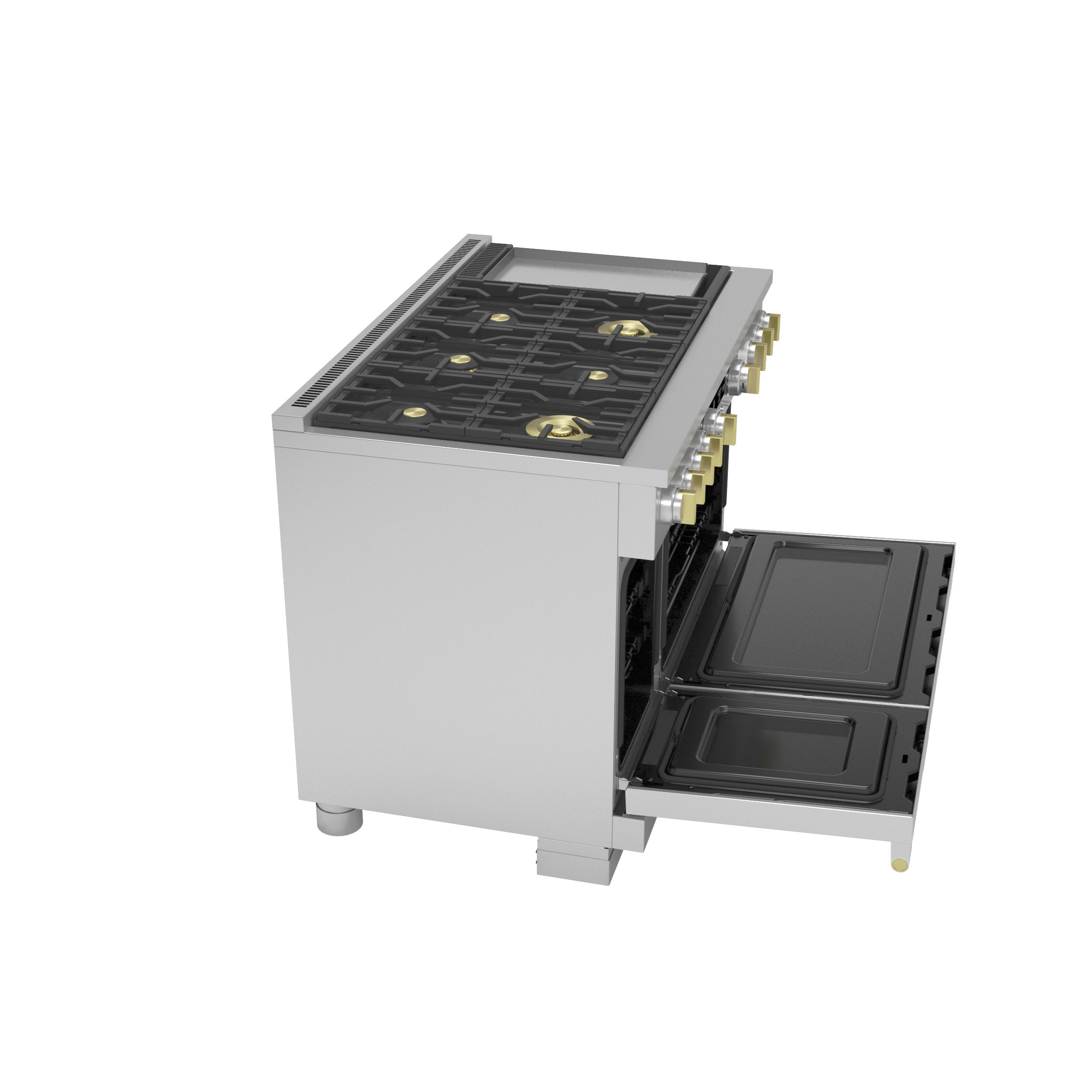

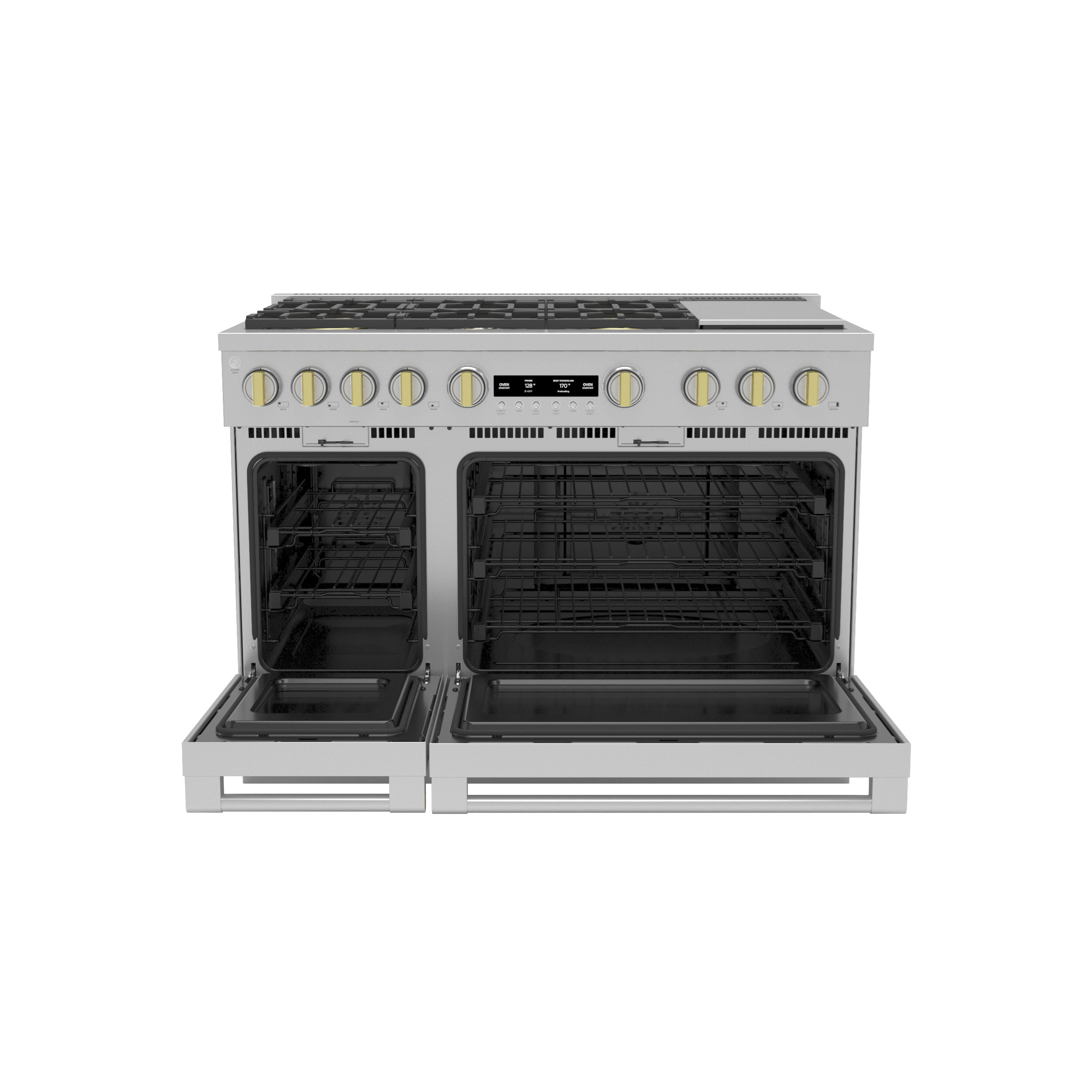

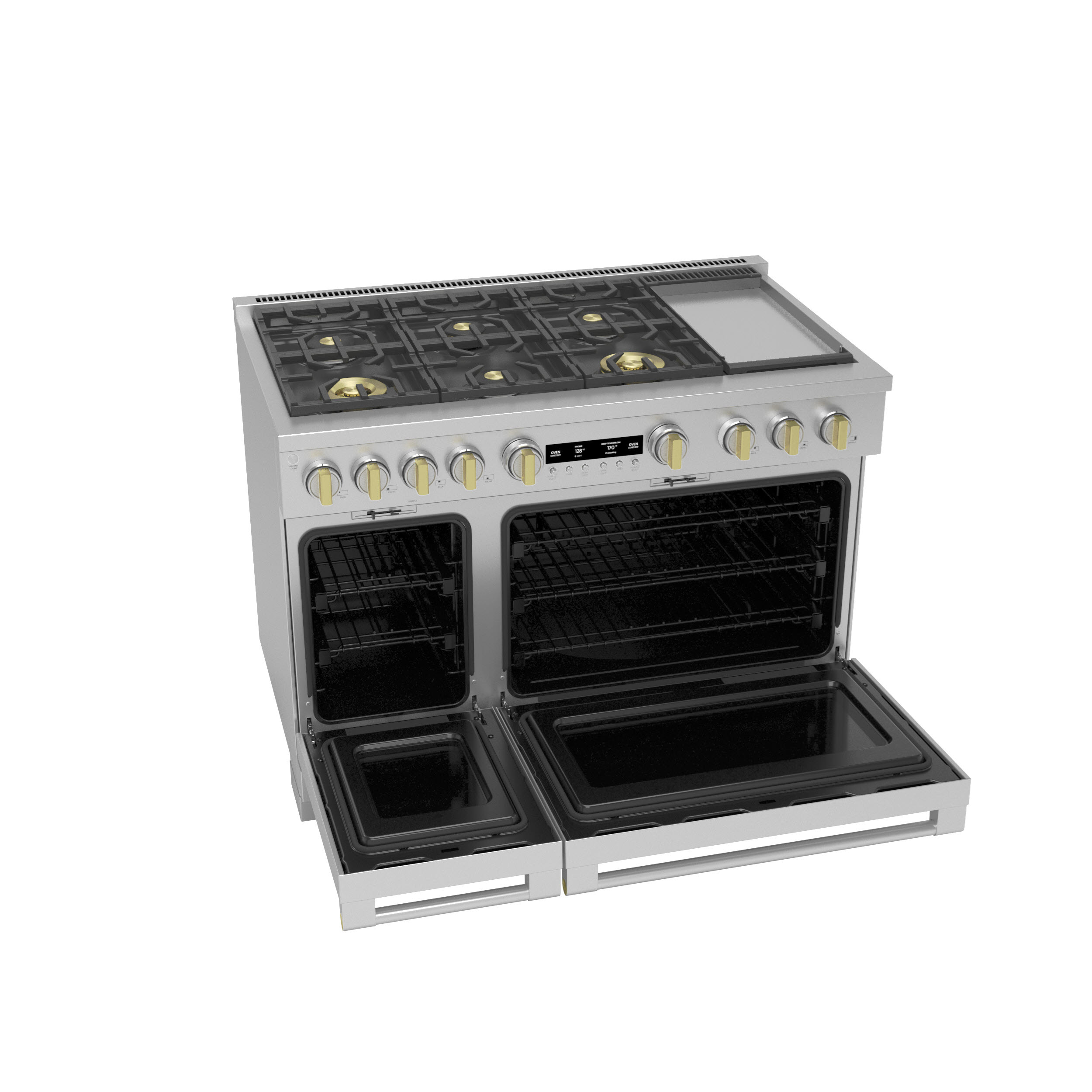

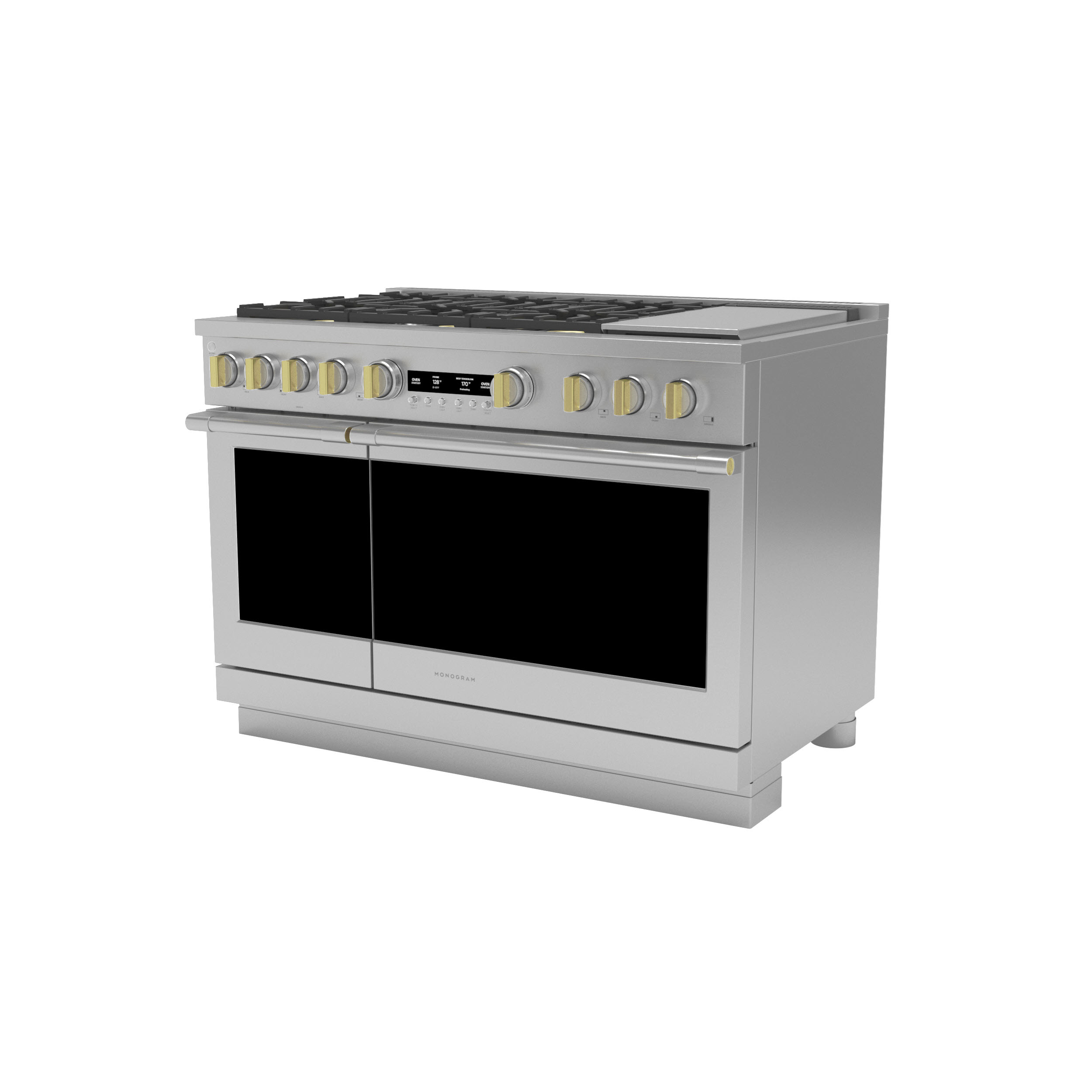

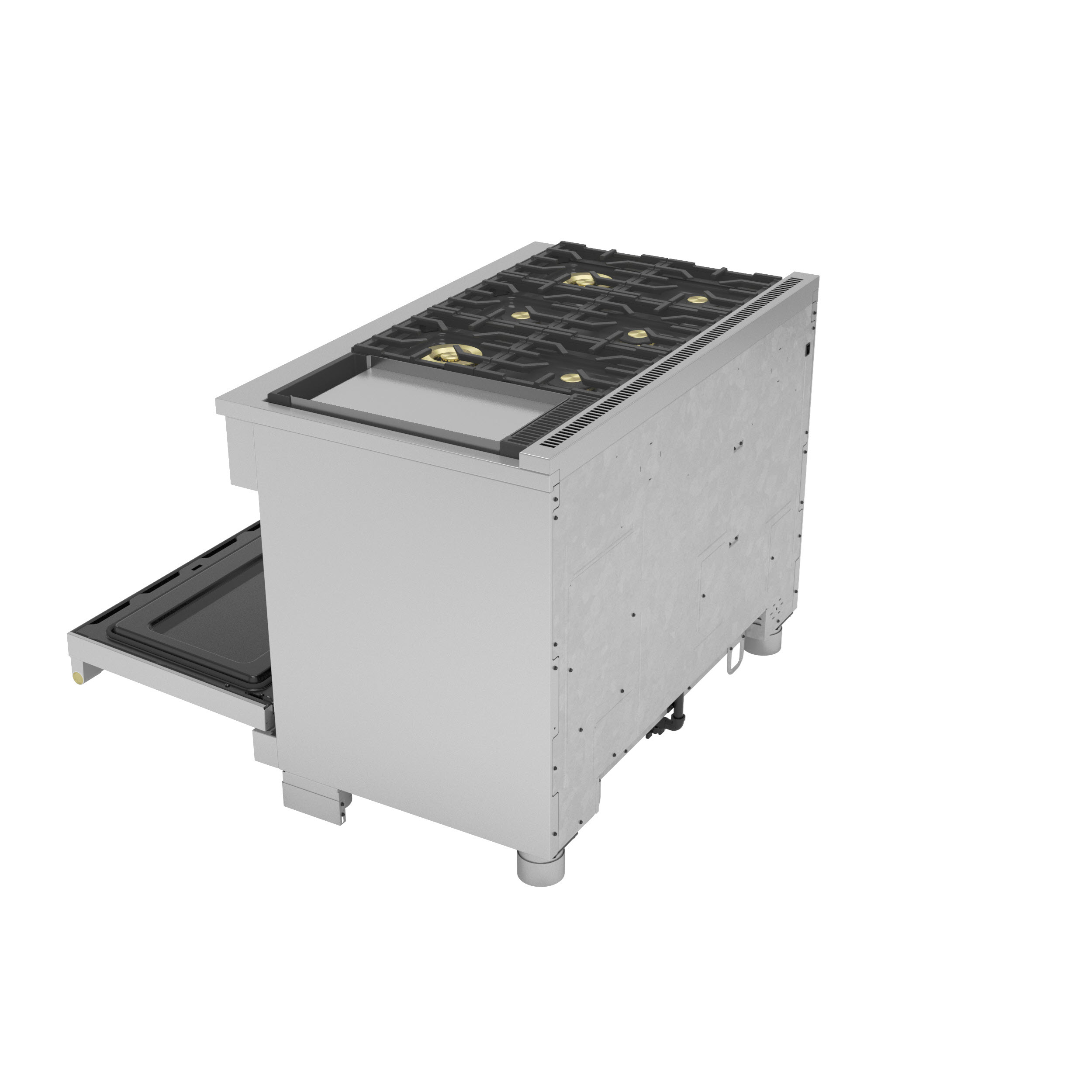

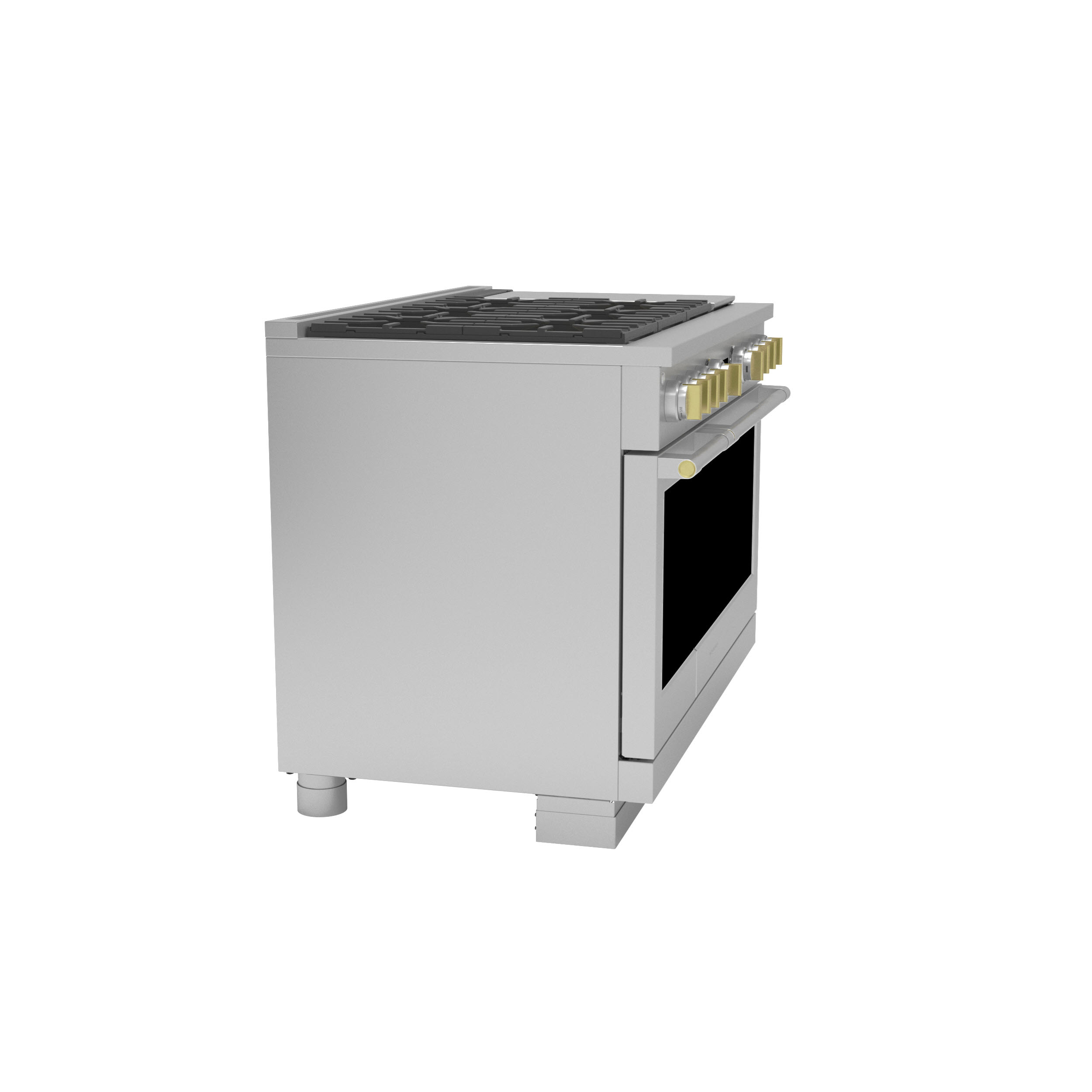

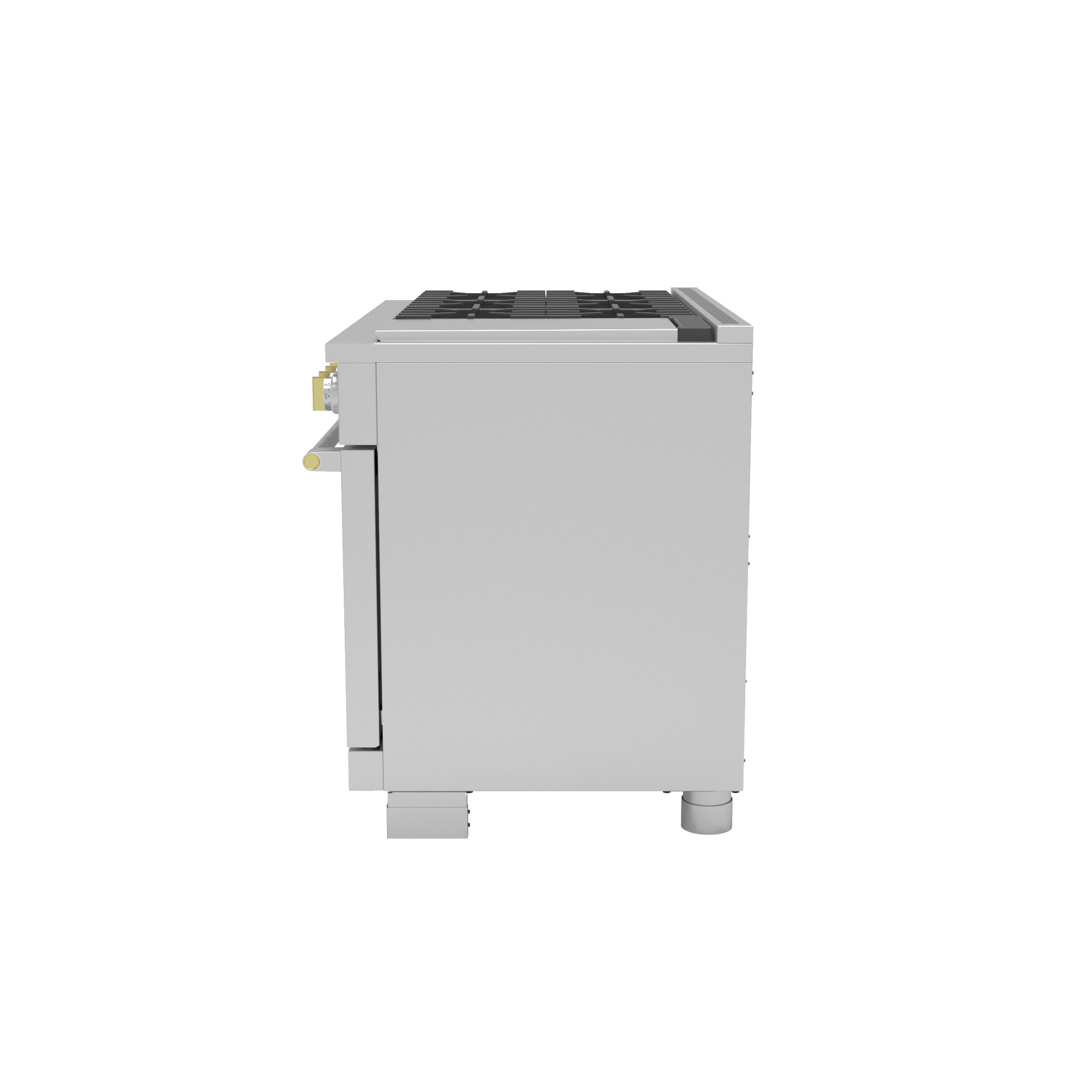

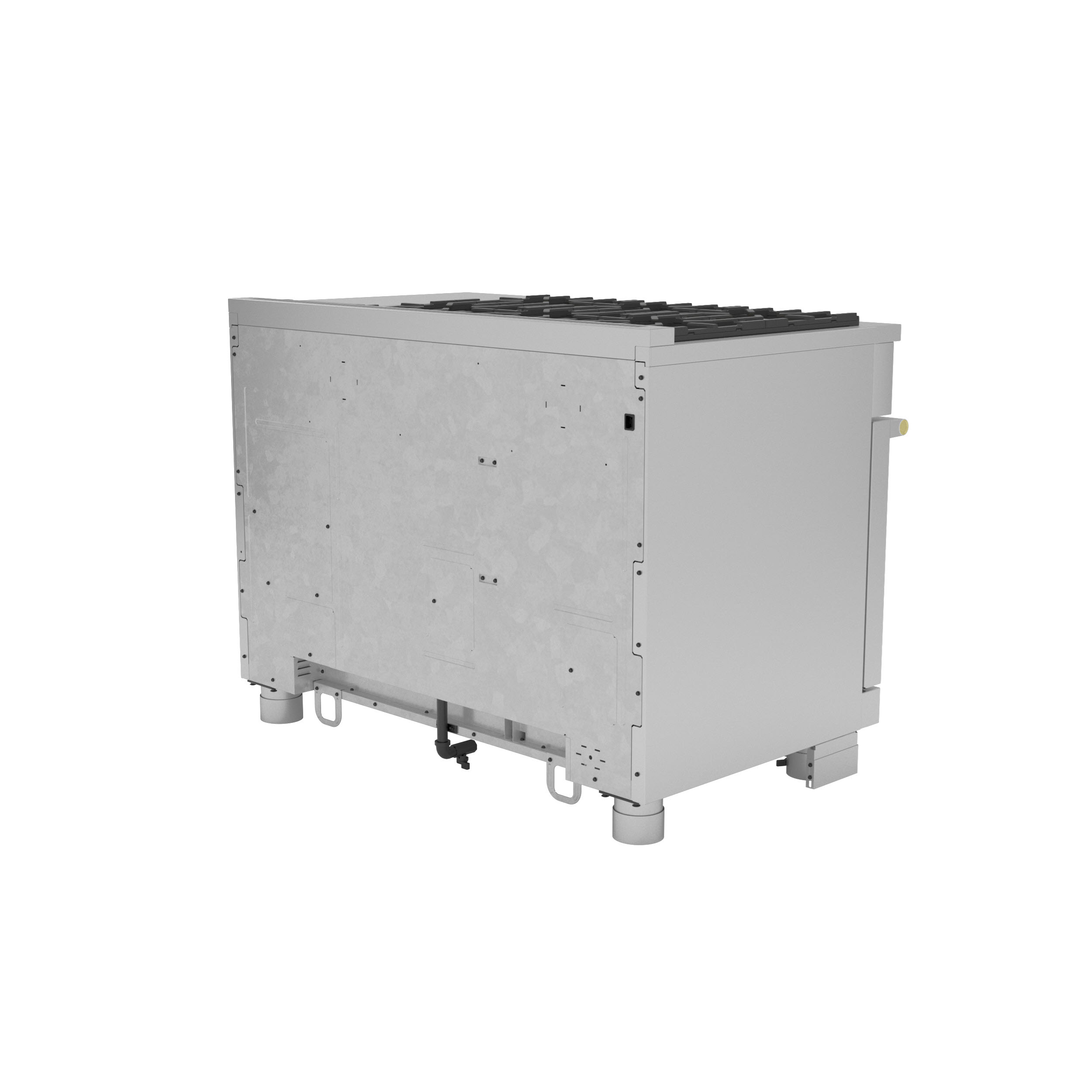

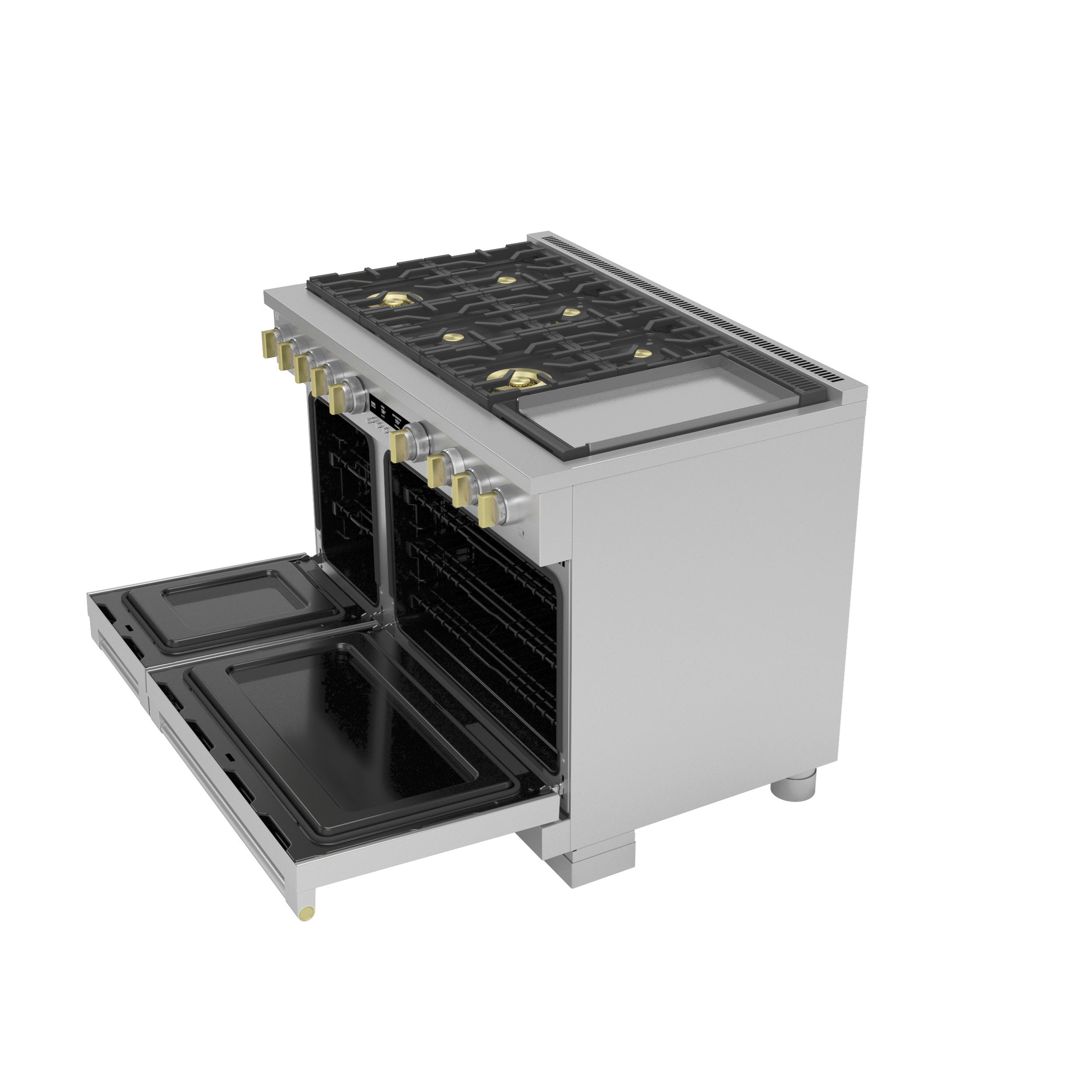

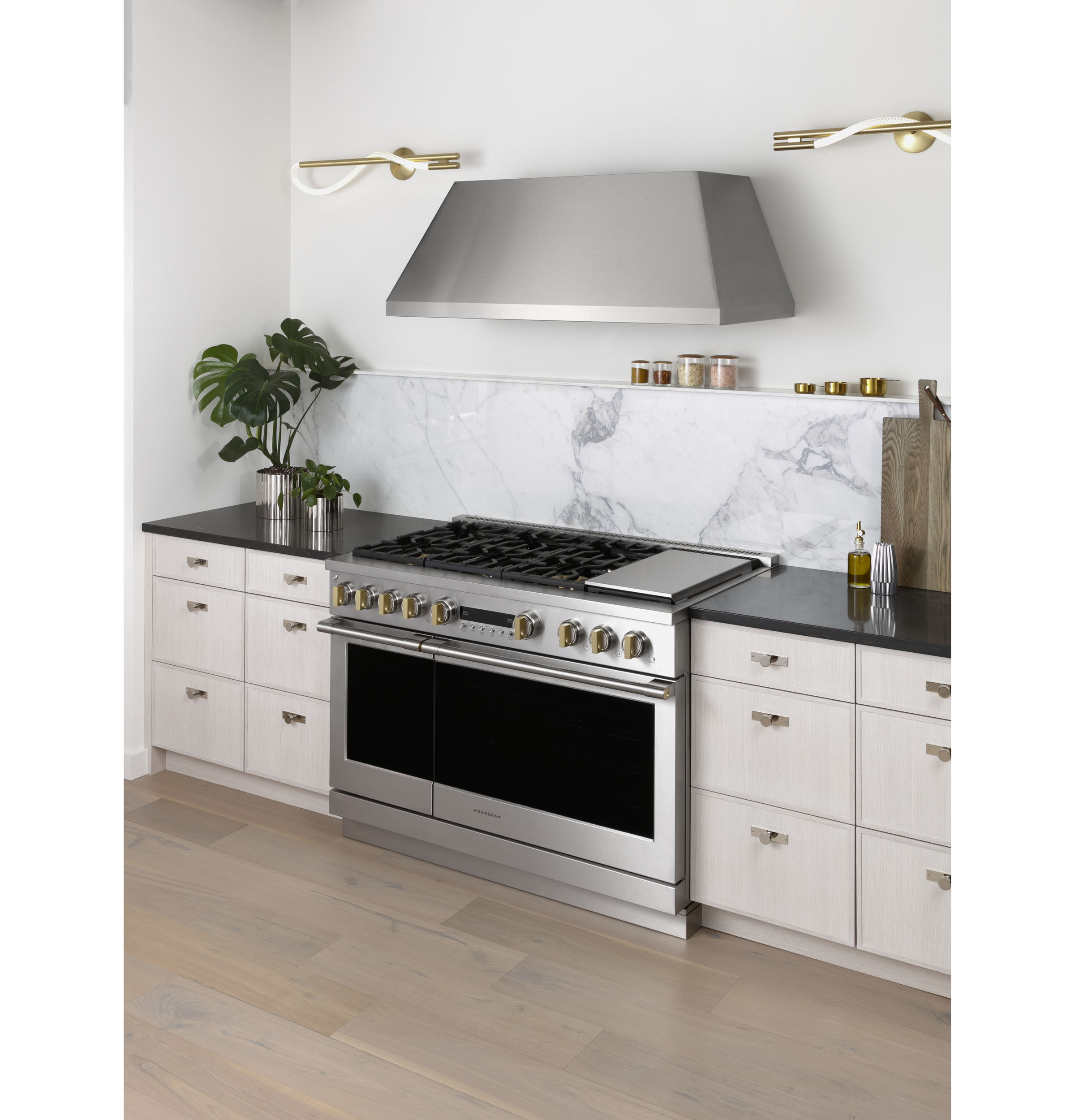

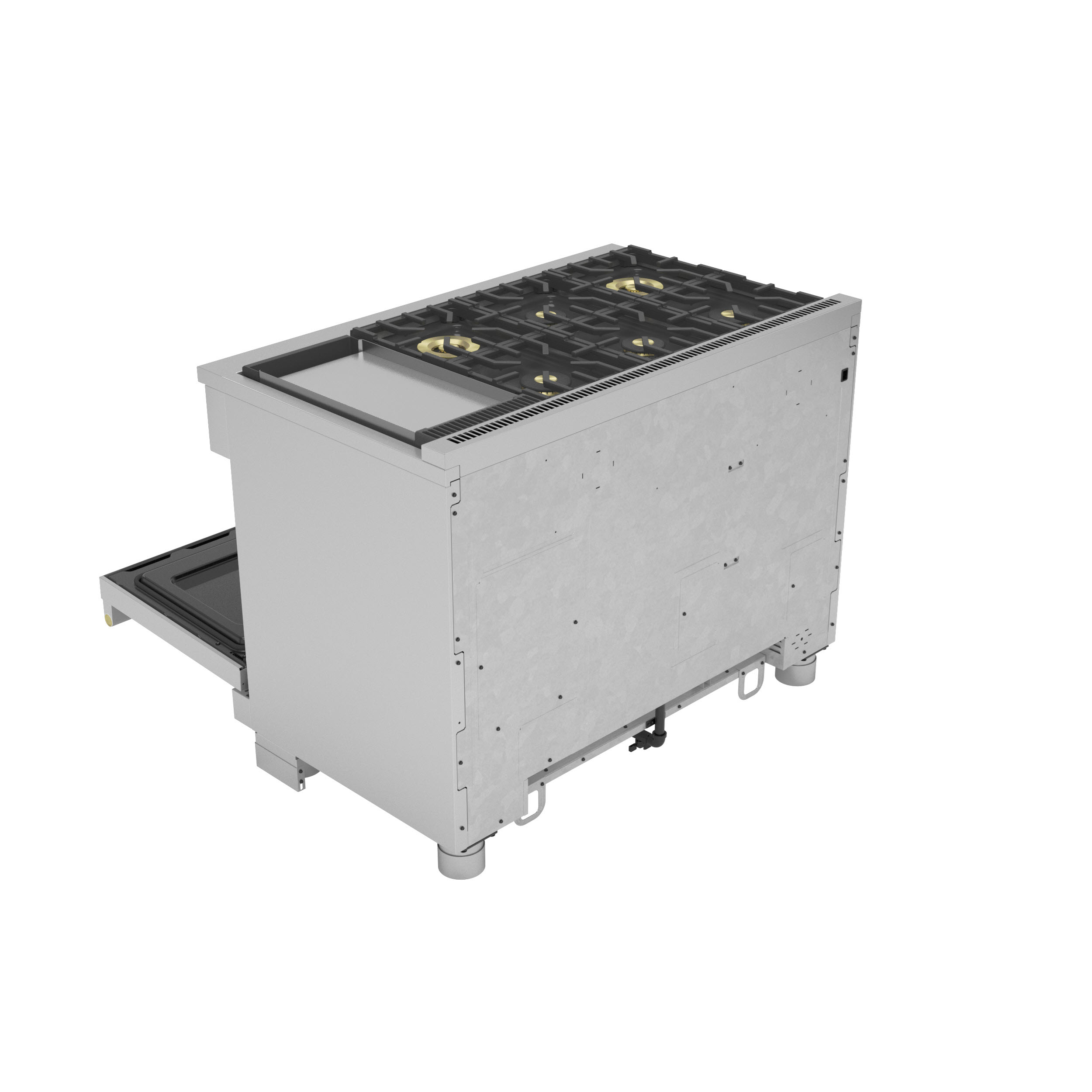

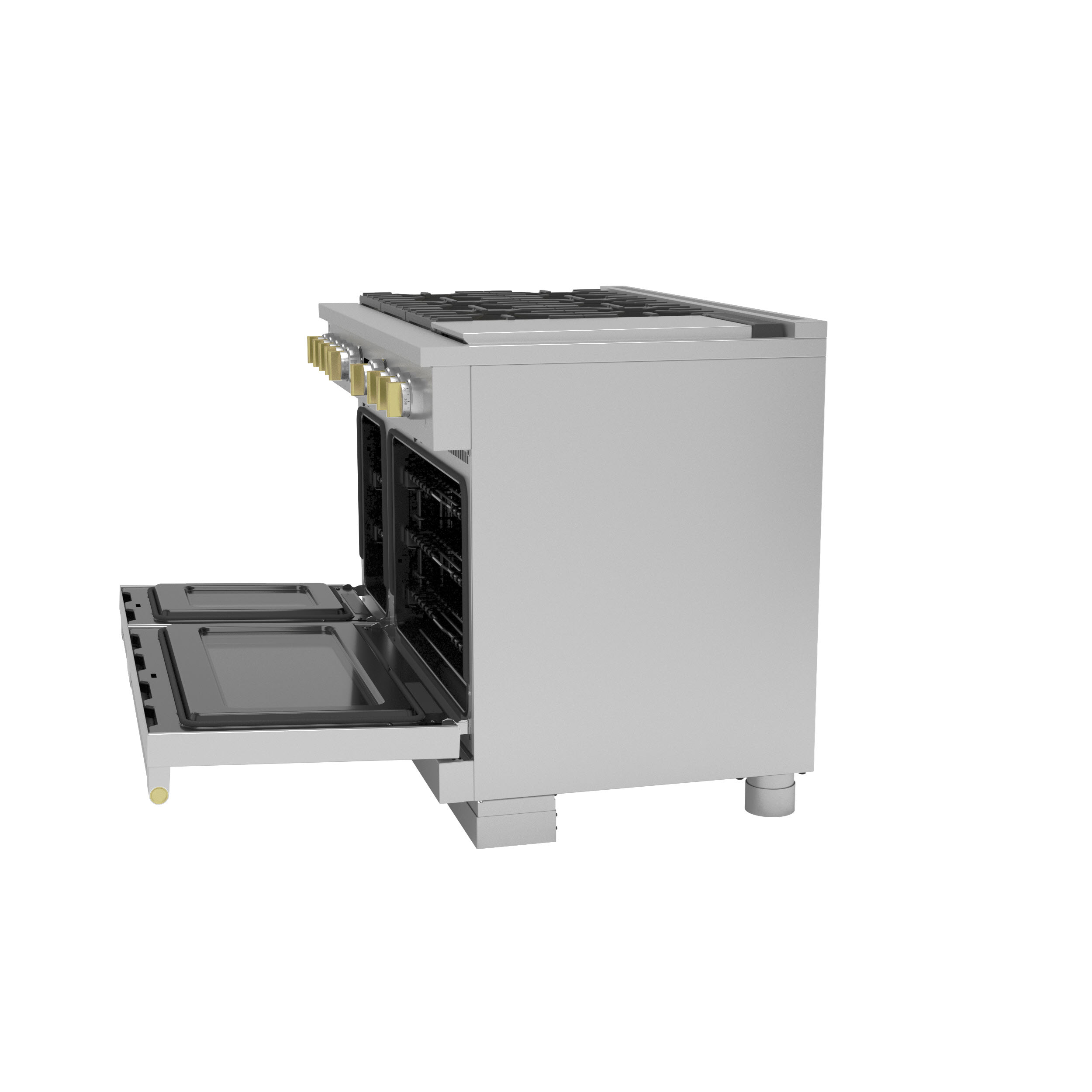

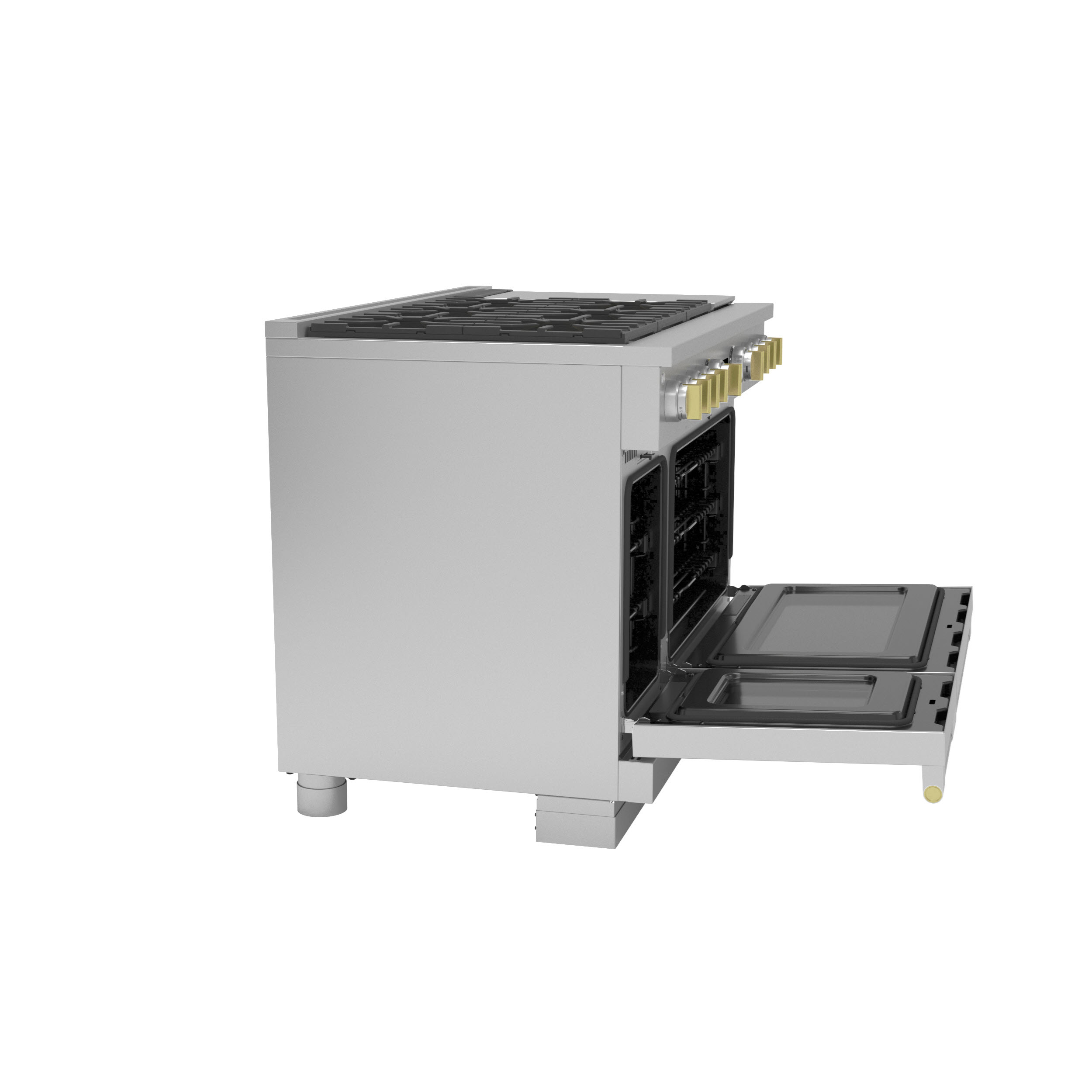

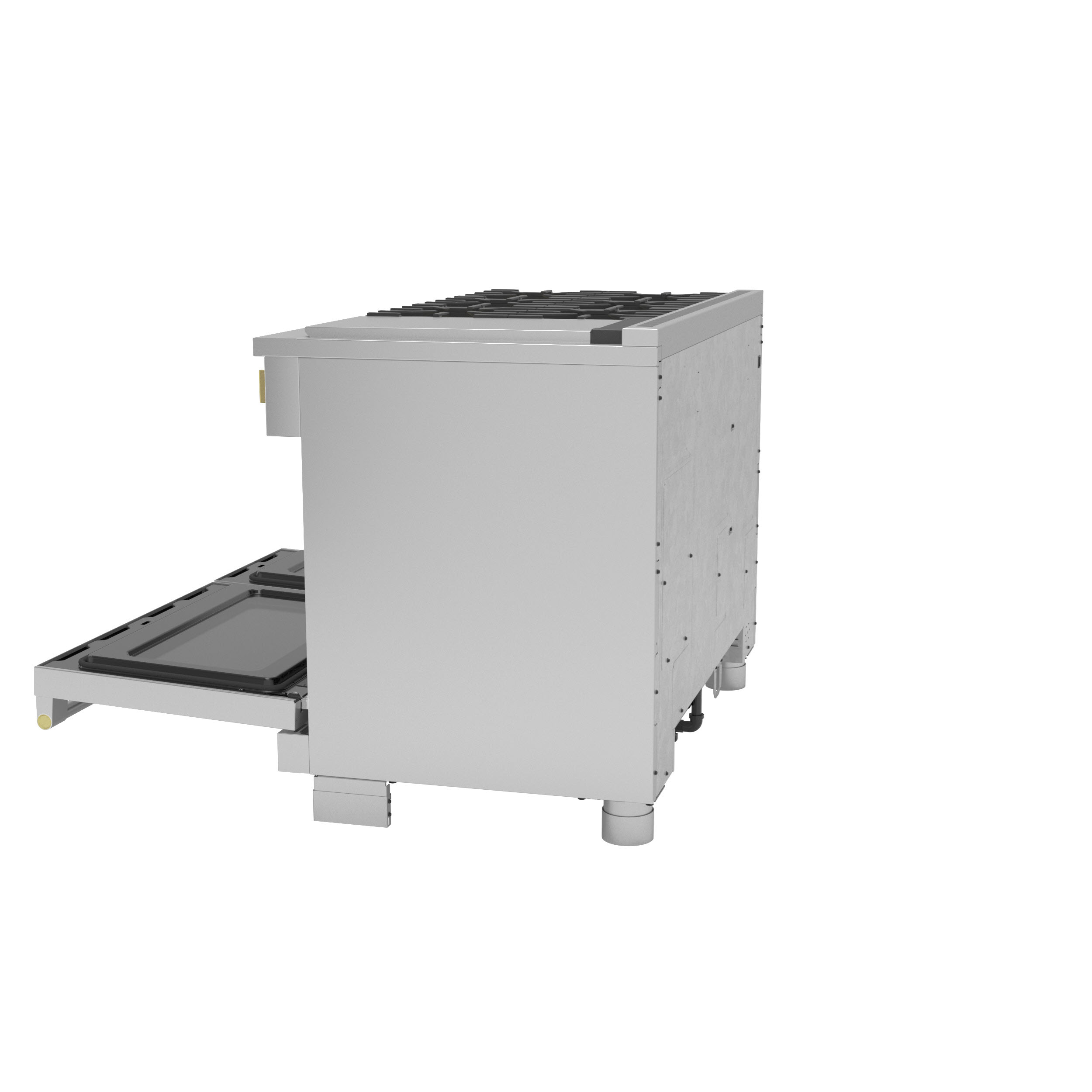

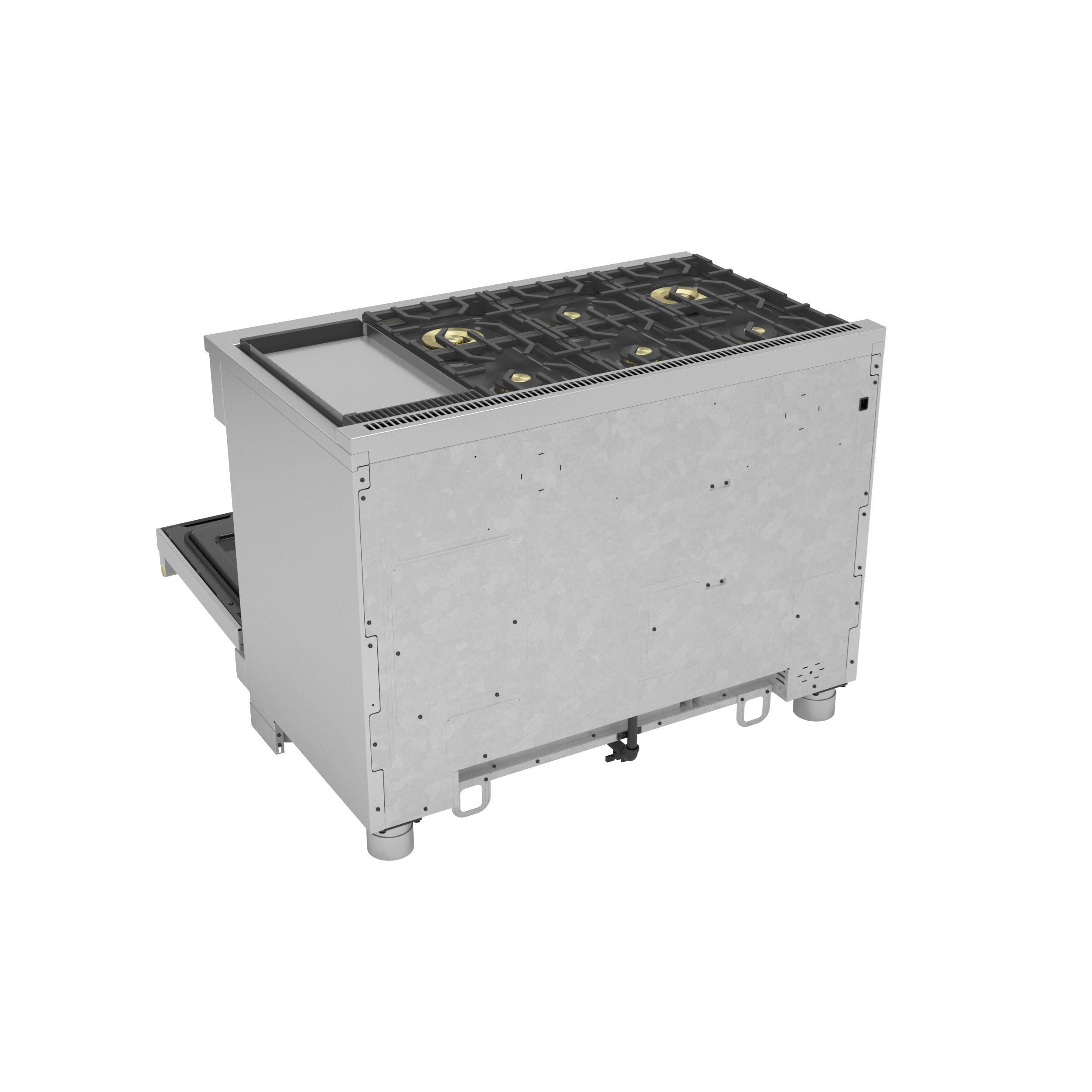

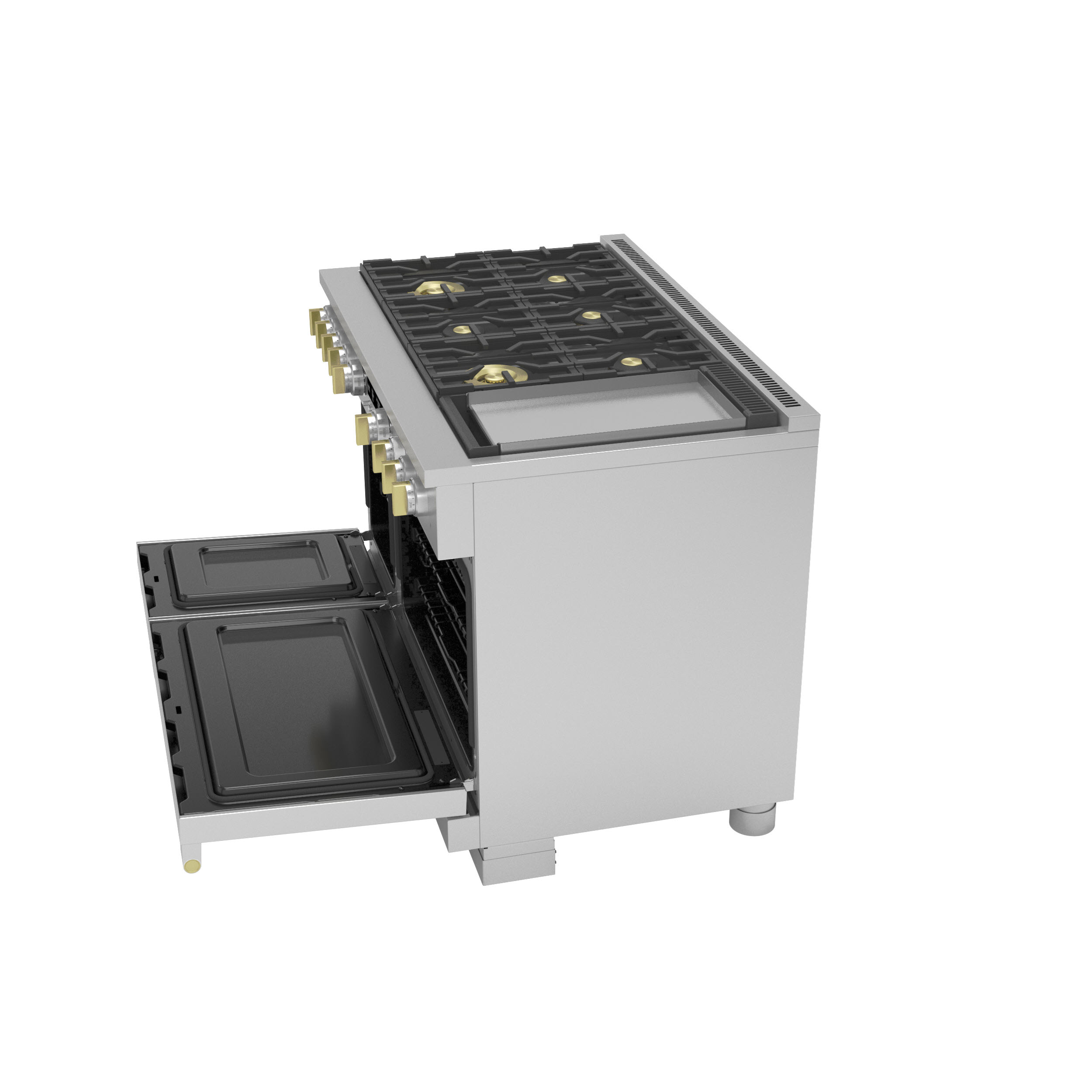

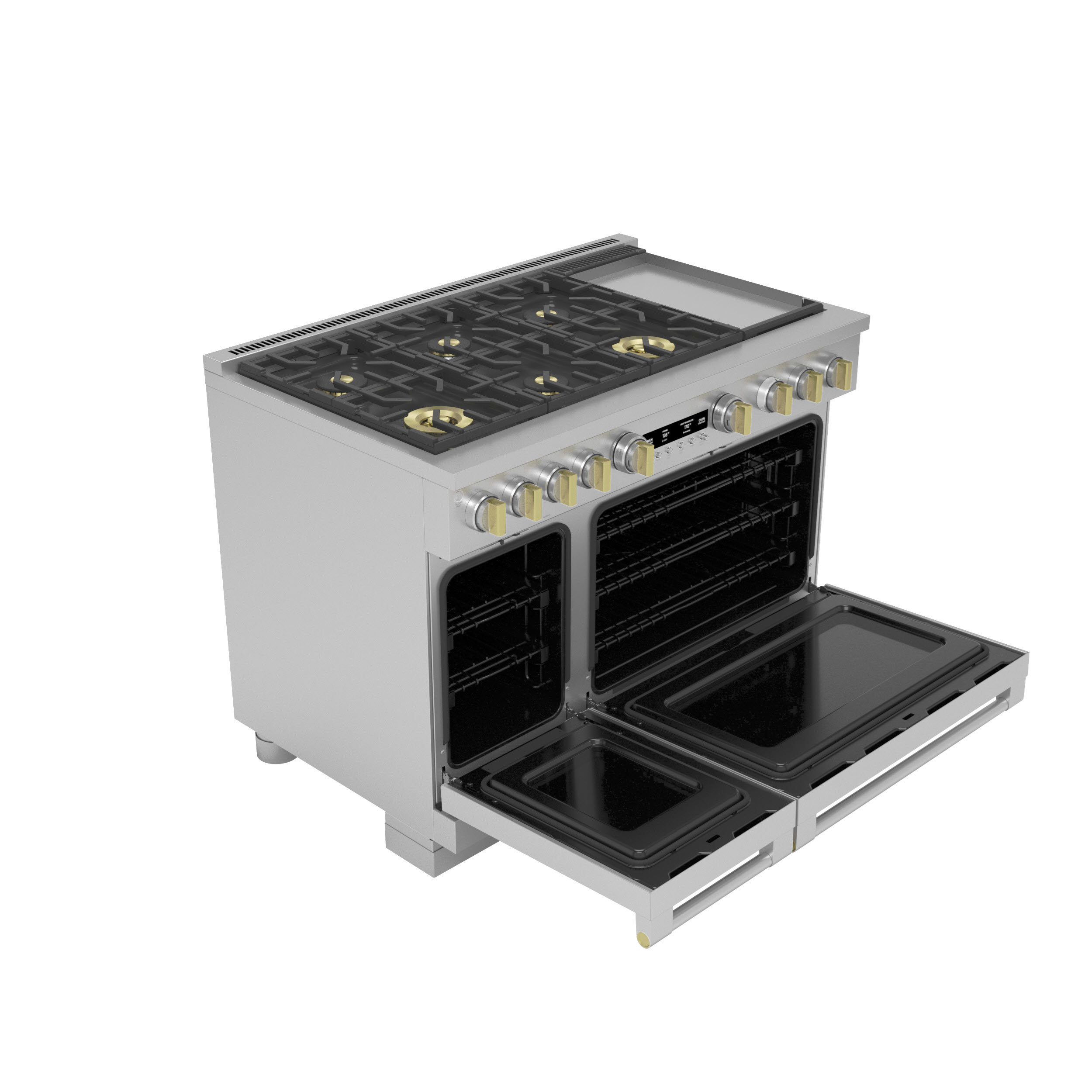

Monogram 48" Dual-Fuel Professional Range with 6 Burners and Griddle

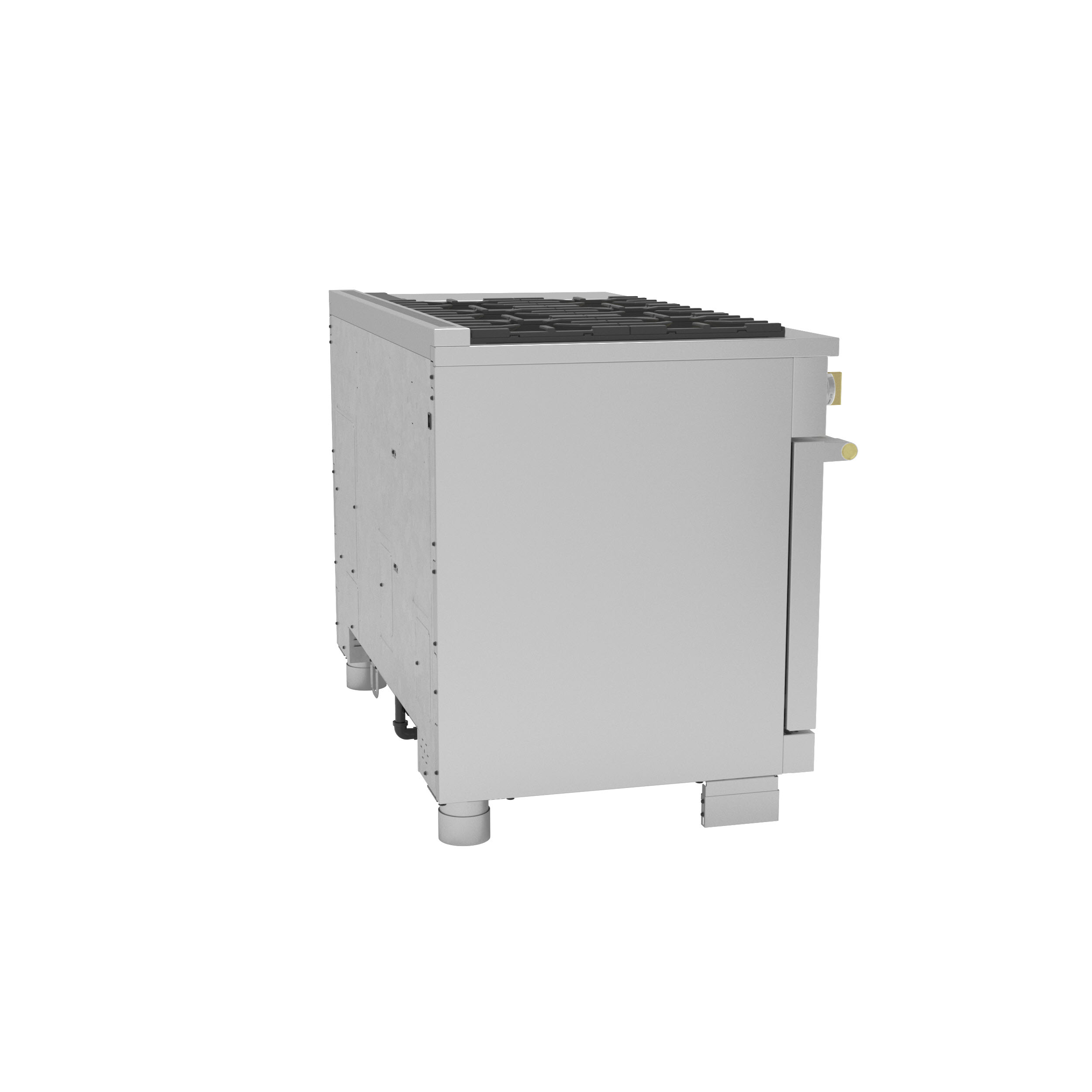

-2021-06-17-03-53-26.jpeg "Model: ZDP486NDTSS | Monogram Monogram 48\" Dual-Fuel Professional Range with 6 Burners and Griddle")
-2021-06-17-03-53-17.jpeg "Model: ZDP486NDTSS | Monogram Monogram 48\" Dual-Fuel Professional Range with 6 Burners and Griddle")
Monogram 48" Dual-Fuel Professional Range with 6 Burners and Griddle
Price
Everyday Price
$15,400.00
Sale Price
$14,000.00
Total Savings
$1,400.00
Extended Service Contracts
Available At...
Regional Distribution Warehouse
Call for Availability

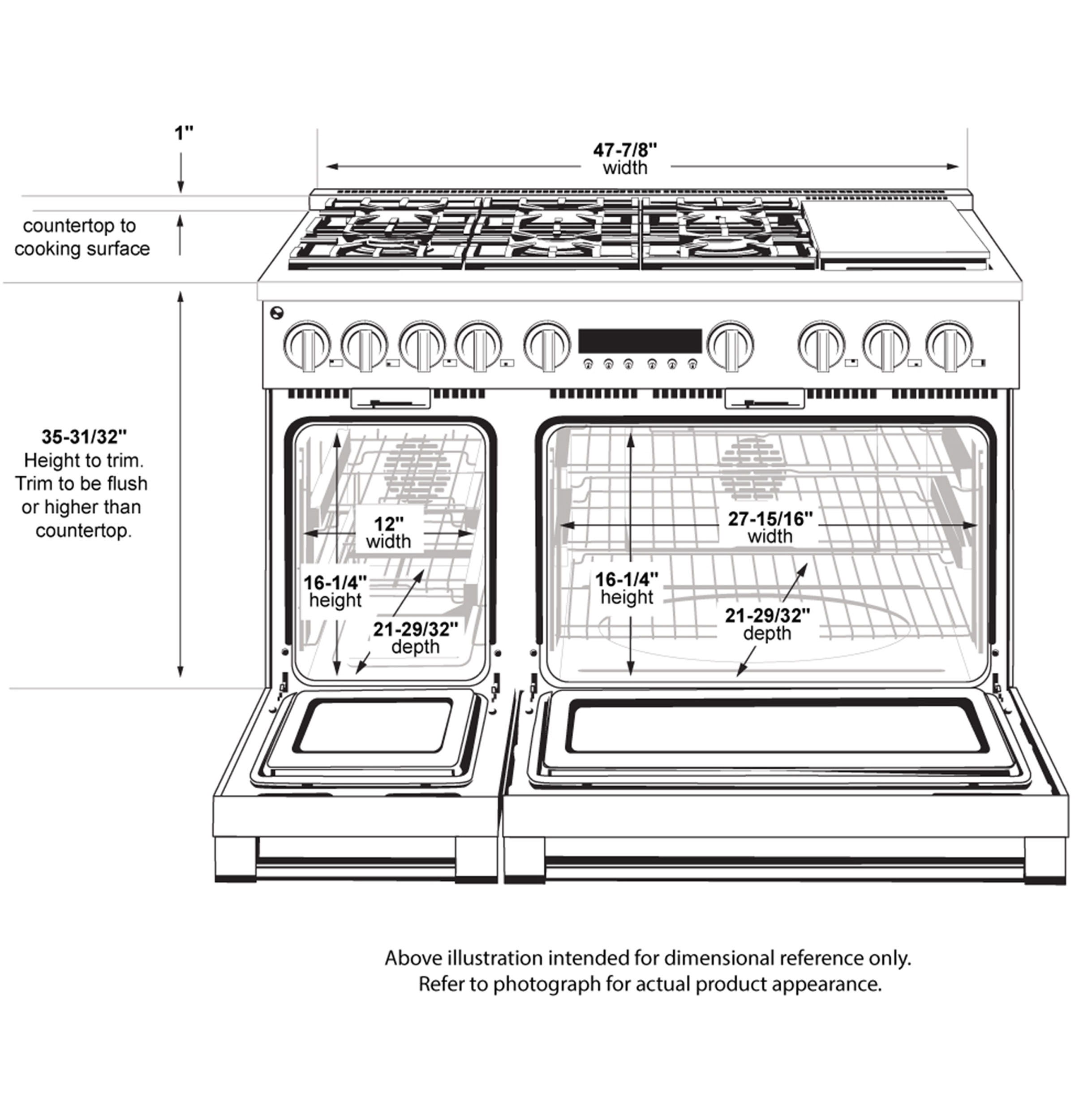

Dimensions
Width: 47 7/8
Height: 35 1/4
Depth: 28 1/2
Color
Stainless Steel
Features

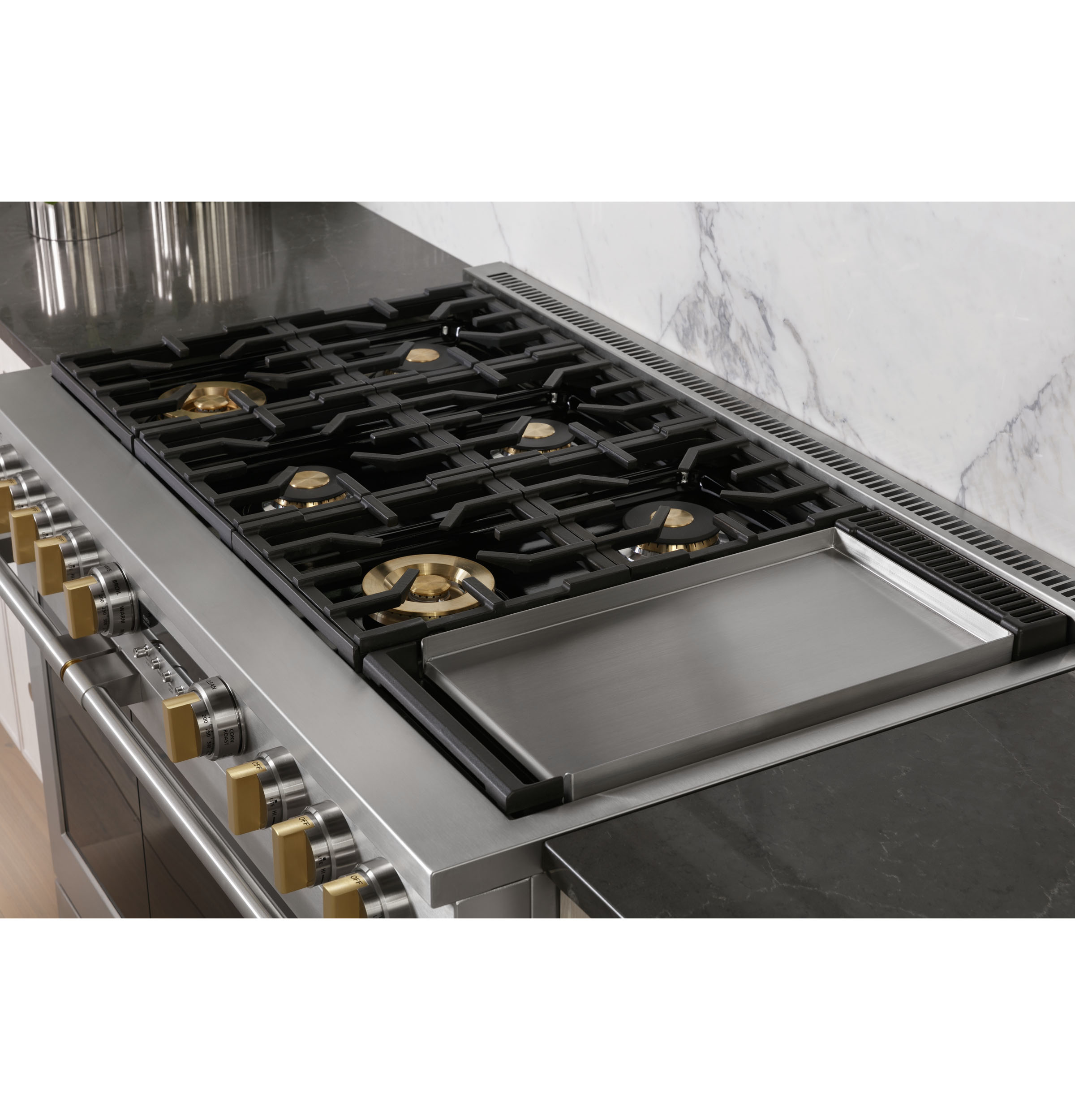

Versatile Gas Burner Configuration
- Delivering exceptional cooking flexibility, the two 23,000-BTU multi-ring brass burners and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame

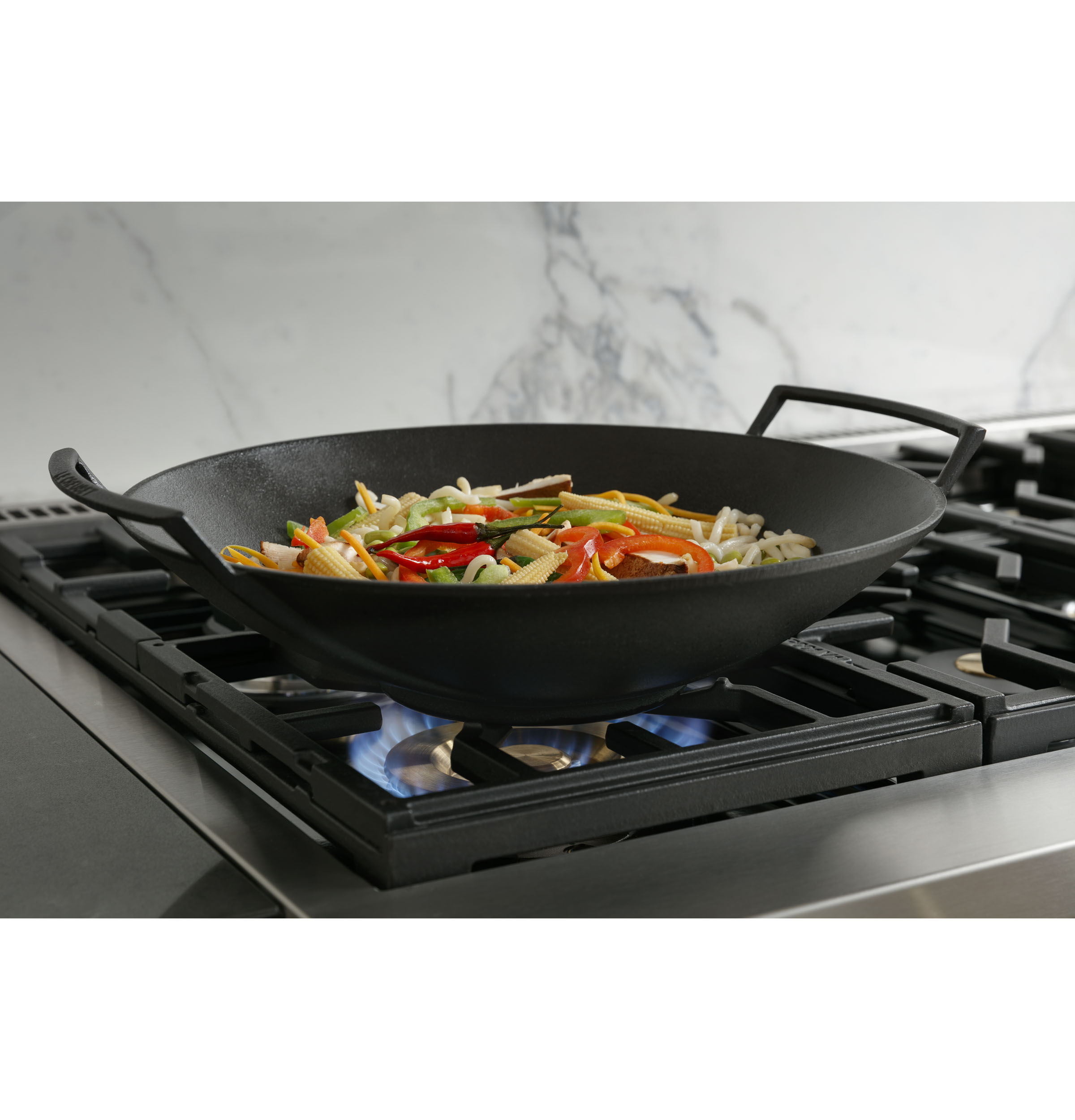

- Reversible grates are easy to clean and complement different culinary techniques, with a flat side for traditional cooking and contoured side that perfectly holds round-bottom woks
- Perfect for a busy lifestyle, built-in WiFi capabilities allow for the remote activation of cooking functions, like preheating the oven, setting timers, activating Chef Connect and more

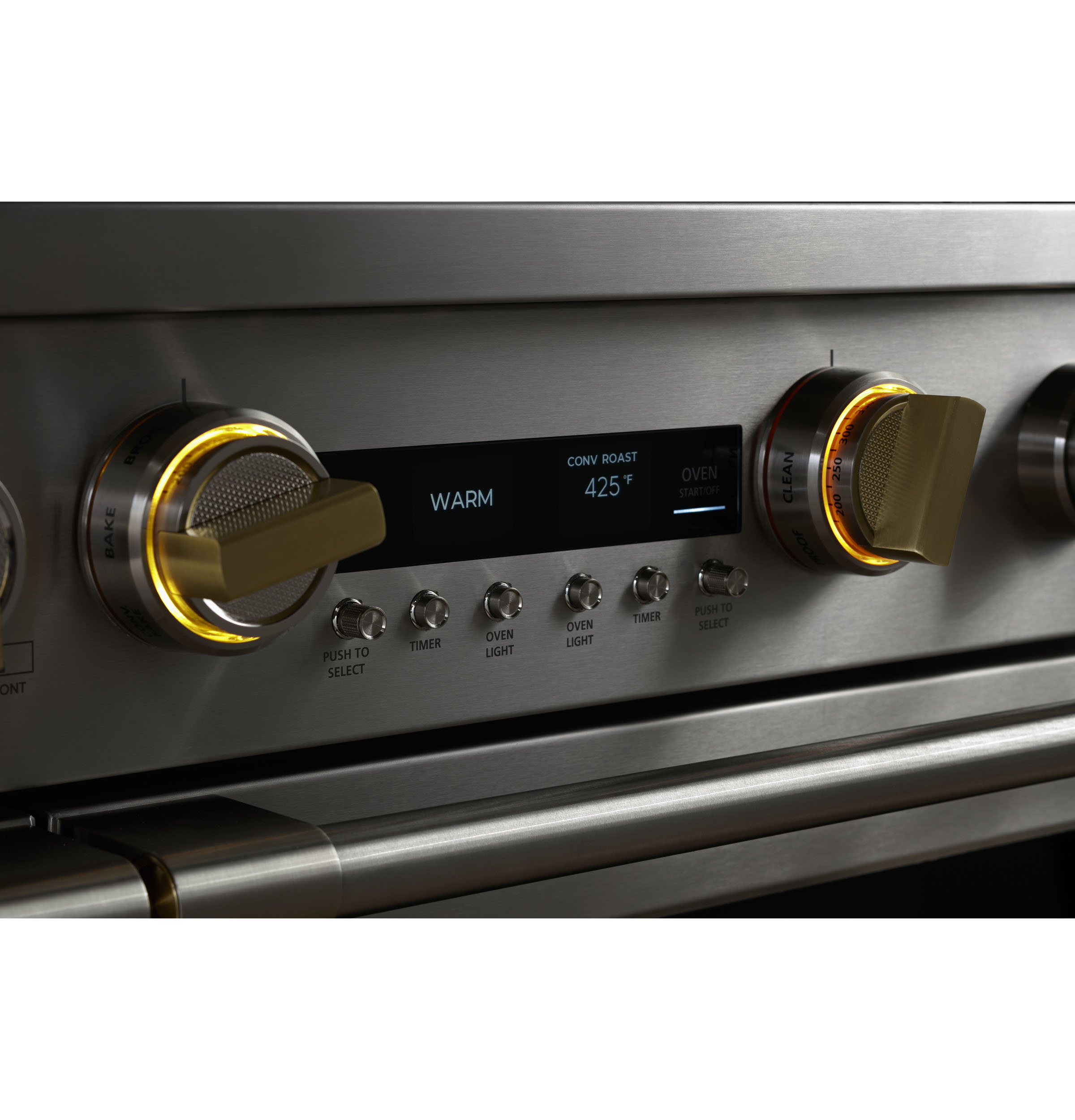

- Functional and stylish, the LCD shows which oven mode is currently in use and other helpful information, like oven temperature, timer and probe temp
- Monogram burners are constructed of 100% brass, embracing the natural thermal properties of this premium quality material. As they are exposed to heat, a natural patina will build up to protect the burners from corrosion and ensure that your brass burners will withstand even the highest temperatures
- Stay completely connected with Chef Connect, the smart and convenient feature that can effortlessly synchronize a range of kitchen items such as surface lights and even the vent when the burners are on
- For an elevated level of luxury, use the SmartHQ™ app to customize the accent lighting color and brightness to perfectly match kitchen décor or dining ambiance
- Delivering a modern approach to customization, the SmartHQ™ app allows for the range knobs to be set in any color you choose, indicating when a burner is on and showing the status of the oven

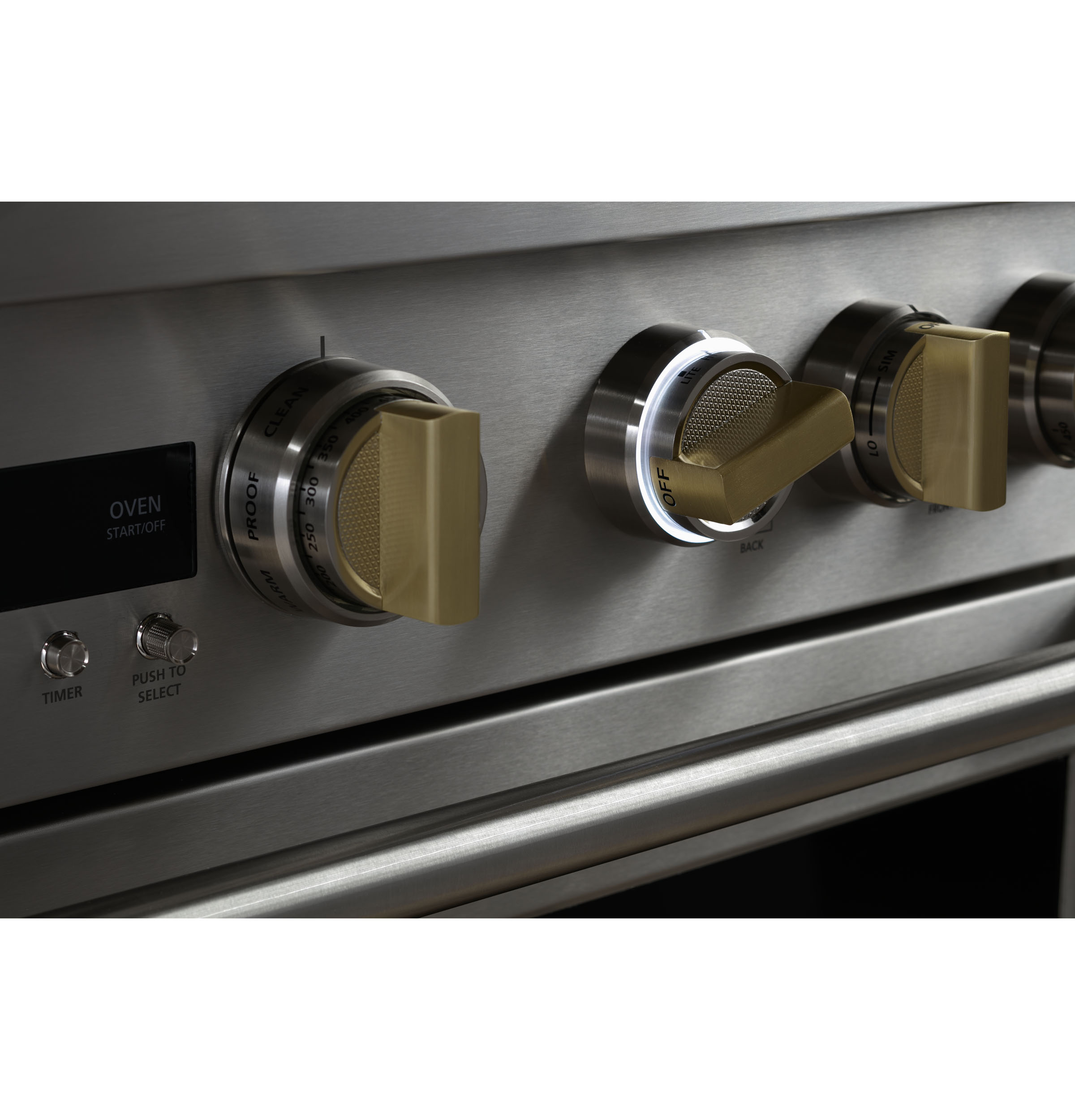

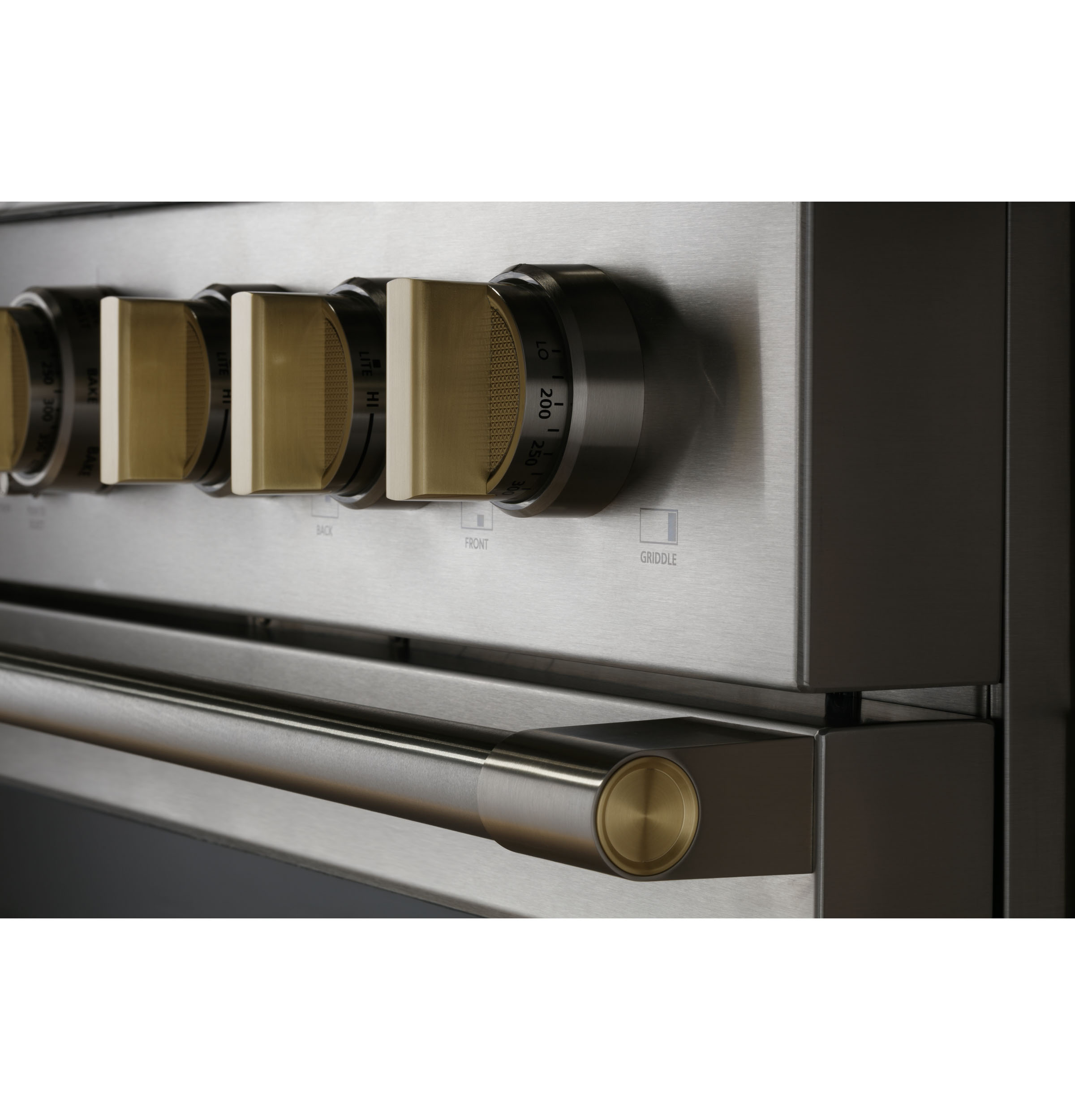

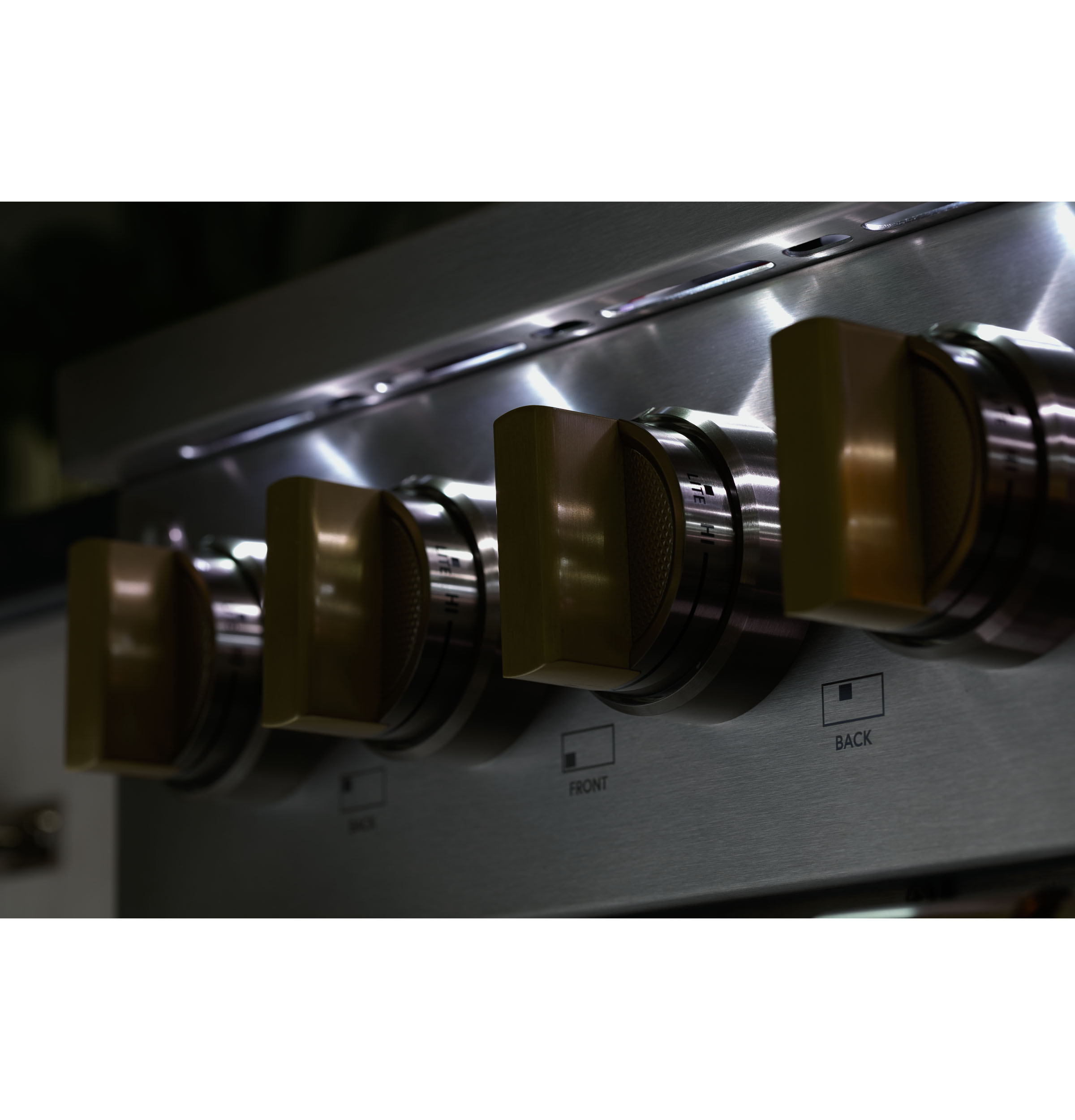

- With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents
- Meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at
- Specially designed, soft-close hinges ensure that the oven door always closes smoothly and quietly for a new level of kitchen refinement
- Self-clean oven racks glide smoothly in and out on stainless steel ball bearings for easy access and are designed to remain in the oven during the self-clean cycle
- Simplify the cooking process with Precision Oven Modes that automatically track progress and make time and temperature adjustments
Product Description
Monogram 48" Dual-Fuel Professional Range with 6 Burners and Griddle
Rebates
Specification
| ACCESSORIES | |
| Air Fry Basket | Optional- JXAFTRAY1VSS |
| 48" Monogram Knob Kit | ZXPR48KKTSS (SS, qty. 11) |
| Optional Backguard | 12" stainless steel backsplash (UX12BS48PSS), 30"-36" adjustable stainless steel backsplash with warming shelf (UXADJB48PSS) |
| High Altitude Kit | Natural Gas: WB28X39726; LP: WB28X39727 |
| Reversible Griddle/Grill Accessory | UXPRRGG |
| Multi Ring Burner Caps (Brass) | Included |
| LP Conversion Kit | Included |
| Multi Ring Burner Caps (Black) | Included |
| APPEARANCE | |
| Toe kick | Included |
| Oven Door Features | Soft Close Door |
| Design Style | Statement Collection |
| Control Knobs | Diecast Metallic (Included), Stainless Steel with Brass Accents |
| Color Appearance | Stainless Steel |
| CAPACITY | |
| Total Capacity (cubic feet) | 8.25 cu ft |
| Capacity (Cu. Ft.) | 5.75 Caterer Oven / 2.5 Everyday Oven |
| FEATURES | |
| Cooking System | Reverse Air Convection, True European Convection |
| Cleaning Time | 3-5 Hours (Both Ovens) |
| Ignition System | Electronic w/Auto Reignition |
| Oven Control Features | 12-Hour Shut-Off Capability, Audible Preheat Signal, Auto Recipe Conversion, Automatic Oven Meat Probe (Both Ovens), Certified Sabbath Mode (* additional purchase required), Chef Connect, Cook Time, C° or F° Programmable, Delay Clean Option (Both Ovens), Probe Mode, Proof Mode (Both Ovens), Remote Enabled, Self & Steam Clean Modes, Timer, WiFi Connect |
| Oven Rack Features | 3 Self-Clean Oven Racks (Caterer Oven), 2 Self-Clean Oven Racks (Everyday Oven), 4 Rack Positions (Everyday Oven), 5 Rack Positions (Caterer Oven), Full-Extension |
| Convection Roasting Rack | Yes |
| Broiler Pan and Grid | 2 |
| Oven Cleaning Type | Self-Clean (Both Ovens), Steam Clean (Both Ovens) |
| Griddle | 18,000-BTU, Stainless Steel and Aluminum Clad, Thermostatically Controlled |
| Connected Capabilities | Bluetooth, Innit |
| 140 Deg. Simmer Burner | All Burners - Adjustable |
| Cooktop Type | 6 Burners, Griddle |
| Fuel Type | Dual Fuel (with natural gas) |
| Indicator Lights | Burner "On" |
| Short Description | 48" Pro Range - Dual Fuel with 6 Burners and Griddle |
| Interior Oven Light | 3 Halogen Lamps (Everyday Oven), 6 Halogen Lamps (Caterer Oven) |
| WiFi Connect | Built-In |
| Extra Low Simmer | All Burners - Adjustable |
| Cooktop Burner Grate Features | Continuous Grates, Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates |
| Control Type | Digital Temperature LCD Display (Both Ovens) with Timer Display |
| Lighting | LED Bullnose Task Lighting |
| Cooking Technology | Convection |
| Oven Features | 4-Pass Bake Element (Everyday Oven), 4-Pass Broil Element (Everyday Oven), 8-Pass Bake Element, 8-Pass Broil Element, Hidden Bake |
| Oven Cooking Modes | Convection Bake Multi-Rack (Both Ovens), Convection Broil Hi/Lo (Both Ovens), Convection Crisp, Convection Roast (Both Ovens), No-Preheat Air Frying (Both Ovens), Precision Cooking Modes, Proof (Both Ovens), Scan-to-Cook, Warming (Both Ovens) |
| Cooktop Burner Type | 2 Sealed, Dual Flame Stacked (Removable Brass Accents), 4 Sealed, Dual Flame Stacked |
| Removable Grease Trough | (1) Beneath Griddle |
| Cooktop Surface | Porcelain-Enamel |
| Stainless Steel Grill / Griddle Covers | 1 |
| Oven Rack Positions (Single or Upper/Lower) | 5 / 4 |
| Self-Clean Oven Door Lock | Automatic |
| POWER / RATINGS | |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (2) 23.0; (2) 18.0; (2) 15.0 |
| Electrical Requirements | 240VAC; 50A |
| Top Burner BTU Rating - LP (000's BTU's) | (2) 21.0; (2) 15.0; (2) 10.0 |
| Convection Wattage | 2500W (Main Oven); 1500W (Companion Oven) |
| Bake/Broil Wattage - Main Oven | 2700/4000W |
| Griddle BTU Rating (000's/BTU) - LP Gas | 16.0 |
| Griddle BTU Rating (000's/BTU) - Natural Gas | 18.0 |
| Bake/Broil Wattage - Companion Oven | 1600/2750W |
| WARRANTY | |
| Parts Warranty | Limited 2-year entire appliance, Limited 5-year gas surface burners, Limited lifetime of oven racks |
| Labor Warranty | Limited 2-year entire appliance |
| Warranty Notes | See written warranty for full details |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 576 lb |
| Height to Cooking Surface (in.) | 35 1/4 to 36 3/4 |
| Cabinet Width | 48 in |
| Approximate Shipping Weight | 672 lb |
| Overall Width | 47.875 in |
| Overall Height | 35.25 in |
| Overall Depth | 28.5 in |
| Height w/Legs Extended - Maximum Height | 36.75 in |
| Height With Legs Retracted | 35.25 in |
